Koike Plasma & CNC Plant

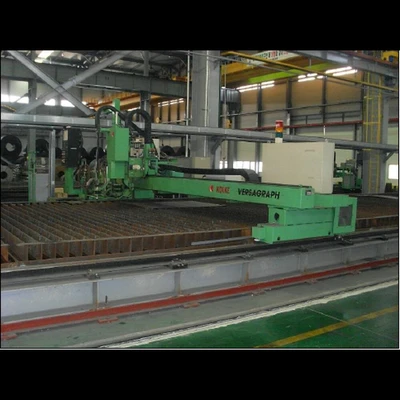

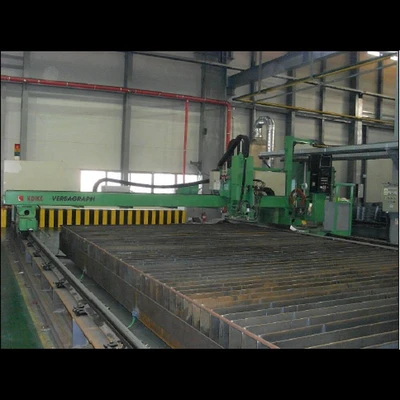

Plasma:
Maker: Koike
Model: Vesagraph-6000DX1 3DP
Operational Panel: Left Side from Front View
Rail Type: 37kg/m
Rail Span: 6,000mm
Rail Length: 42,000mm
Effective Cutting Width: 4,500mm
Effective Cutting Length: 39,000mm
Cutting Speed: 0 to 6,000mm/min
Rapid Speed: 24,000mm/min
Marking Speed: Max 24,000/min
Longitudinal Drive System: Dual-Side Rack and Pinion Drive
Transverse Drive System: Rack and Drive with Motor Carriage
Maker: Koike
Model: Vesagraph-6000DX1 3DP
Operational Panel: Left Side from Front View
Rail Type: 37kg/m
Rail Span: 6,000mm
Rail Length: 42,000mm
Effective Cutting Width: 4,500mm
Effective Cutting Length: 39,000mm
Cutting Speed: 0 to 6,000mm/min
Rapid Speed: 24,000mm/min
Marking Speed: Max 24,000/min
Longitudinal Drive System: Dual-Side Rack and Pinion Drive
Transverse Drive System: Rack and Drive with Motor Carriage

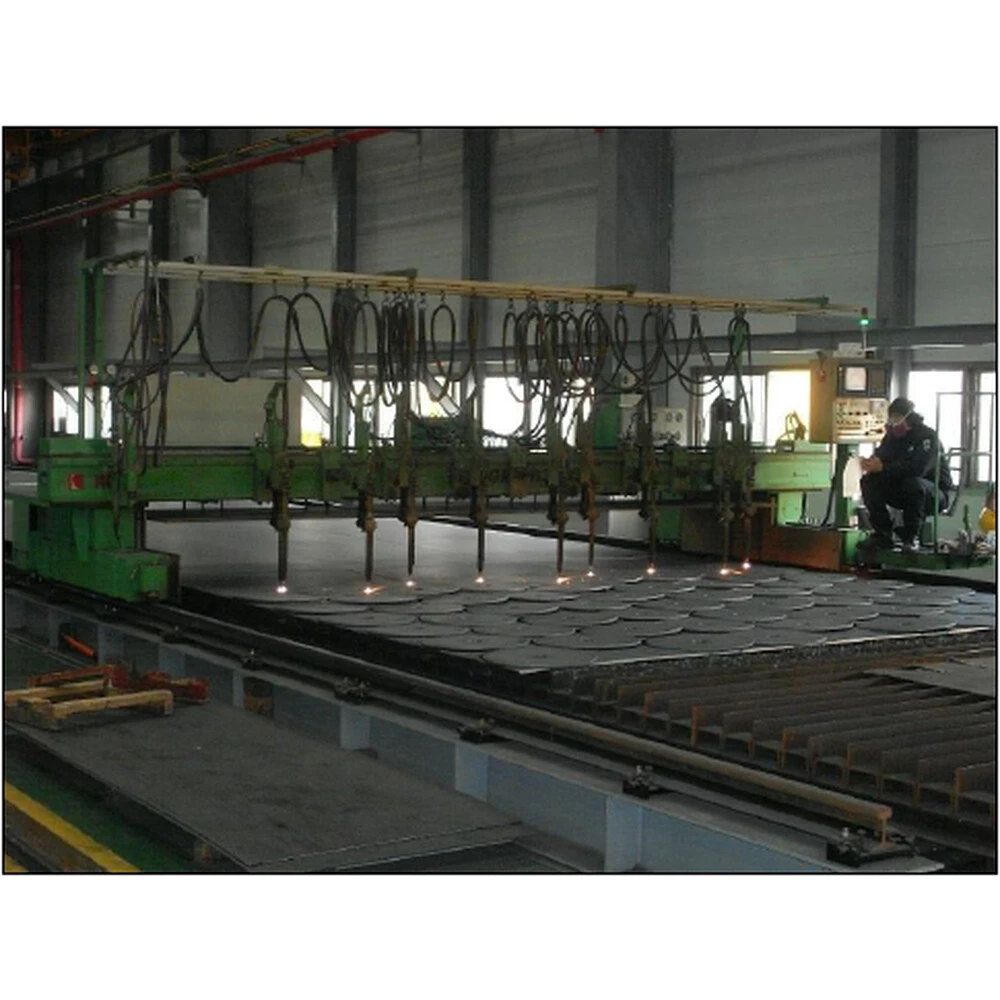

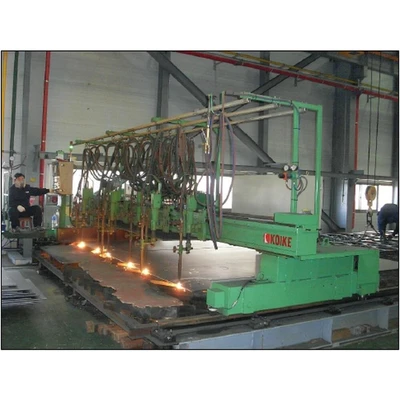

CNC:
Maker: Koike
Model: Leadgraph-5500C
Operational Panel: Left Side from Front View
Rail Type: 37kg/m
Rail Span: 5,500mm
Rail Length: 30,000mm
Effective Cutting Width: 4,500mm
Effective Cutting Length: 27,000mm
Cutting Speed: 100 - 6,000mm/min
Rapid Speed: 18,000mm/min
Marking Speed: 18,000mm/min
Longitudinal Drive System: Dual-Side Rack and Pinion Drive
Transverse Drive System: Rack and Pinion Drive
Maker: Koike
Model: Leadgraph-5500C
Operational Panel: Left Side from Front View
Rail Type: 37kg/m
Rail Span: 5,500mm
Rail Length: 30,000mm
Effective Cutting Width: 4,500mm
Effective Cutting Length: 27,000mm
Cutting Speed: 100 - 6,000mm/min
Rapid Speed: 18,000mm/min
Marking Speed: 18,000mm/min
Longitudinal Drive System: Dual-Side Rack and Pinion Drive
Transverse Drive System: Rack and Pinion Drive

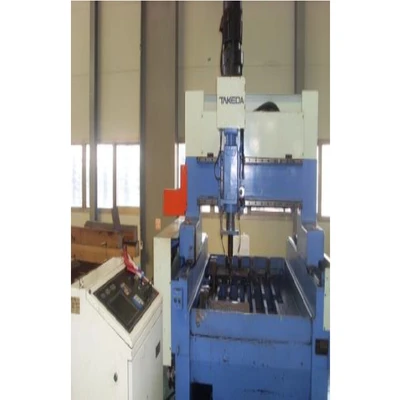

NC Drill M/C:
Model: KTP - 4015
Year: 2011
Capacity: 1,500mm - 3,000mm - 100t
Max Drilling Capacity: ø 50
Control: Touch Screen, Cad File, Interface, Ran Telecomunication
X , Y Shaft Control: AC Servo Motor
Spindle Drive: Hydraulic Control
Electric Power: 3 P x 440V
Material Clamping: 20 pcs
Machining Point: 4 Point
Other: Chip Conveyor
Model: KTP - 4015
Year: 2011
Capacity: 1,500mm - 3,000mm - 100t
Max Drilling Capacity: ø 50
Control: Touch Screen, Cad File, Interface, Ran Telecomunication
X , Y Shaft Control: AC Servo Motor
Spindle Drive: Hydraulic Control
Electric Power: 3 P x 440V
Material Clamping: 20 pcs
Machining Point: 4 Point
Other: Chip Conveyor
NC Drill M/C:
Model: ABP - 1500
Year: 1992
No of Shaft: Single
Hole Cutting: Max ø 32 (SS400)
Capacity: 1,000mm - 1,500mm
Control: Program Input
Machine Dimension: W 1,800 - D 1,300 - H 2,000
Model: ABP - 1500
Year: 1992
No of Shaft: Single
Hole Cutting: Max ø 32 (SS400)
Capacity: 1,000mm - 1,500mm
Control: Program Input
Machine Dimension: W 1,800 - D 1,300 - H 2,000
Corner Shearing M/C
Model: KTS - 250
Year: 2011
Capacity: 120 - 230 - 16t
Power: Approx 80 Ton
Model: KTS - 250
Year: 2011
Capacity: 120 - 230 - 16t
Power: Approx 80 Ton

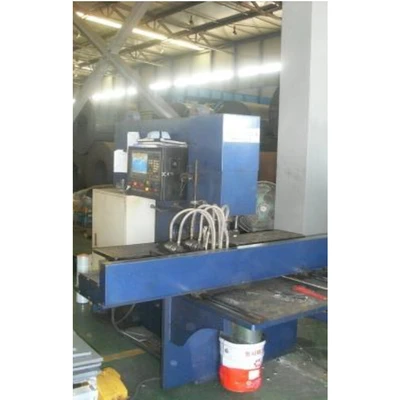

NC Punching:
Model: Koin - P/C100
Year: 2008, 06
Power: 100 Ton
Hole Cutting: Max 25t - ø21 (SS400)
Capacity/Day: 8000 Hole (AT 16mmT)
Machine Dimension: W 2,600 - D 1,600 - H 1,200
Weight: 6 Ton
Model: Koin - P/C100
Year: 2008, 06
Power: 100 Ton
Hole Cutting: Max 25t - ø21 (SS400)
Capacity/Day: 8000 Hole (AT 16mmT)
Machine Dimension: W 2,600 - D 1,600 - H 1,200
Weight: 6 Ton

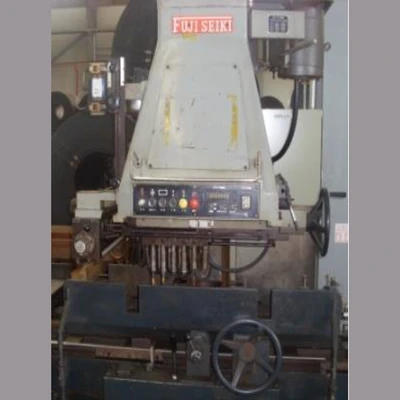

Multi Drill:
Model: SD - 6B
Year: 2008, 06
Shaft: 1 Strand 6 Shaft
Hole Cutting: Max 25t - ø32 (SS400)
Head:
STK: 400MM
Pushing: 400 KG
Pallet: Manual Shift Type
Table: 630mm - 3800mm
Weight: 3.6 Ton
Model: SD - 6B
Year: 2008, 06
Shaft: 1 Strand 6 Shaft
Hole Cutting: Max 25t - ø32 (SS400)
Head:
STK: 400MM
Pushing: 400 KG
STK: 400MM
Pushing: 400 KG
Pallet: Manual Shift Type
Table: 630mm - 3800mm
Weight: 3.6 Ton
Location: Asia
