NEW KYB HYDROSTAR MRH-375

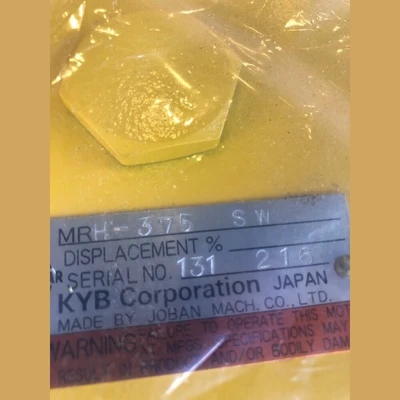

KYB Hydrostar MRH-375 SW
Make: KYB
Model: Hydrostar MRH-375
Condition: New
Heavy Duty Model
LSHT Motor (Low-Speed, High-Torque)
SW
Standard Shaft
SAE 4 Bolt Flange
Standard Shaft
SAE 4 Bolt Flange
General Features:
Speed is Infinitely Variable and Torque Constant Over Entire Speed Range
Excellent Efficiency Allows Precise Positioning of Driven Equipment
Rapid Acceleration, Deceleration and Reversing
Large Main Bearings: Long Life, Allow Heavy Side Load Capacity
B10 Life= 5500 Hours (Average Life of Bearings is 22,000 Hours)
B10 Life= 5500 Hours (Average Life of Bearings is 22,000 Hours)
Several Drain Port Locations to Ease Mounting
Seals Made of VitonÆ
Commonly Used in Fishing to Forestry, Mining to Marine, Recycling to Shredders, as well as Conveyors and Railroad Equipment.
Specifications
Displacement Volume: 377.5 in.³/Rev
Maximum Continuous Pressure: 3570 PSI
Intermittent Peak Pressure: 4000 PSI
Maximum Continuous Back Pressure: 350 PSI
Maximum Continuous Output Torque: 16300 ft-lbs
Starting Torque at 3570 PSI: 12,700 ft-lbs
Maximum Continuous Speed @3000 PSI: 120 RPM
Maximum Continuous Speed @3570 PSI: 60 RPM
Maximum Continuous Power: 300 HP
Moment of Inertia (GD²): 9820 lb-in.²
Maximum Fluid Temperature: 175°F
Shipping Dimensions: 23.6" Diameter x 25.7" Long
Weight: 1150 Lbs
Location: Western Canada
