USED 2022 SLON MAGNETIC SEPARATOR LTD. 1750H

SLon 1750 High-Gradient Magnetic Separator

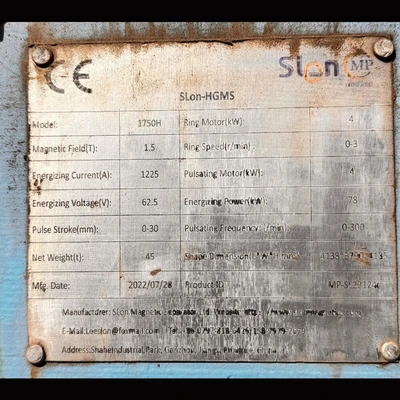

Make: SLon Magnetic Separator Ltd.
Model: 1750H
Type: SLon-HGMS (High-Gradient Magnetic Separator)
Year: 2022/07/28
Condition: Used Condition - Lightly Operated during Initial Commissioning for a Few Weeks - Remains in Excellent Working Condition
Description: The SLon 1750 is a high-gradient magnetic separation system designed for the recovery and separation of magnetic and paramagnetic minerals from finely ground ore slurries. Feed material must be milled to a fine particle size and mixed with water to form a slurry prior to processing. Material is introduced into the separation zone, where a 1.5 Tesla magnetic field selectively captures magnetic and weakly paramagnetic particles. The recovered magnetic fraction is discharged from the rear of the unit, while the non-magnetic tailings are discharged through the bottom outlet, allowing for continuous and efficient separation.
Ore Capacity: 30-50 TPH - Dependent on Particle Size Distribution, Mineralogy, and Slurry Density
Ring Motor: 4kW
Ring Speed: 0-3 RPM
Magnetic Field: 1.5 T
Energizing Current: 1225 Amps
Energizing Voltage: 62.5 Volts
Energizing Power: 78kW
Pulse Stroke: 0-30mm
Pulsating Frequency: 0-300 Cycles/Minute
Pulsating Motor: 4kW
Water Supply Pressure: 0.4MPa
Water Consumption: 100-120m³/Hour
Dimensions: 4138mm x 3790mm x 4185mm
Net Weight: 45 Tons
Location: South West USA
