USED SEPRO MINERAL SYSTEMS FALCON SB400

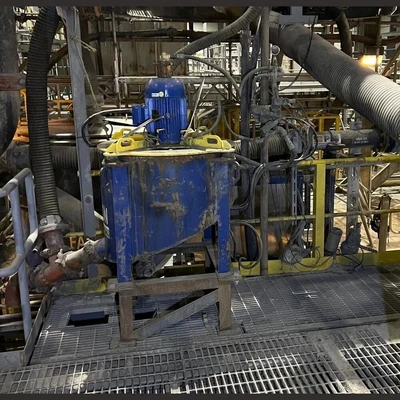

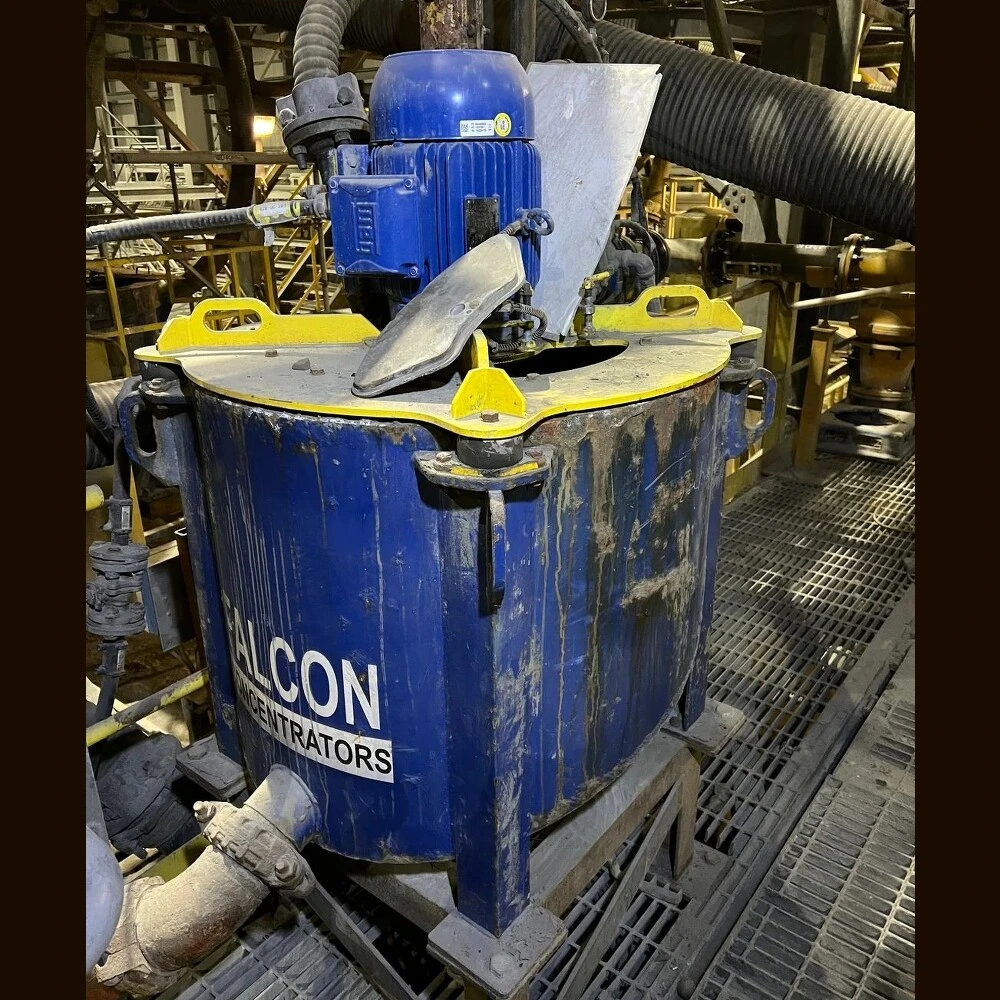

Sepro Falcon SB400 Concentrator
Make: Sepro Mineral Systems
Model: Falcon SB400
Type: Enhanced Gravity Concentrator
Style: Semi-Batch
Condition: Used Condition
General Model Specifications:
Recommended Solids Capacity: 1 – 15 TPH
Max Slurry Capacity: 30 m³/hr.
Concentrating Surface Area: 0.21m² (325in²)
G-Force Range: 100–150G
Recommended Max Feed Particle Size: 2mm
Absolute Max Feed Particle Size: 2.5mm
Max Feed Percent Solids: 65%
Process Water Consumption: 3-5m³/h
Water Supply Pressure: 2-3 bar
Concentrate Slurry Flush Volume: 25 Liters
Concentrate Solids Flush Volume: 1,230cm³

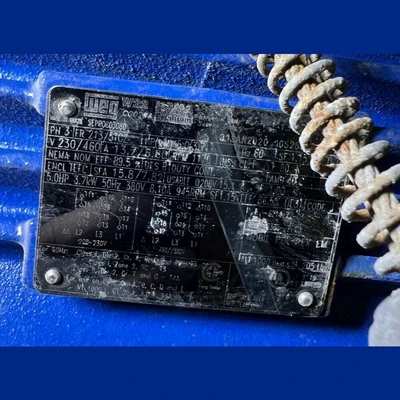

Drive Motor: 5HP (3.7kW)
Voltage: 230/460 Volt (Usable @ 208V)
Current: 13.7/6.86 Amps
Frequency: 60Hz
Sepro Max RPM: 900
Recommended Solids Capacity: 1 – 15 TPH
Max Slurry Capacity: 30 m³/hr.
Concentrating Surface Area: 0.21m² (325in²)
G-Force Range: 100–150G
Recommended Max Feed Particle Size: 2mm
Absolute Max Feed Particle Size: 2.5mm
Max Feed Percent Solids: 65%
Process Water Consumption: 3-5m³/h
Water Supply Pressure: 2-3 bar
Concentrate Slurry Flush Volume: 25 Liters
Concentrate Solids Flush Volume: 1,230cm³
Drive Motor: 5HP (3.7kW)
Voltage: 230/460 Volt (Usable @ 208V)
Current: 13.7/6.86 Amps
Frequency: 60Hz
Sepro Max RPM: 900
View Spec Sheet Below
Overall Dimensions:
Length: 1.0m
Width: 1.02m
Height: 1.43m
Weight: 465kg
Length: 1.0m
Width: 1.02m
Height: 1.43m
Weight: 465kg
Location: Western Canada
