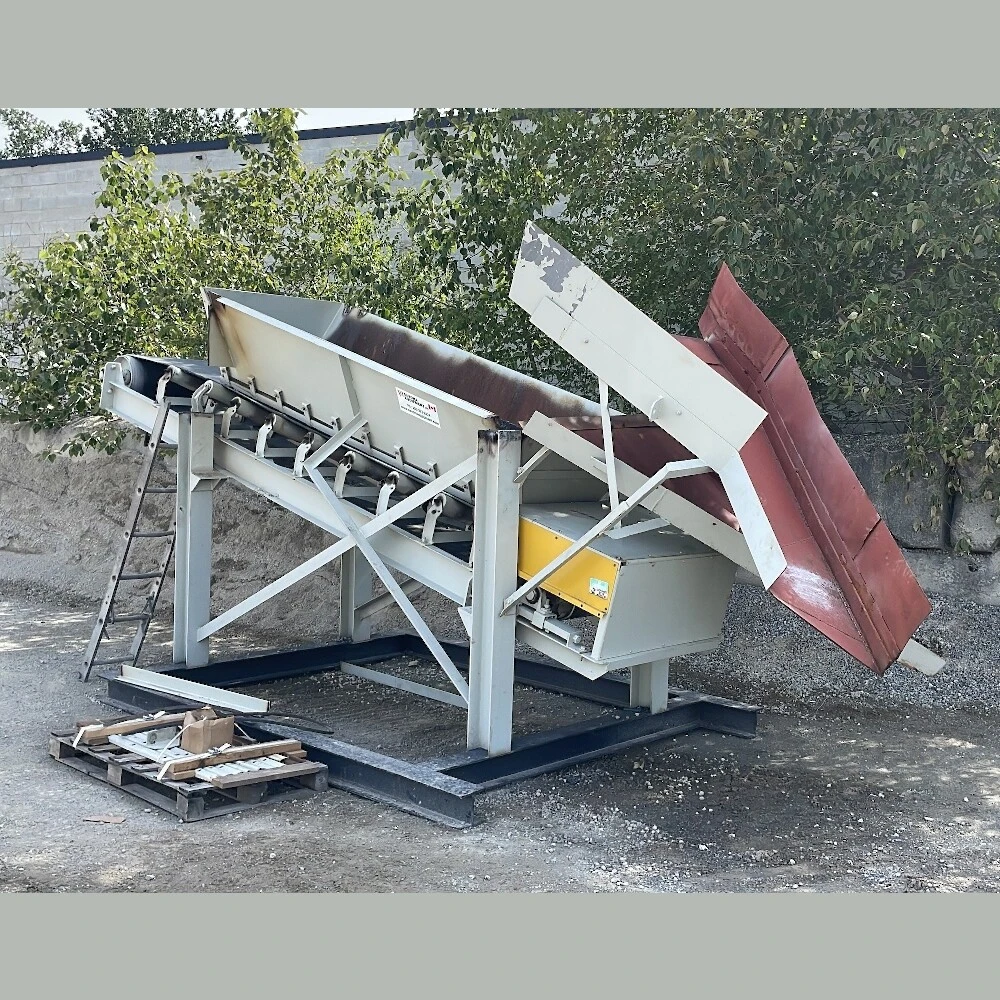

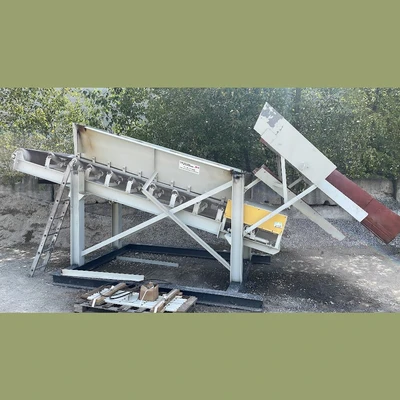

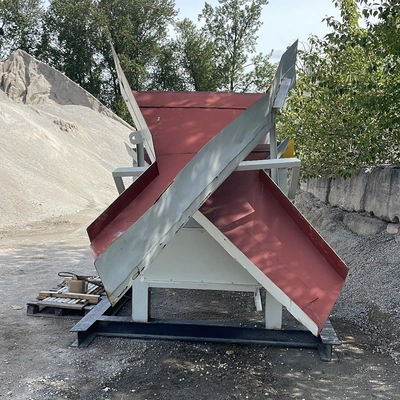

44in x 10ft Hopper Feeder

44in x 10ft Hopper Feeder
Condition: Used
Hopper: 44in Wide x 10ft 4in Long x 24in Deep
Discharge Conveyor:
Size: 30in Wide x 15ft Long
Head Pulley: 12in Dia., Rubber Lagged
Tail Pulley: 10in Dia., Self-Cleaning
Troughing Rollers: 4in Dia., 20°, 16in Spacing
Drive: WEG Electric Motor
Power Output: 5HP
Rotation Speed: 1,760RPM
Voltage: 208-230/460 Volts
Speed Reducer: Dodge Shaft Mount Reducer
Model: TXT325
Ratio: 25:1
Size: 30in Wide x 15ft Long
Head Pulley: 12in Dia., Rubber Lagged
Tail Pulley: 10in Dia., Self-Cleaning
Troughing Rollers: 4in Dia., 20°, 16in Spacing
Drive: WEG Electric Motor
Power Output: 5HP
Rotation Speed: 1,760RPM
Voltage: 208-230/460 Volts
Power Output: 5HP
Rotation Speed: 1,760RPM
Voltage: 208-230/460 Volts
Speed Reducer: Dodge Shaft Mount Reducer
Model: TXT325
Ratio: 25:1
Model: TXT325
Ratio: 25:1
External Discharge Chutes
Mounted on Steel Skid
Location: Western Canada
