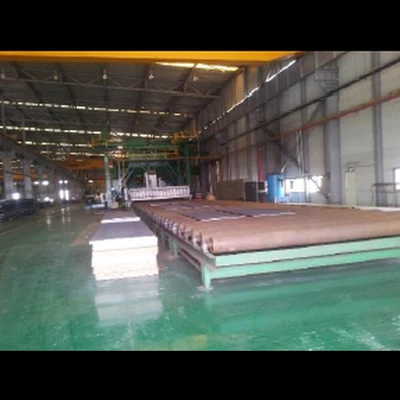

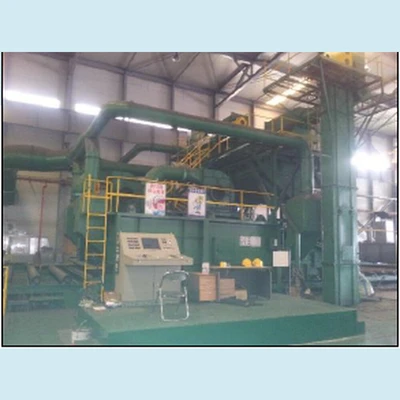

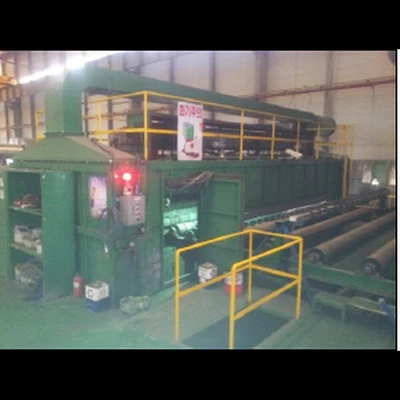

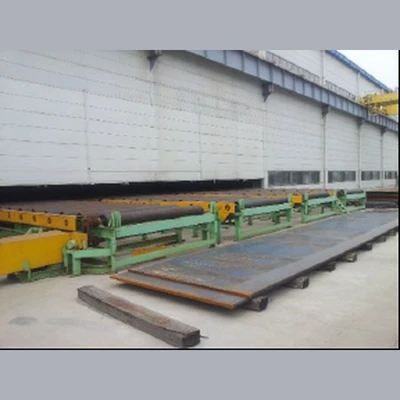

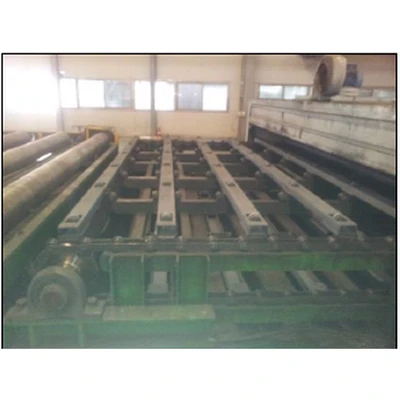

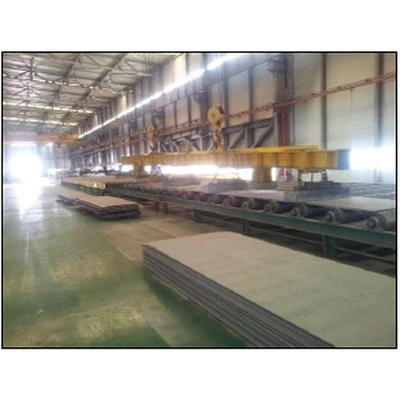

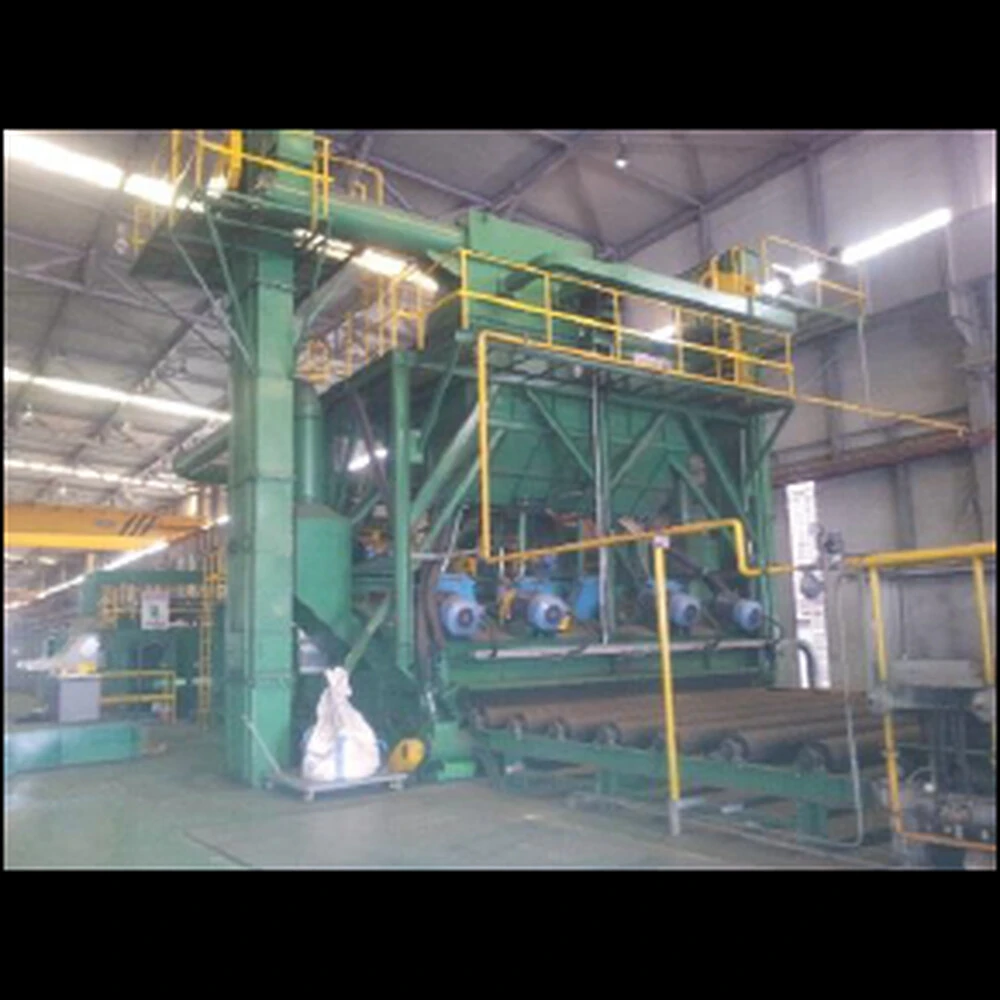

Plate Shot Blasting Plant

Work Range:
Steel Plate:
Width:
Max 5,000mm
Thickness:
6 - 100t
Length:
Max 24,000mm
Weight:
Max 20 Ton/Sheet
Pass Hight
Max 300 (angle, channel ect)
Steel Plate:
Width:
Max 5,000mm
Max 5,000mm
Thickness:
6 - 100t
6 - 100t
Length:
Max 24,000mm
Max 24,000mm
Weight:
Max 20 Ton/Sheet
Max 20 Ton/Sheet
Pass Hight
Max 300 (angle, channel ect)
Max 300 (angle, channel ect)
Feeding Speed:
1 - 7 M/min (Design: 4.0 M/min x 5,000mm x 18,000mm x 15t)
1 - 7 M/min (Design: 4.0 M/min x 5,000mm x 18,000mm x 15t)
Required Basic Blast Results:
Swedish Standard SA 2 1/2 with Near White Metal Surface (Max: 4 M/min Speed)
Swedish Standard SA 2 1/2 with Near White Metal Surface (Max: 4 M/min Speed)
Abrasive:
Cut Wire Shot 0.6 - 1.2mm (Initial Charge Shot 40 Tons)
Cut Wire Shot 0.6 - 1.2mm (Initial Charge Shot 40 Tons)
Painting Thickness:
10 - 30 Micron
10 - 30 Micron
Utility:
Total Horse Power:
1226.5 HP
380V
3PH
60Hz
(919.9kW)
Air Consumption:
9.28m³/min
5KG/cm²
(75 HP)

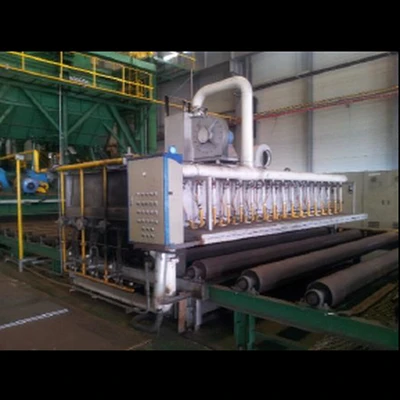

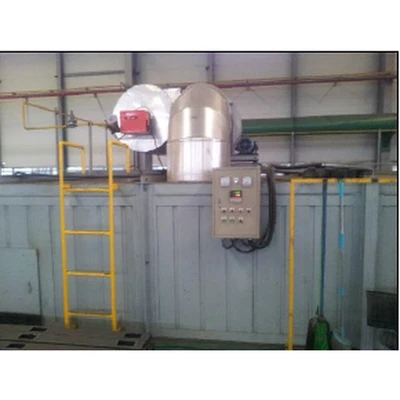

Gas Consumption:
26 - 61m³/HR
3,000 - 5,000 mmH20
Total Horse Power:
1226.5 HP
380V
3PH
60Hz
(919.9kW)
1226.5 HP
380V
3PH
60Hz
(919.9kW)
Air Consumption:
9.28m³/min
5KG/cm²
(75 HP)
9.28m³/min
5KG/cm²
(75 HP)
Gas Consumption:
26 - 61m³/HR
3,000 - 5,000 mmH20
26 - 61m³/HR
3,000 - 5,000 mmH20

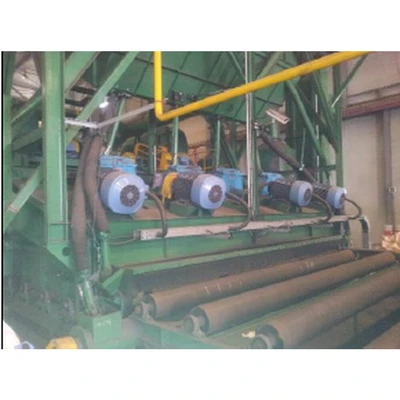

Impeller Unit:
Capacity:
Max 1,000KG/min
Shot Velocity:
76M/sec
Driving Method:
75HP
4P Motor
(Top 4/Bottom 4set)
Capacity:
Max 1,000KG/min
Max 1,000KG/min
Shot Velocity:
76M/sec
76M/sec
Driving Method:
75HP
4P Motor
(Top 4/Bottom 4set)
75HP
4P Motor
(Top 4/Bottom 4set)
Location: Asia
