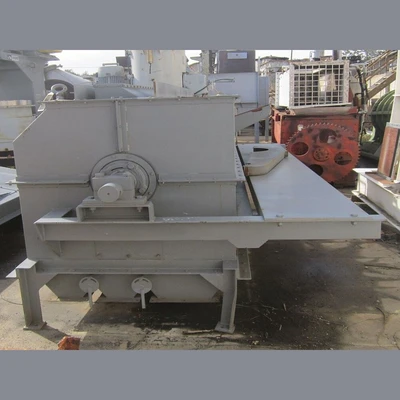

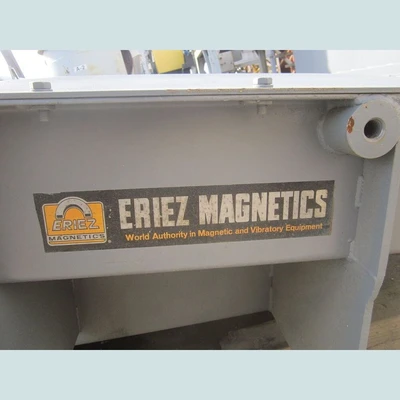

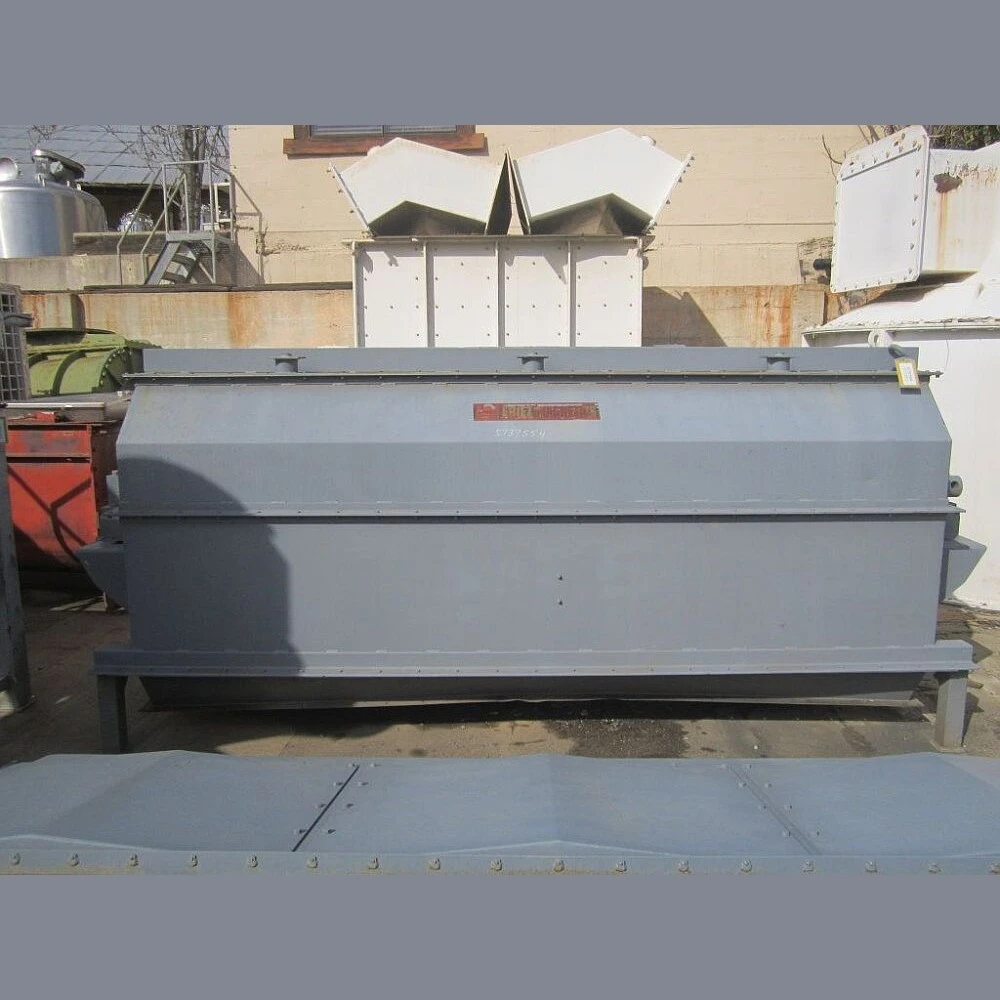

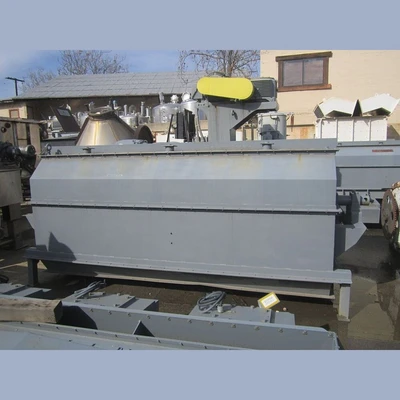

Eriez 36in. x 120in. Magnetic Drum Separator

Eriez 36in. x 120in. Magnetic Drum Separator
Dimensions: 36in. Diameter x 120in. Long
Construction: Stainless Steel

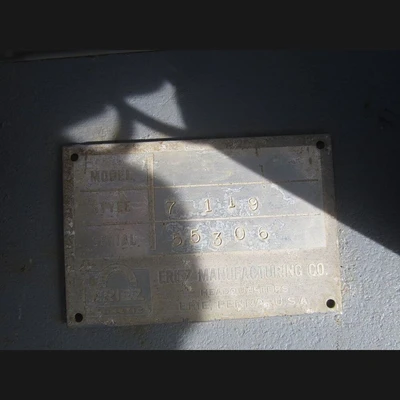

Style: 7119
Dry Drum Type
Condition: Unused
Permanent Magnets

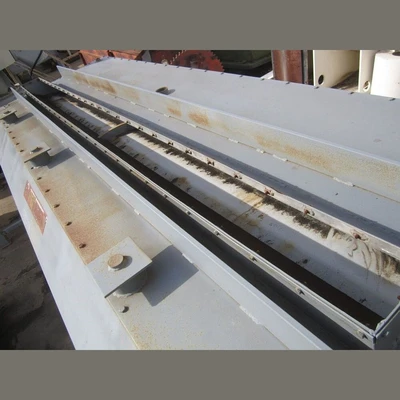

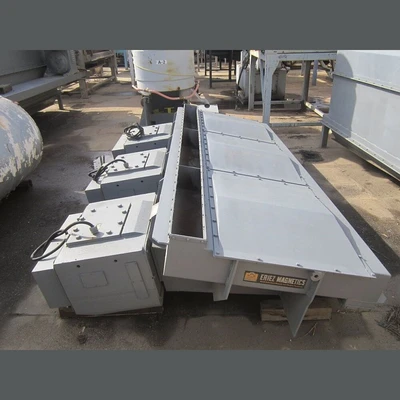

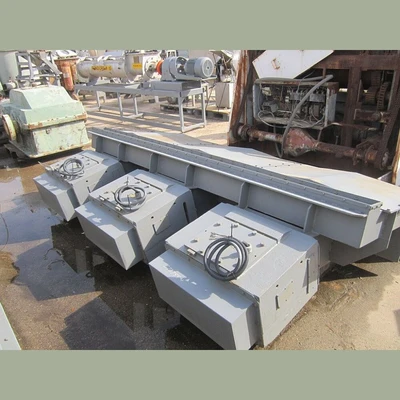

Each Drum is Fed with Eriez Vibratory Feeder
Model: 80B
Model: 80B
120in. Wide with:
Three Vibrators
Stand
Controller
Three Vibrators
Stand
Controller
Rated at 50 to 120 TPH Depending on Material
Each Unit is Rated at Approx. 950 Gauss at 2 inches from the Drum Surface
Approx. 2,000 Gauss on the Drum Surface
Offered Less Motor, Chain and Sprocket
Overall Dimensions:
Drum: 13ft Long x 80in Wide x 66in High - 6,000 Lbs.
Feeder Frame: 89in Long x 34in Wide x 56in High - 400 Lbs.
Feeder: 10ft 4in Long x 75in Wide x 36in High - 7,000 Lbs.
Control Panel: 28in x 24in x 12in - 70 Lbs.
Drum: 13ft Long x 80in Wide x 66in High - 6,000 Lbs.
Feeder Frame: 89in Long x 34in Wide x 56in High - 400 Lbs.
Feeder: 10ft 4in Long x 75in Wide x 36in High - 7,000 Lbs.
Control Panel: 28in x 24in x 12in - 70 Lbs.
Location: Western USA
