USED 2008 ENERPAC RRH-1001

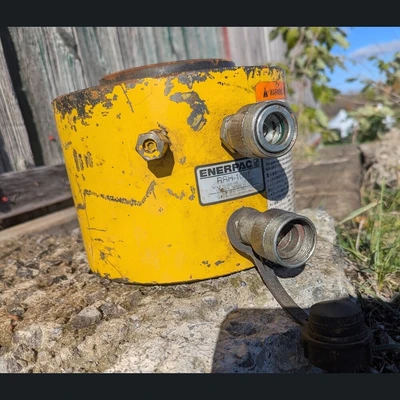

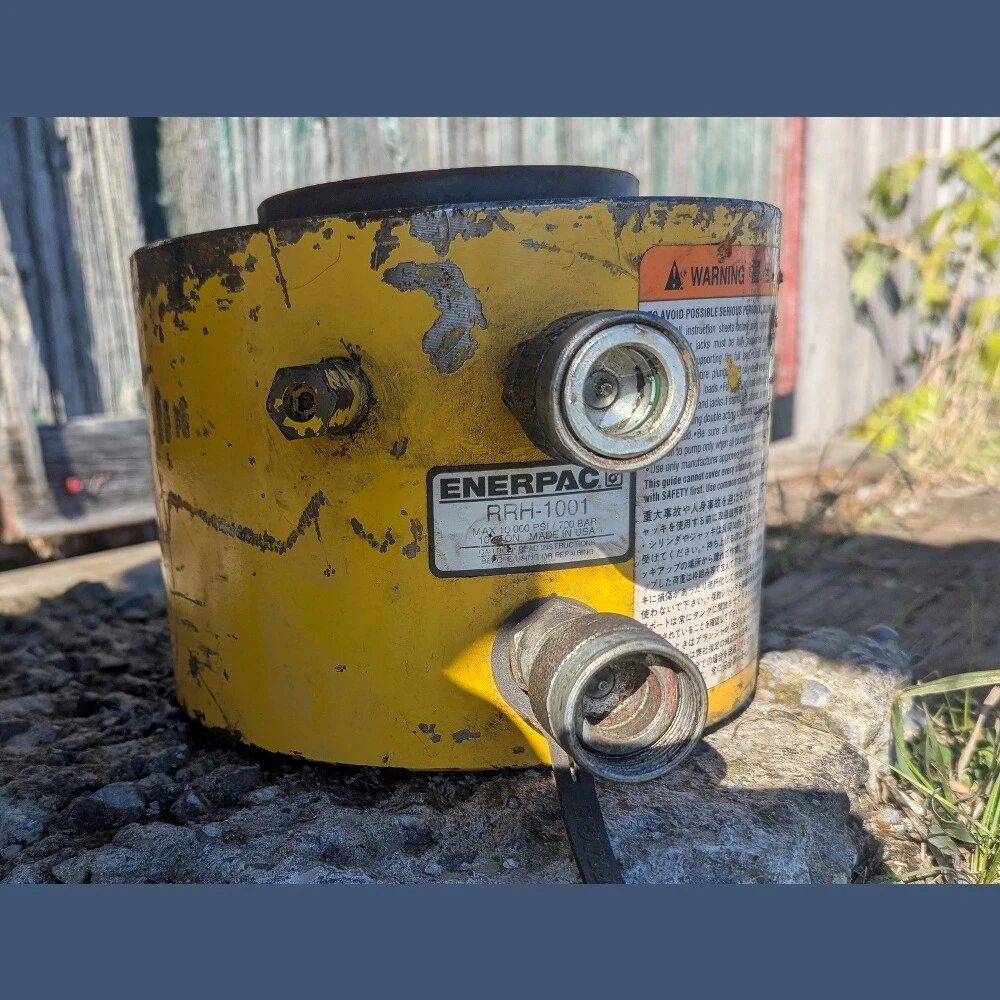

Enerpac RRH-1001 Hydraulic Cylinder
Make: Enerpac
Model: RRH-1001
Type: Hydraulic Cylinder
Style: Double-Acting, Hollow Plunger
Year: 2008
Condition: Used Condition
Capacity: 100 Ton Capacity
Maximum Operating Pressure: 10,000 PSI (700 bar)
Maximum Cylinder Capacity Advance: 103 short tons (931 kN)
Maximum Cylinder Capacity Retract: 68 short tons (612 kN)
Stroke: 1.5 in (38 mm)
Collapsed Height: 6.5 in (165 mm)
Extended Height: 8 in (203 mm)
Center Hole Diameter: 3.13 in (79,2 mm)
Return Type: Double-Acting, Hydraulic Return
Plunger Type: Hollow
Material: Steel
Cylinder Effective Area Advance: 20.63 in² (133.0 cm²)
Cylinder Effective Area Retract: 13.54 in² (87.4 cm²)
Oil Capacity Advance: 30.94 in³ (505 cm³)
Oil Capacity Retract: 20.32 in³ (333 cm³)
Surface Treatment: Paint
Coupler: CR400 Coupler
Weight: 85 lbs. (33 kg)
Location: Central Canada
