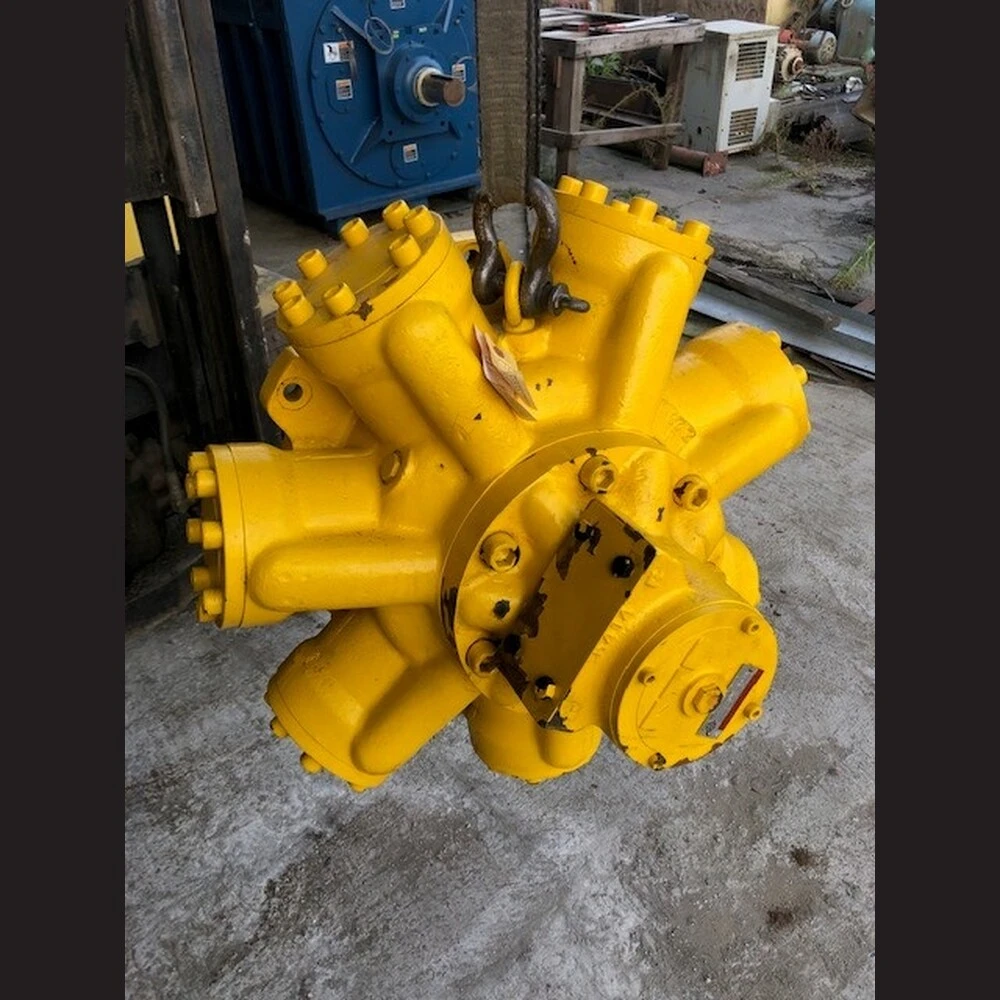

NEW KYB HYDROSTAR MRH-190

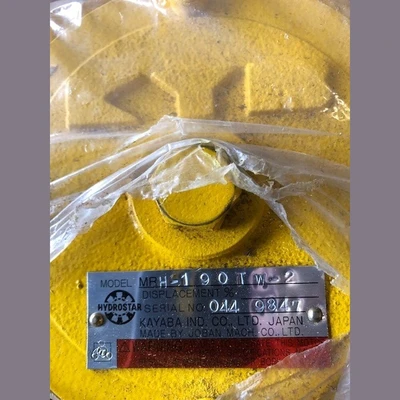

KYB Hydrostar MRH-190 TW-2
Make: KYB
Model: Hydrostar MRH-190
Condition: New
Heavy Duty Model
LSHT Motor (Low-Speed, High-Torque)
TW-2

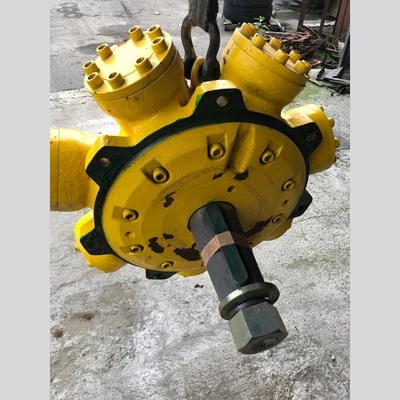

T-Type Shaft
Tapered and Keyed Shaft
SAE 4 Bolt Flange
T-Type Shaft
Tapered and Keyed Shaft
SAE 4 Bolt Flange
General Features:
Speed is Infinitely Variable and Torque Constant Over Entire Speed Range
Excellent Efficiency Allows Precise Positioning of Driven Equipment
Rapid Acceleration, Deceleration and Reversing
Large Main Bearings: Long Life, Allow Heavy Side Load Capacity
B10 Life= 30,000 Hours (Average Life of Bearings is 120,000 Hours)
B10 Life= 30,000 Hours (Average Life of Bearings is 120,000 Hours)
Several Drain Port Locations to Ease Mounting
Seals Made of VitonÆ
Commonly Used in Fishing to Forestry, Mining to Marine, Recycling to Shredders, as well as Conveyors and Railroad Equipment.
Specifications
Displacement volume: 191.6 in.³/Rev
Maximum continuous pressure: 3570 PSI
Intermittent peak pressure: 4000 PSI
Maximum continuous back pressure: 350 PSI
Maximum intermittent back pressure: 1000 PSI
Maximum continuous output torque: 8575 ft-lbs
Starting torque at 3570 PSI: 7260 ft-lbs
Maximum continuous speed: 175 RPM
Maximum continuous power: 230 HP
Moment of inertia (GD²): 2655 lb-in.²
Maximum fluid temperature: 175°F
Shipping Dimensions: 18" Diameter x 23.5" Long
Weight: 617 Lbs (Dry)
Location: Western Canada
