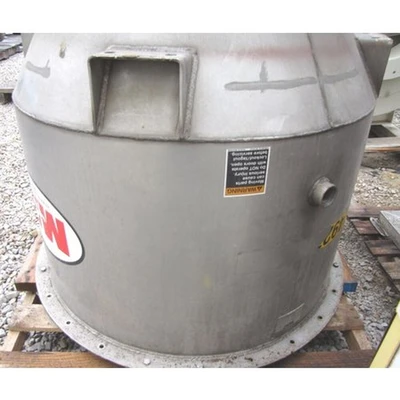

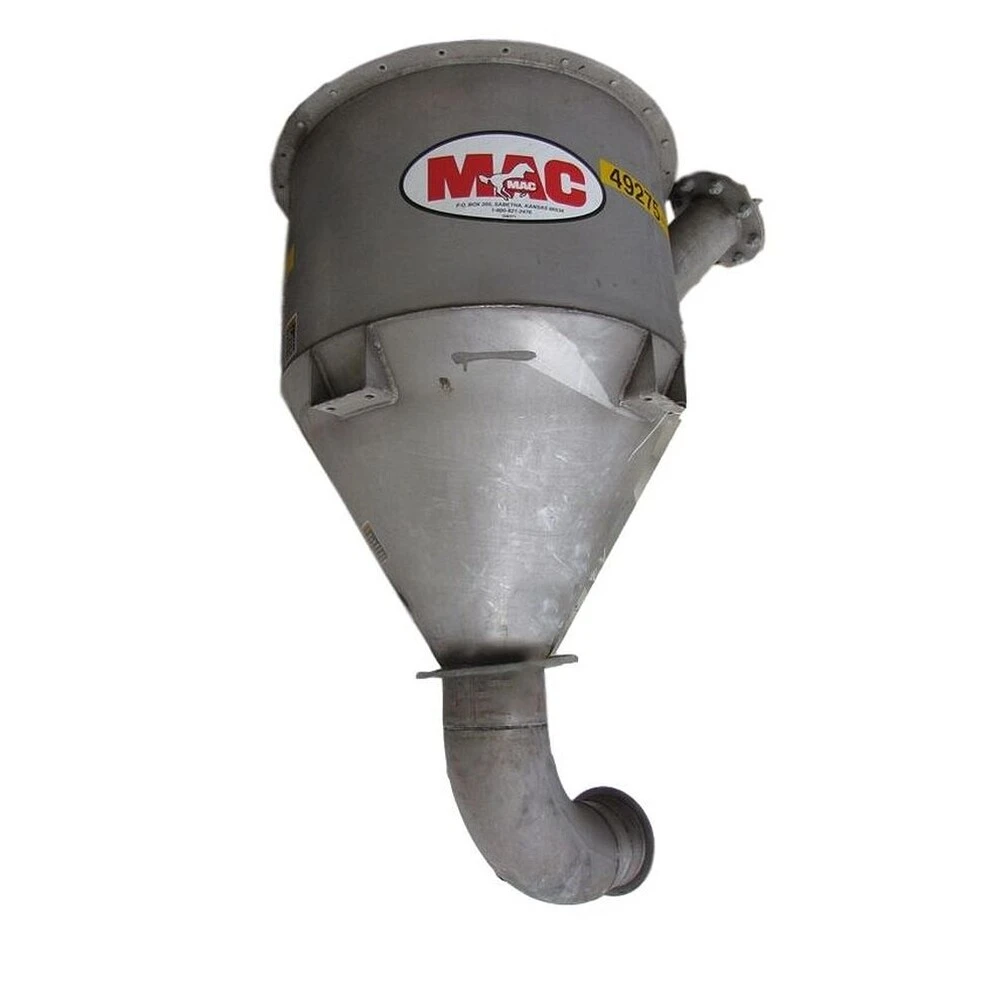

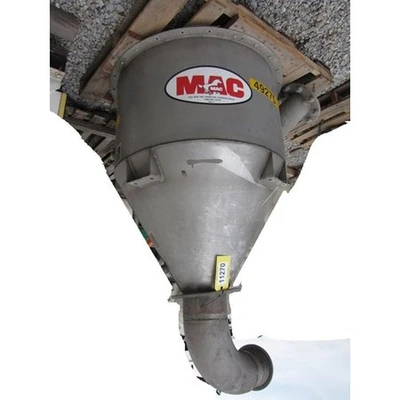

Mac 18 cu. ft. Stainless Steel Hopper

Construction:
1/4 In. Stainless Steel Hopper.
Flanged Top.
Discharges into an 8 In. Ø Long Radius 90°.
Elbow with Slip-on Flange.
1/4 In. Stainless Steel Hopper.
Flanged Top.
Discharges into an 8 In. Ø Long Radius 90°.
Elbow with Slip-on Flange.
Four Mounting Brackets at top of Cone.
(2) 1 1/2 In. NPT Side Ports For Level Indicators
6 In. Side Port For Feed or Venting with Boleted Cover.
Hopper Dimension: 3 Ft. Ø, 62 In. From Top Of Hopper To Lateral Centerline Of Discharge.
