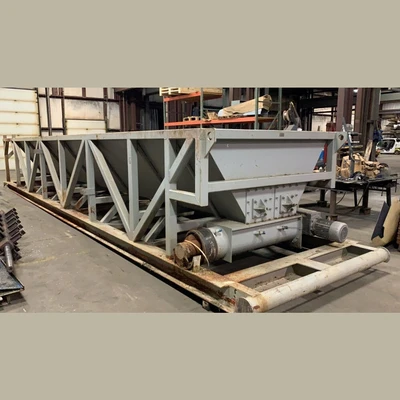

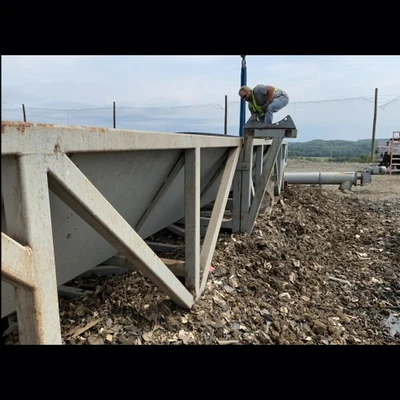

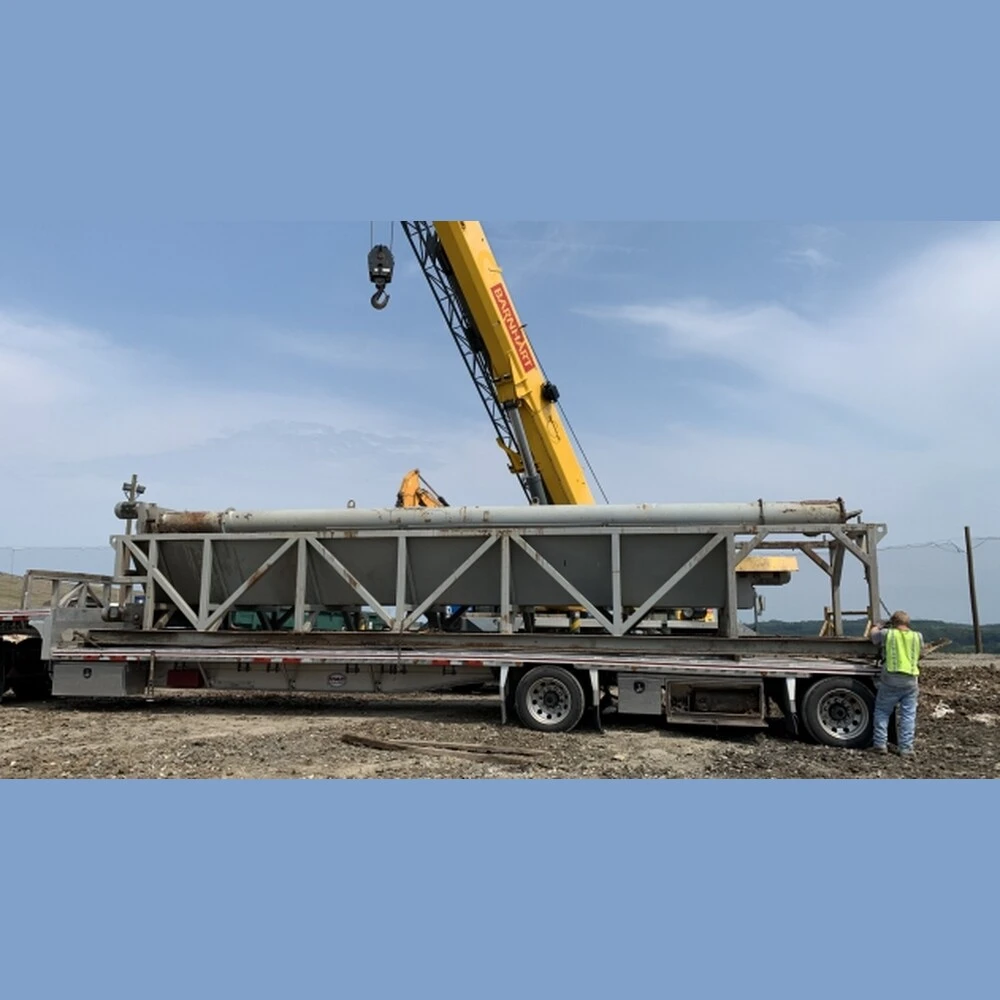

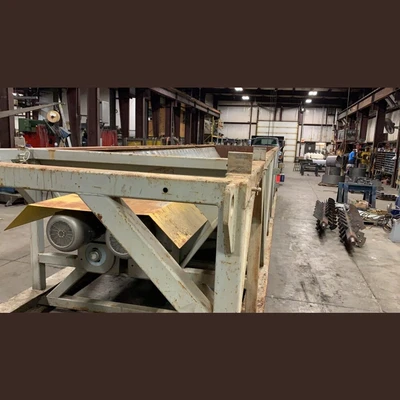

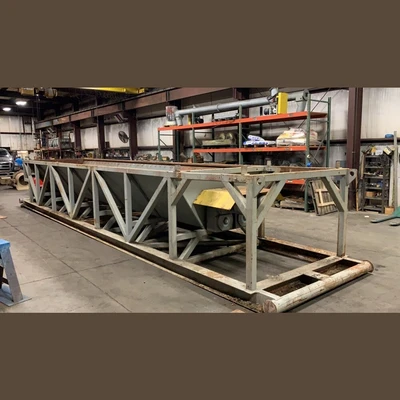

45yd³ Twin Screw Live Bottom Bin

45yd³ Twin Screw Live Bottom Bin
Size:
Length: 32ft
Width: 7ft
Height: 5.5ft
Length: 32ft
Width: 7ft
Height: 5.5ft
Volume: 45yd³
Year: 2014
Condition: Used, Reported in Good Condition
Previously Used for Liquid Waste Solidification
Previously Used for Liquid Waste Solidification
Liner: Polyurethane Type Protective Material
Material: Sludge (Dirt, Silt, Water, Vegetable/Petrol-Based Lubes)
Density: Dry Dirt to Water
Capacity: up to 100 TPH
Incline Screw Feed: Screw 16in OD x 16in Pitch on 6in Pipe; Carbon Steel
Screw Diameter:16 in
Inlet to Discharge Length: 34.25ft
Conveyor Angle: 12°-15°
Inlet: 12in x 12in Square
Outlet: 16in x 16in Square
Motor: Nord 15HP, 30 RPM, Class 2 SC drive
Gear Box: Nord Gear Corp
Model: SK 6382 A2B-160 M/4
Ratio: 59.66
Torque: 31,878 in-lbs
Speed: 30 RPM (Speed Adjusted to Meet Demand)
Screw Diameter:16 in
Inlet to Discharge Length: 34.25ft
Conveyor Angle: 12°-15°
Inlet: 12in x 12in Square
Outlet: 16in x 16in Square
Motor: Nord 15HP, 30 RPM, Class 2 SC drive
Gear Box: Nord Gear Corp
Model: SK 6382 A2B-160 M/4
Ratio: 59.66
Torque: 31,878 in-lbs
Speed: 30 RPM (Speed Adjusted to Meet Demand)

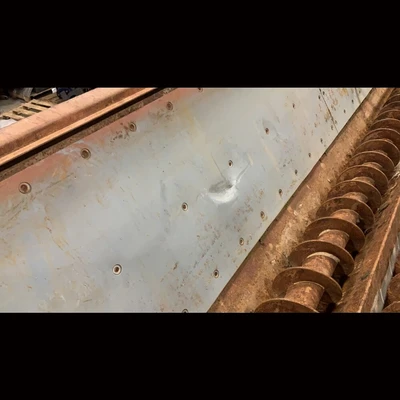

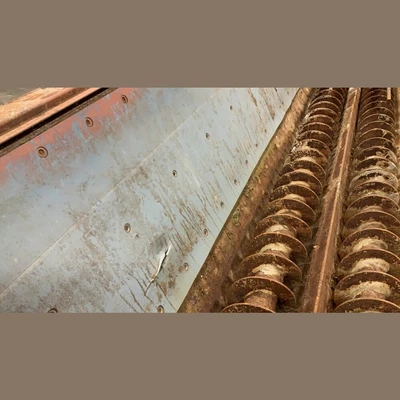

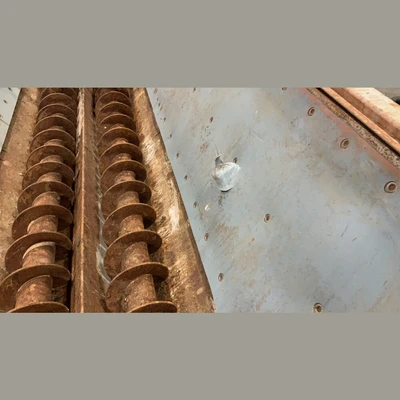

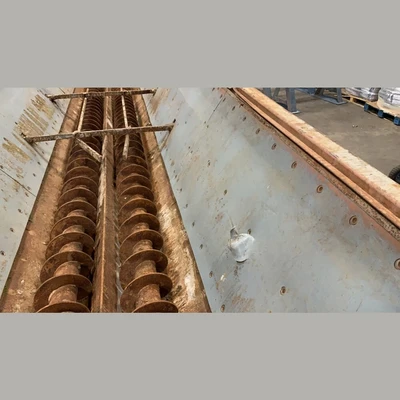

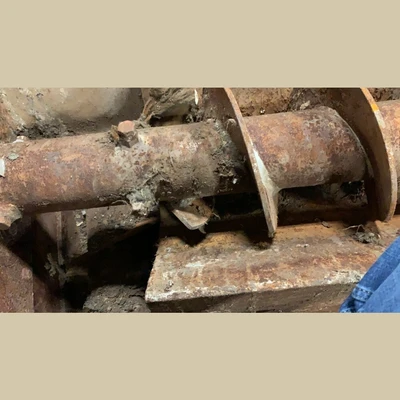

Sludge Screw: (2) 12in OD x 8in Pitch for Exit End of Screw and 6in Pitch on Lead off Screw on 6in Pipe; Carbon Steel
Sludge Screw Motor: (2) Siemens 15HP, 1800 RPM, 3-Phase
Sludge Screw Gear Box: (2) Nord Gear Corp
Model: SK 7382SC-160 M/4
Ratio: 78.81
Torque: 42,110 in-lbs
Speed: 22 RPM  (Speed Adjusted to Meet Demand)
Sludge Screw Motor: (2) Siemens 15HP, 1800 RPM, 3-Phase
Sludge Screw Gear Box: (2) Nord Gear Corp
Model: SK 7382SC-160 M/4
Ratio: 78.81
Torque: 42,110 in-lbs
Speed: 22 RPM  (Speed Adjusted to Meet Demand)
Cross Screw 12in OD x 12in Pitch on 6in Pipe; Carbon Steel
Cross Screw Motor: 7.5HP, 3-Phase
Gear Box: Nord Gear Corp
Model: SK 9042.1SCP-132 S/4 CUS
Ratio: 40.54
Torque: 11,039 in-lbs
Speed: 43 RPM (Speed Adjusted to Meet Demand)
Cross Screw Motor: 7.5HP, 3-Phase
Gear Box: Nord Gear Corp
Model: SK 9042.1SCP-132 S/4 CUS
Ratio: 40.54
Torque: 11,039 in-lbs
Speed: 43 RPM (Speed Adjusted to Meet Demand)
Location: Eastern USA
