USED KNELSON KC-MD30

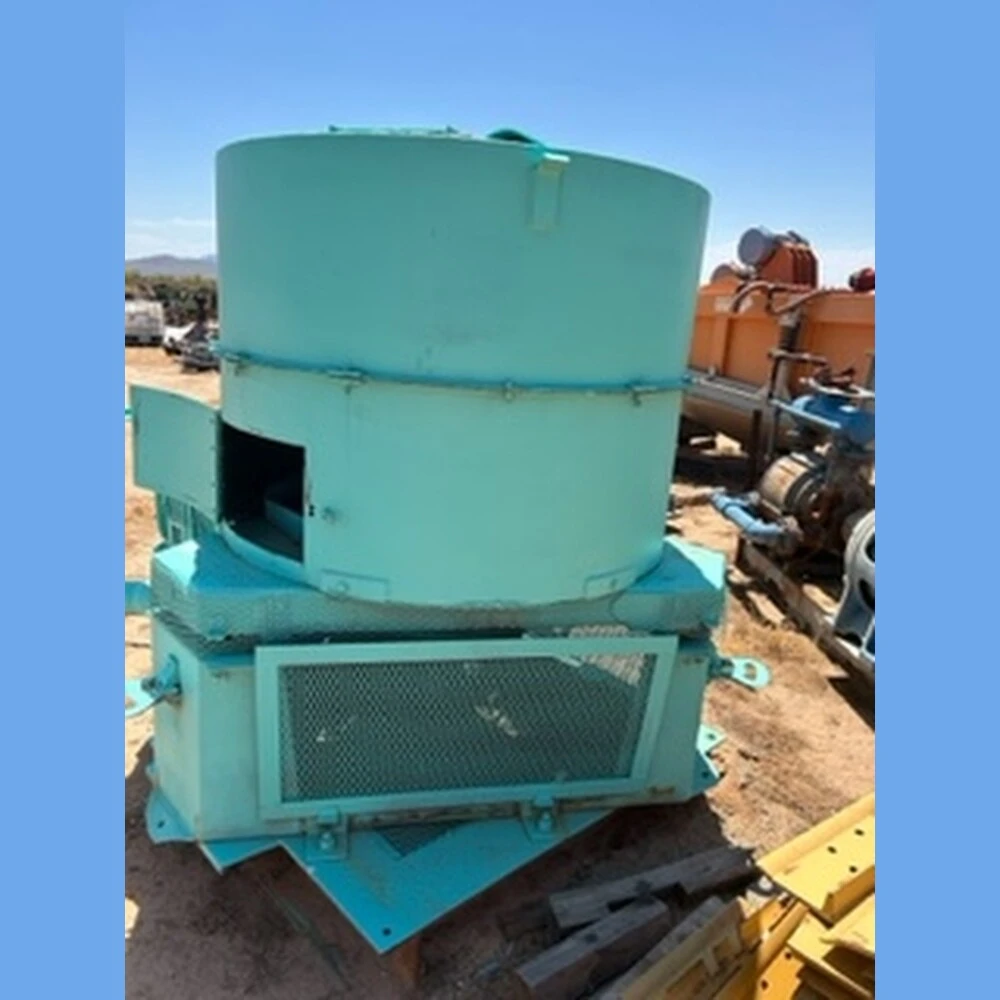

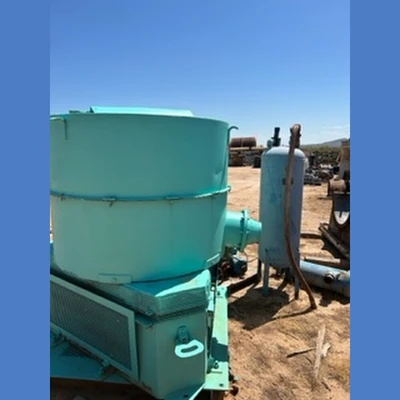

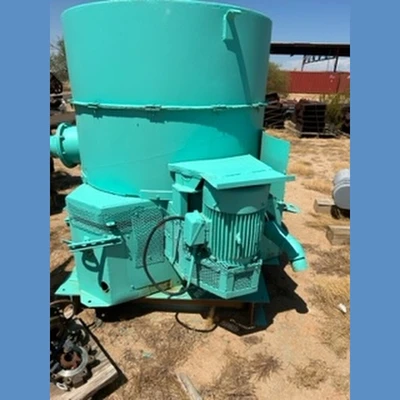

Knelson MD30 Gold Concentrator
Make: Knelson
Model: KC-MD30
Type: Gold Concentrator
Condition: Used Condition

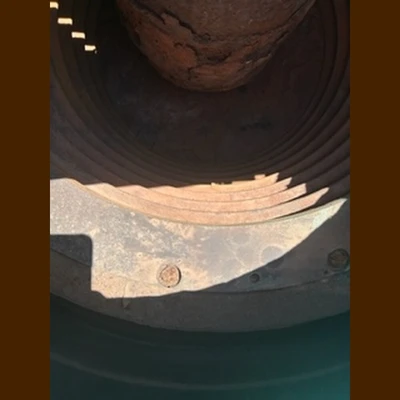

Bowl: Poly G4 Bowl
Discharge Type: Manual Discharge
General Model Specifications:
Feed Capacity: 30-40 Tons/Hr (27.3-36.3 Tonnes/hr.) Solids
Typical Fluidization Water Requirement: 75-110 GPM (17.0-25.0 m³/hr.)
Maximum Volumetric Throughput: 250 GPM (56.8m³/hr.)
Feed Density: 0-75% Solids/Weight
Feed Size:
Max: 0.25in (6mm)
Recommended: Minus 10 Mesh (1.7mm)
Concentrate Volume: 786.6in³ (12.4L)
Concentrate Weight: 45-60 Lbs. (27-36kg)
Feed Capacity: 30-40 Tons/Hr (27.3-36.3 Tonnes/hr.) Solids
Typical Fluidization Water Requirement: 75-110 GPM (17.0-25.0 m³/hr.)
Maximum Volumetric Throughput: 250 GPM (56.8m³/hr.)
Feed Density: 0-75% Solids/Weight
Feed Size:
Max: 0.25in (6mm)
Recommended: Minus 10 Mesh (1.7mm)
Max: 0.25in (6mm)
Recommended: Minus 10 Mesh (1.7mm)
Concentrate Volume: 786.6in³ (12.4L)
Concentrate Weight: 45-60 Lbs. (27-36kg)
Location: Southwest USA
