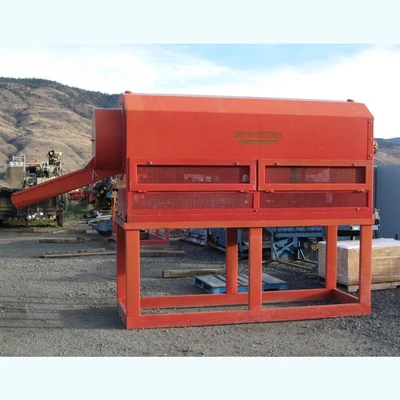

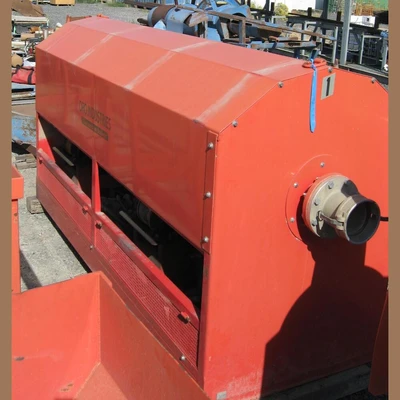

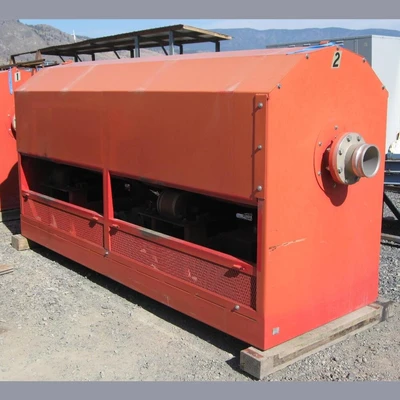

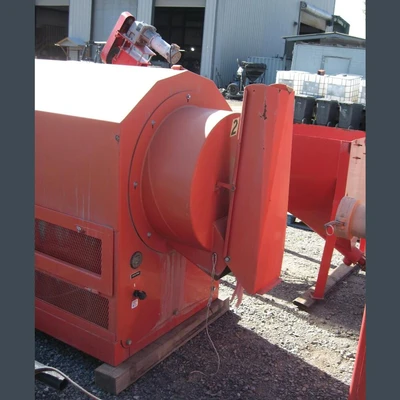

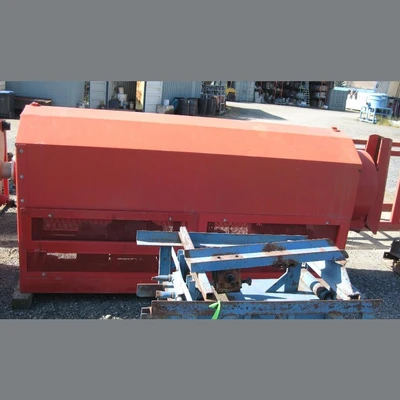

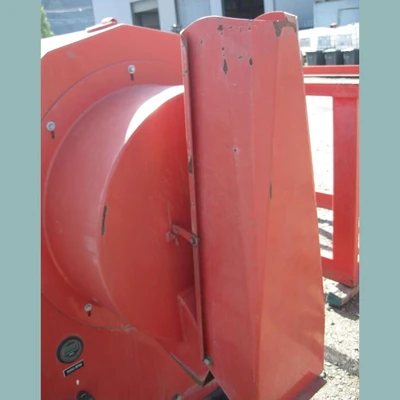

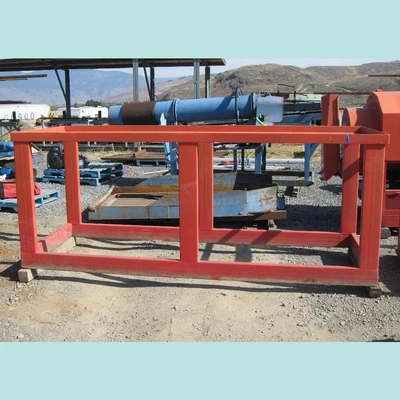

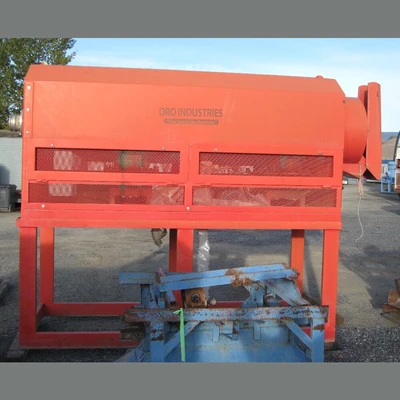

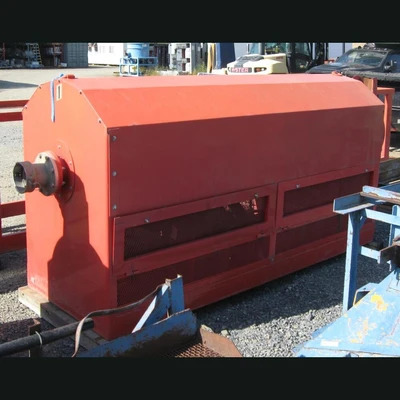

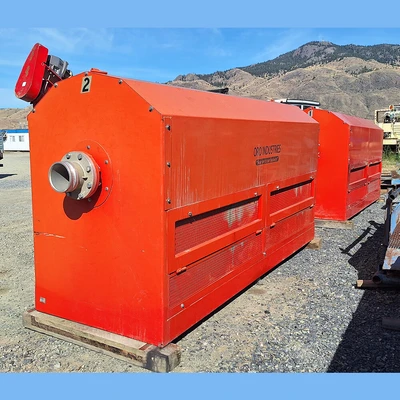

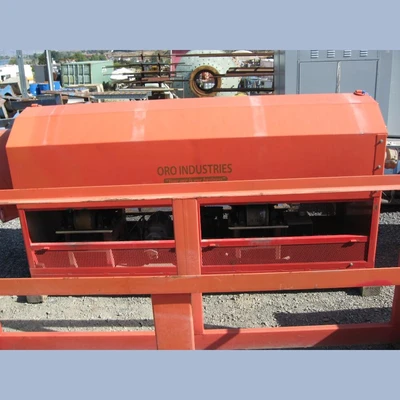

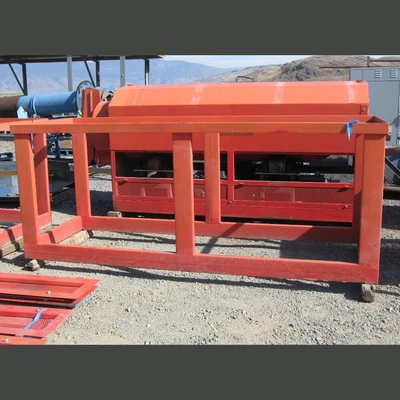

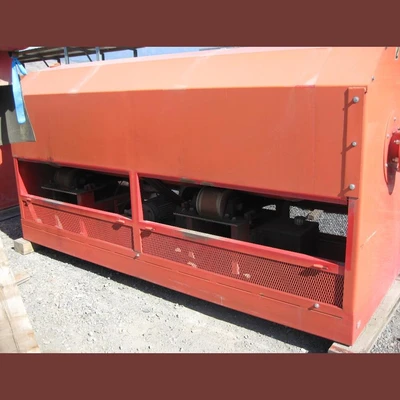

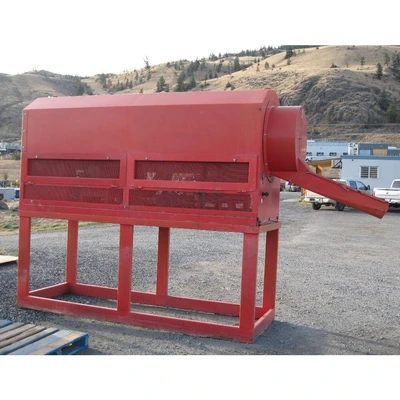

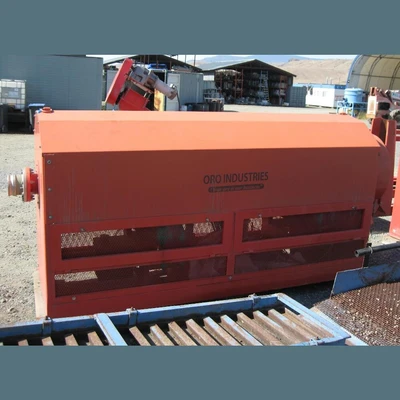

USED ORO INDUSTRIES LOW-G HORIZONTAL CENTRIFUGE

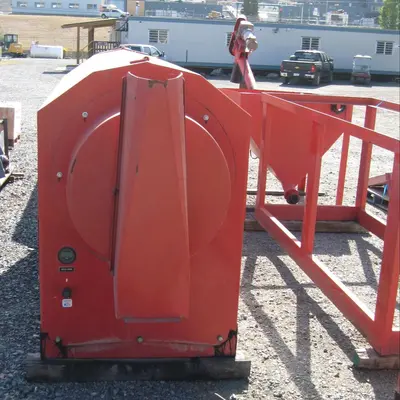

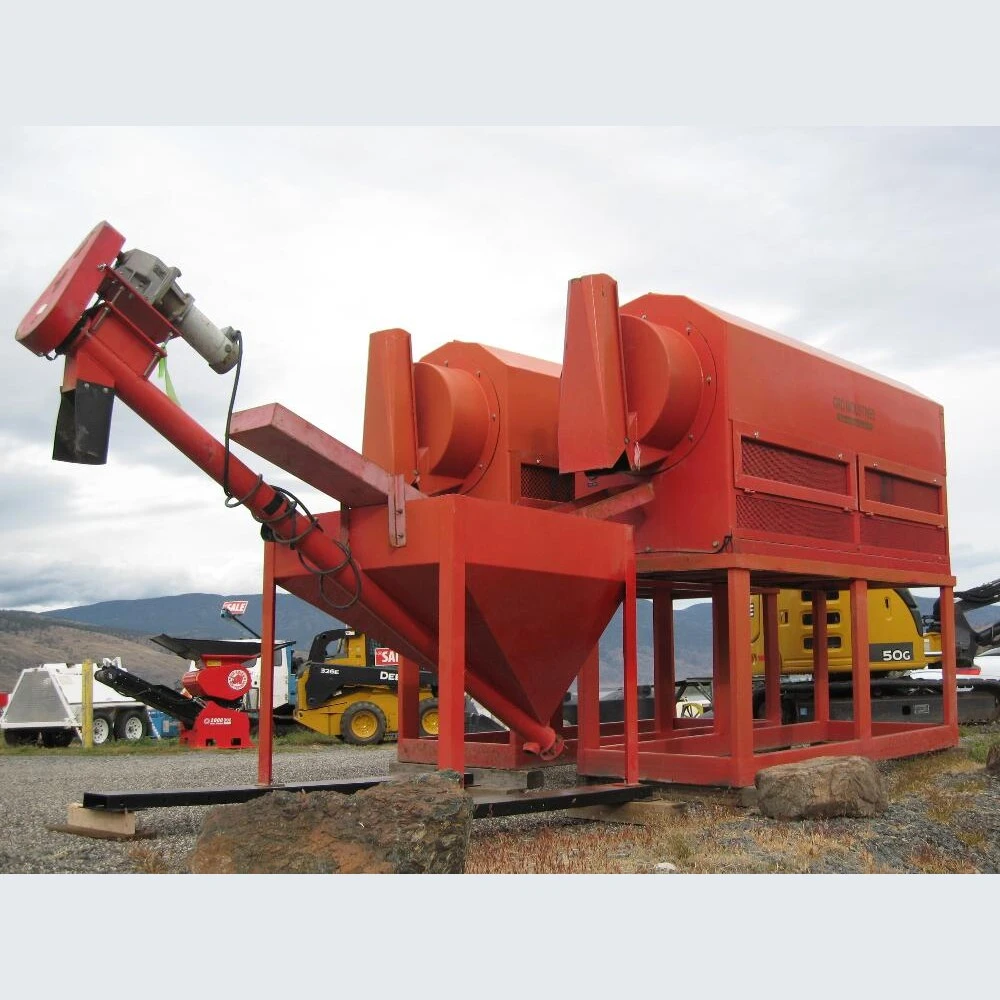

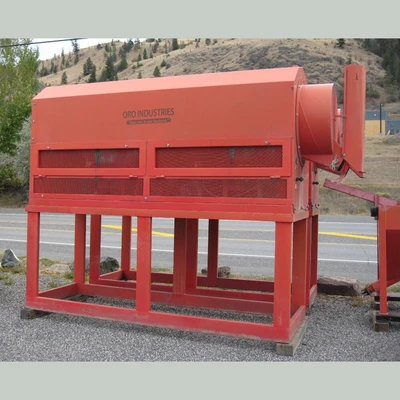

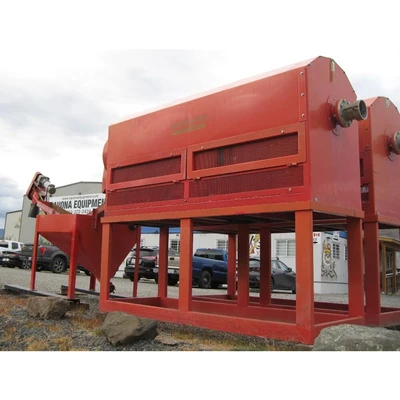

30in Dia. Oro Industries Low-G Horizontal Centrifuge

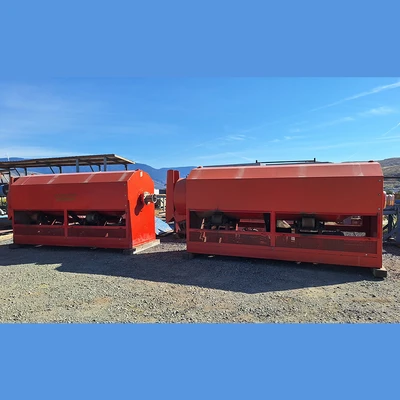

Quantity: (2) Units Available
Make: Oro Industries
Model: Low-G Horizontal Centrifuge
Type: Gold Concentrator
Style: Primary Batch-Type Concentrator for Both Alluvial and Milled Hard Rock Ores
Condition: Used, Reported in Good Working Condition
Size: 30in Diameter
Recovery: 99% Recovery of Free Gold Down to 100 Mesh - 80% to 90% Recovery Down to 200 Mesh
Classified Material Feed: 1/4” or 3/8”
Production Capacity: 40 TPH  (25 Cubic Yards or 20 Cubic Meters)
Water Consumption: 200-400 GPM (755-1500 Liters Per Hour)
Concentrate Capacity: 50 Gallons (880 Lbs./200 Liters)

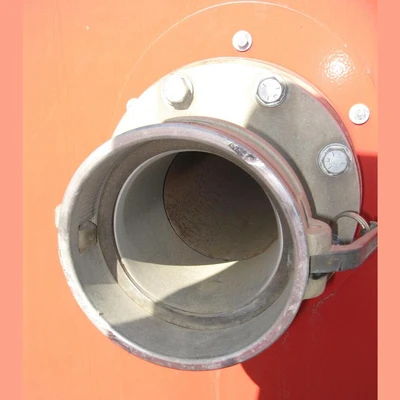

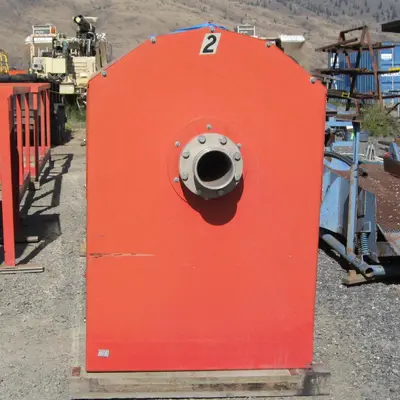

Intake: 6in Dia.
Discharge: 6in Dia.

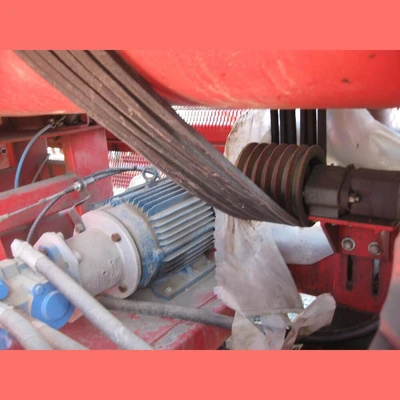

Drive: Electric Over Hydraulic

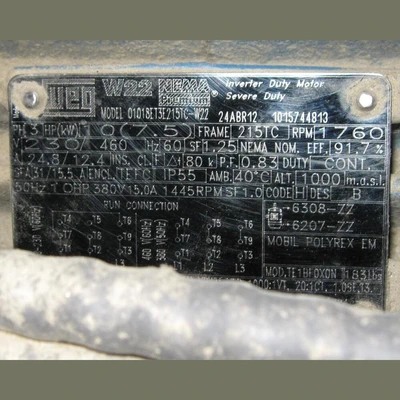

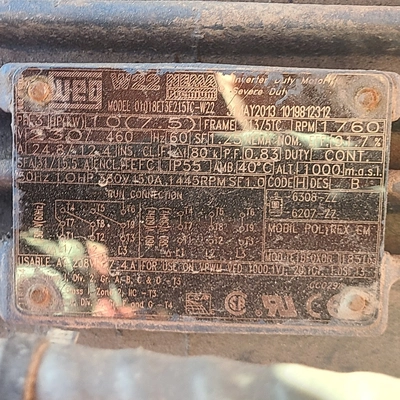

Power Output: 10HP
Voltage: 230/460 Volt
Frequency: 60Hz
Phase: 3-Phase

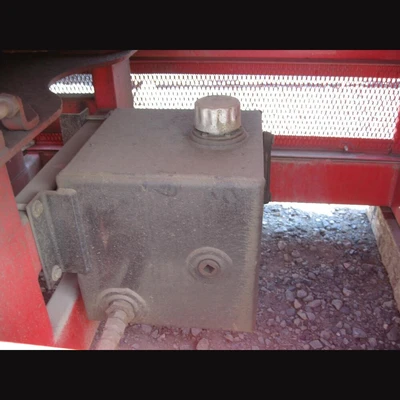

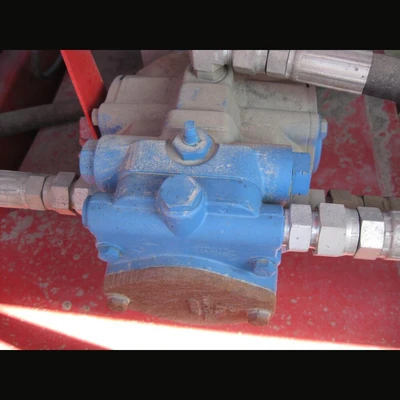

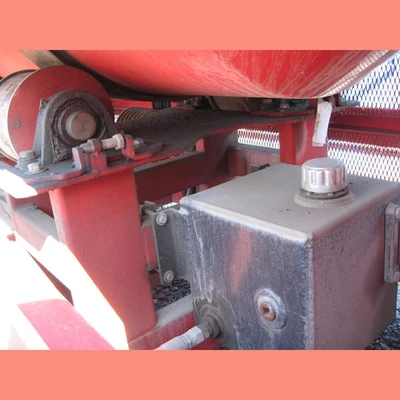

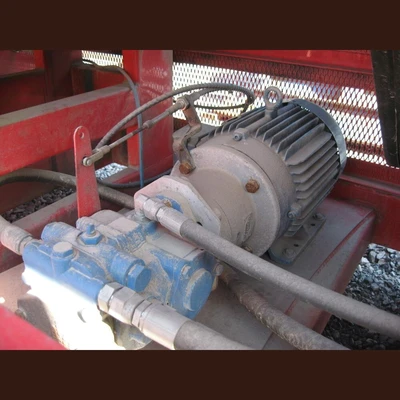

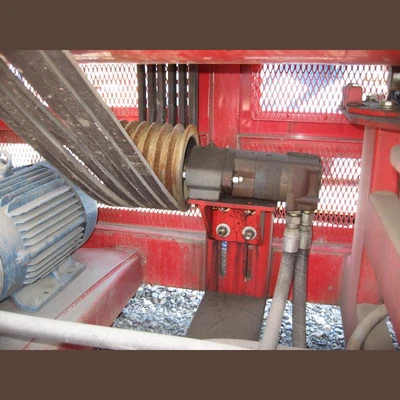

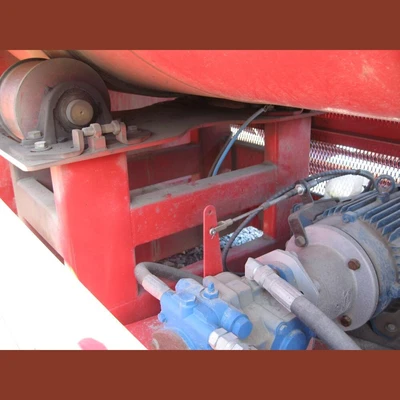

Variable Speed Hydraulic Drive with On-Board Hydraulic Tank, Pump and Filter
Power Output: 10HP
Voltage: 230/460 Volt
Frequency: 60Hz
Phase: 3-Phase
Variable Speed Hydraulic Drive with On-Board Hydraulic Tank, Pump and Filter

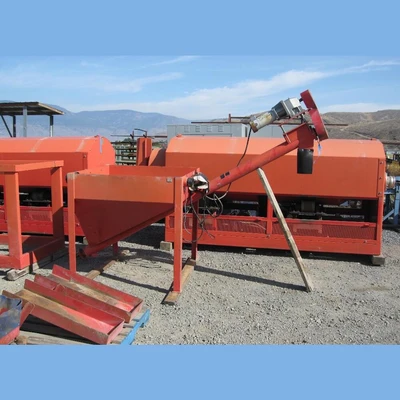

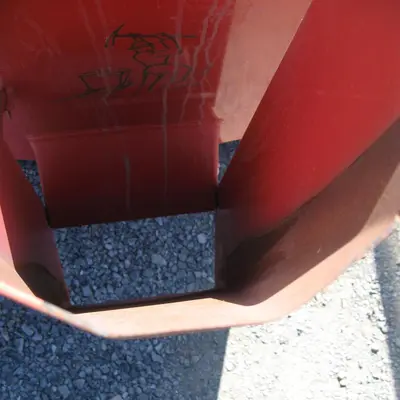

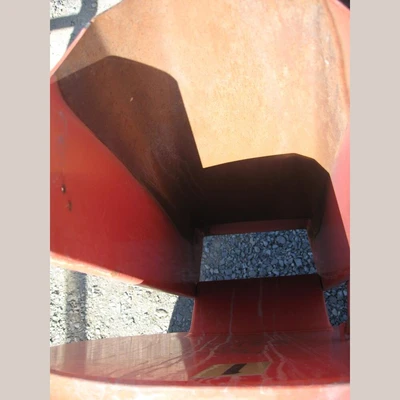

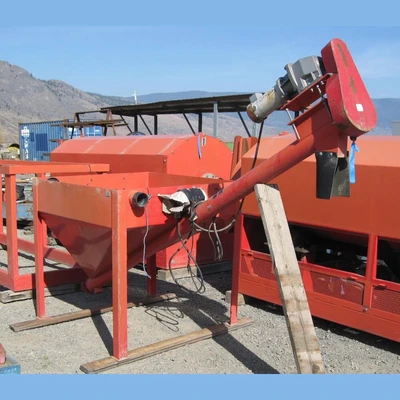

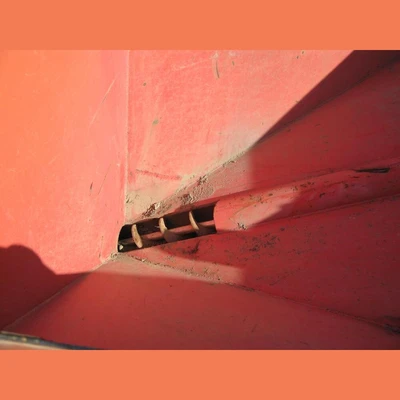

Auger Feeder: Available for Additional Cost
Dimensions: 4ft Wide x 4ft Long x 37.5in Deep Tapered

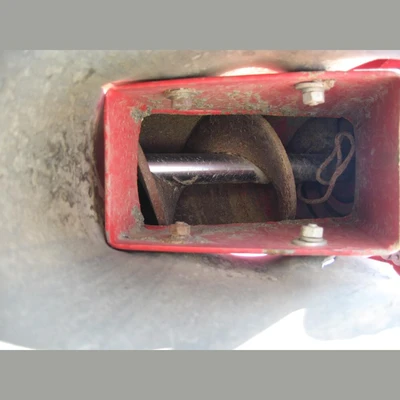

6in OD Auger Pipe
Discharge Height: 61in High
Discharge Chute: 6.25in x 3.625in

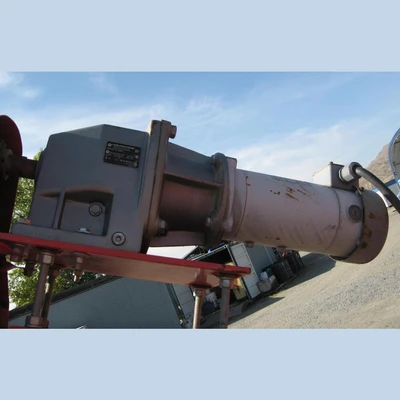

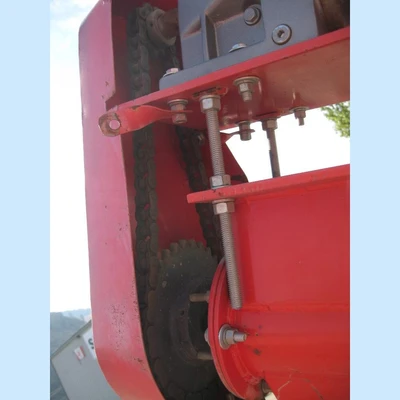

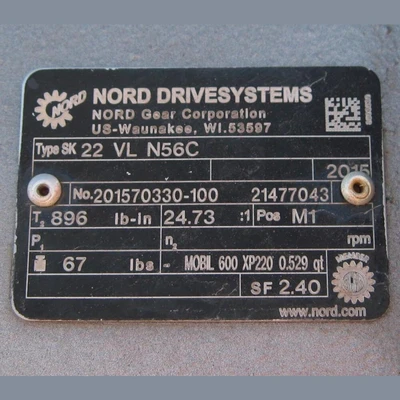

Chain Driven through Nord SK 22 VL N56C Reducer
VFD Controlled: KB Electronics Model KBPW240D Variable Frequency Drive
Dimensions: 4ft Wide x 4ft Long x 37.5in Deep Tapered
6in OD Auger Pipe
Discharge Height: 61in High
Discharge Chute: 6.25in x 3.625in
Discharge Height: 61in High
Discharge Chute: 6.25in x 3.625in
Chain Driven through Nord SK 22 VL N56C Reducer
VFD Controlled: KB Electronics Model KBPW240D Variable Frequency Drive
Overall Dimensions:
Length: 158.5in
Width: 86.25in
Height: 68in
Shipping Weight: 4,200 lbs.
Length: 158.5in
Width: 86.25in
Height: 68in
Shipping Weight: 4,200 lbs.
Location: Savona, British Columbia, Canada
