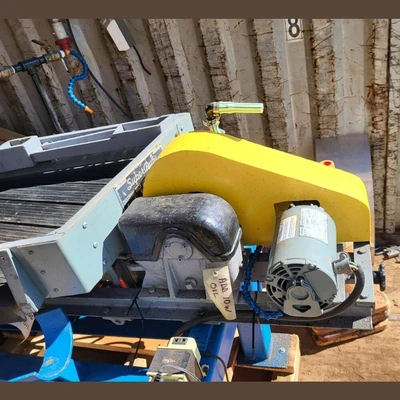

USED DEISTER RH 15-S

Deister 15-S Gold Concentrating Table
Make: Deister
Model: RH 15-S
Type: Gold Concentrating Table
Style: Laboratory Size
Condition: Used Condition

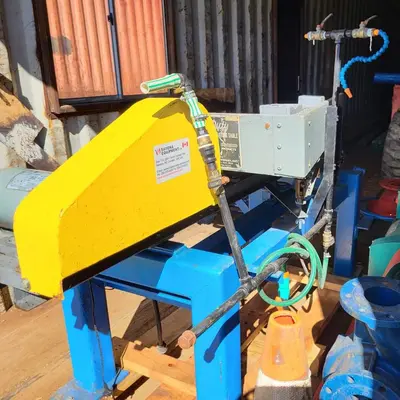

Spray Nozzles

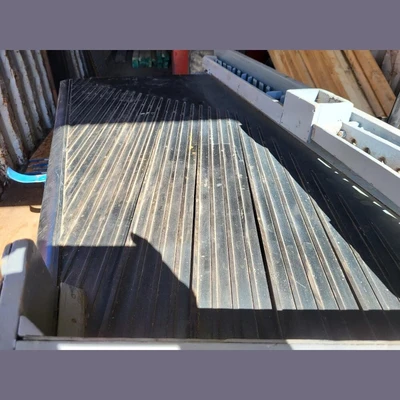

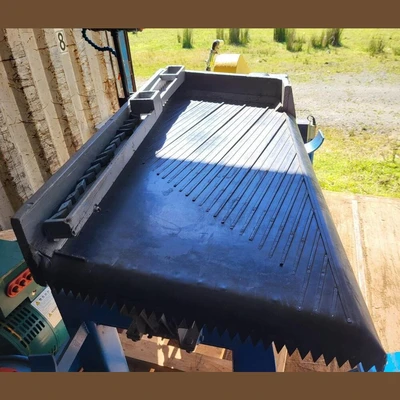

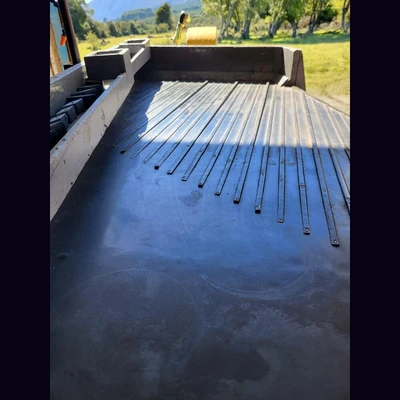

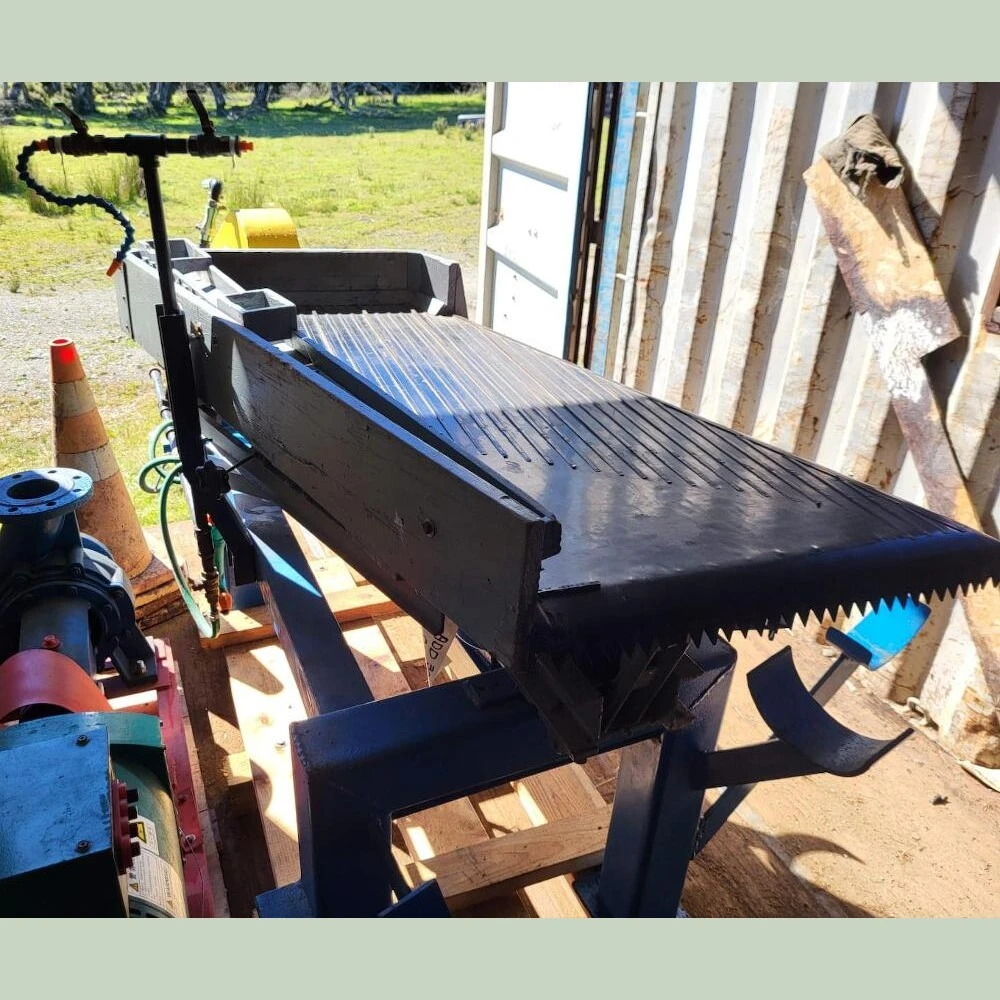

Black Rubber Riffled Vibrating Table
Manually Adjustable Angle

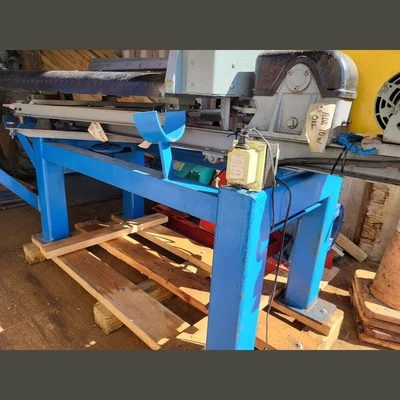

Mounted on Stand

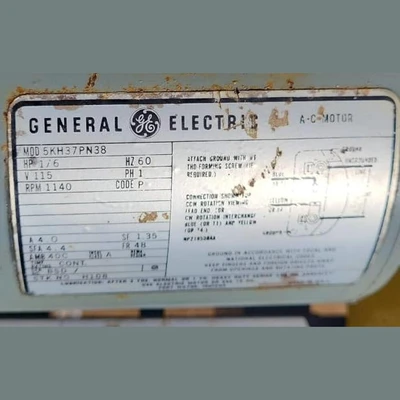

Drive: Electric Motor
Power Output: 1/6HP
Rotation Speed: 1140RPM
Voltage: 115 Volts
Frequency: 60Hz
Phase: Single Phase
Power Output: 1/6HP
Rotation Speed: 1140RPM
Voltage: 115 Volts
Frequency: 60Hz
Phase: Single Phase
General Model Specifications:
Particle Top Size:
Coarse Sand: 10 Mesh (2.0mm)
Medium Sand: 48 Mesh (0.30mm)
Fine Sand: 100 Mesh (0.15mm)
Capacity (Standard Tons Per Hour)
Coarse Sand: 0.125 STPH (0.115 MTPH)
Medium Sand: 0.075 STPH (0.070 MTPH)
Fine Sand: 0.050 STPH (0.045 MTPH)
Dressing Water
Coarse Sand: 0.5-0.8 GPM
Medium Sand: 0.4-0.6 GPM
Fine Sand: 0.3-0.5 GPM
Location: South America
