USED GOLDFIELD GOLDTRON

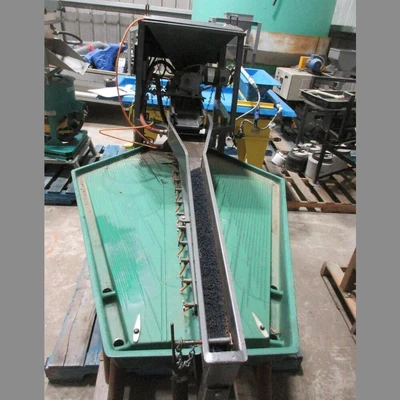

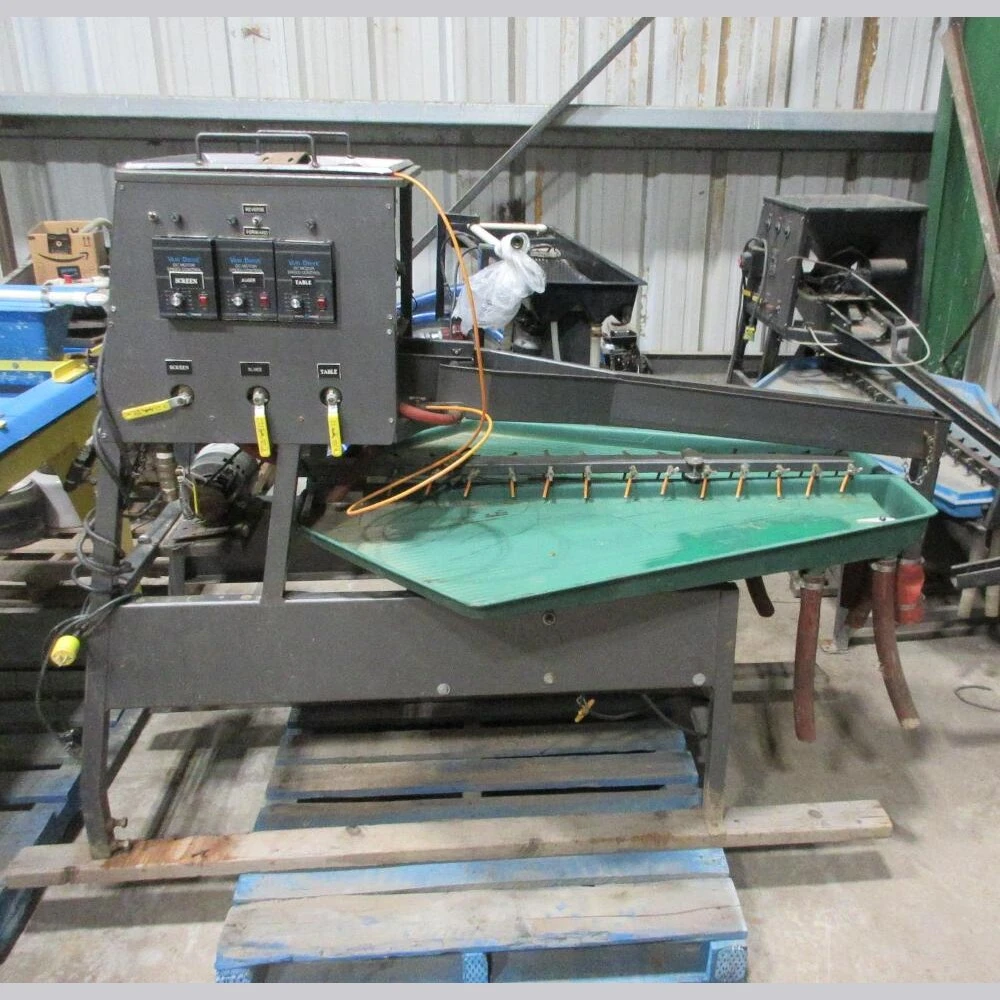

Goldfield Goldtron Concentrating Table
Make: Goldfield
Model: Goldtron
Type: Gold Concentrating Table
Condition: Used Condition

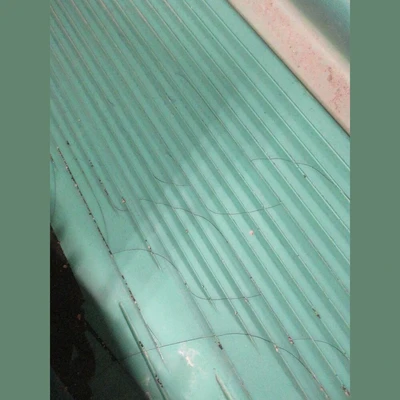

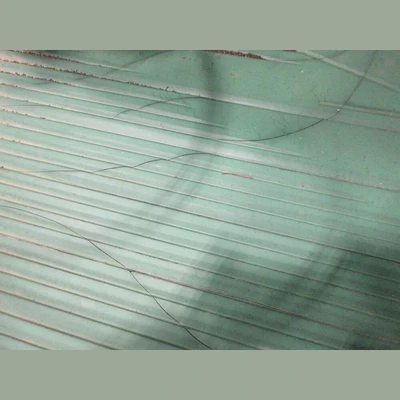

Deck Size: 50.5in Long x 42in Wide
Capacity: 150lbs of Concentrate/hr
Water Requirements: 5 - 10gal/min @ 30 - 50psi

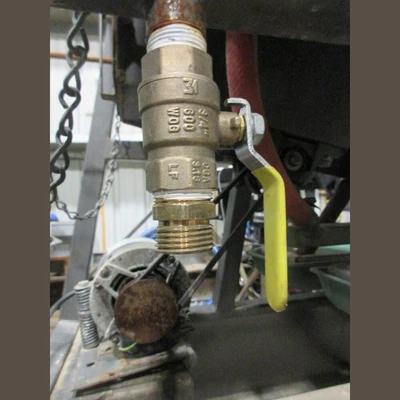

Water Inlet: 0.75in Dia.

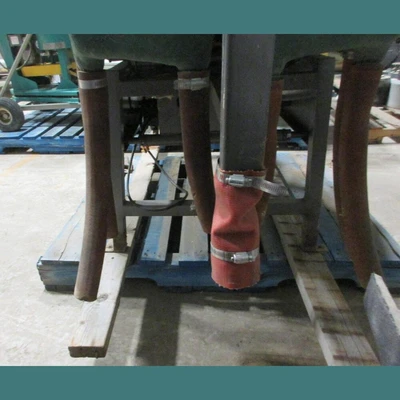

Table Outlets: 1.25in Dia.

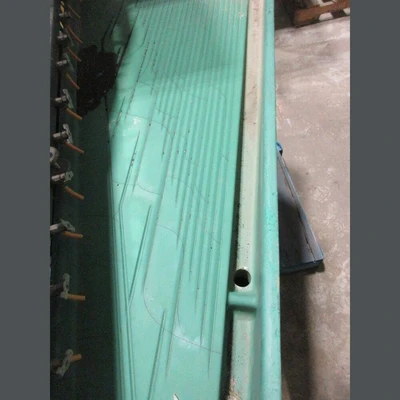

Water Sprayers:
Qty: 13 Each Side
Adjustable Rate
Qty: 13 Each Side
Adjustable Rate

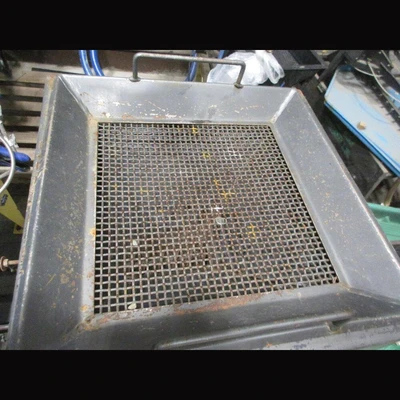

Screen Pan Size: 17in Long x 17in Wide x 2in Deep
Screen Size: 12in x 12in
Screen Spacing: 0.25in

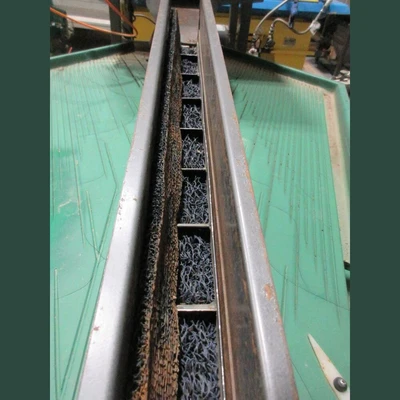

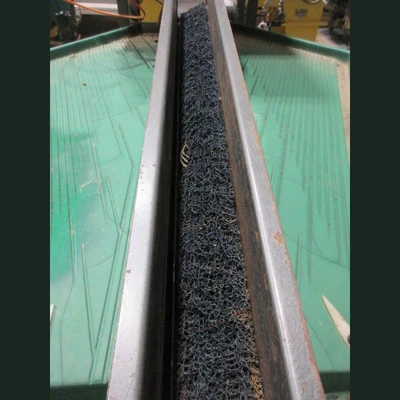

Sluice Run
Sluice Outlet: 2in x 2in Dia. Square Tubing Outlet
Adjustable Table Legs: 5.5in Height Adjustment on One Side

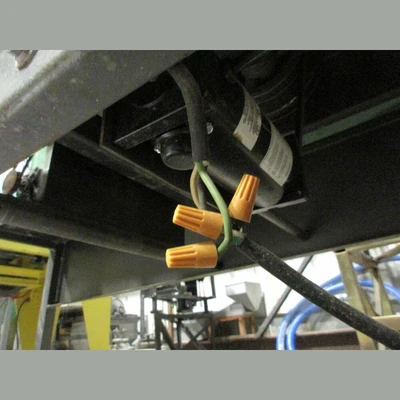

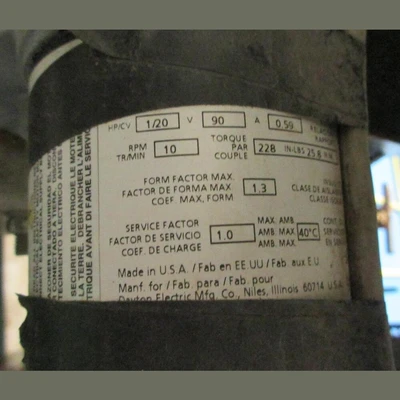

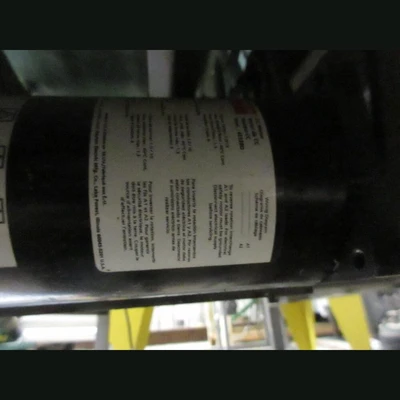

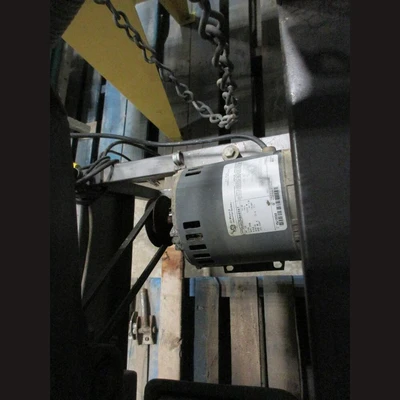

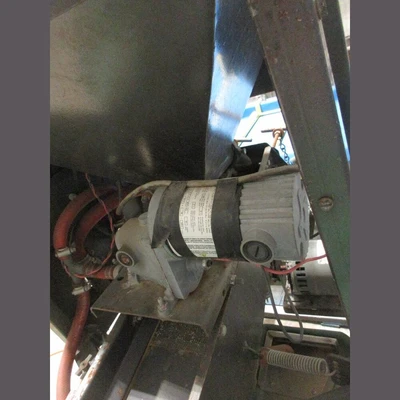

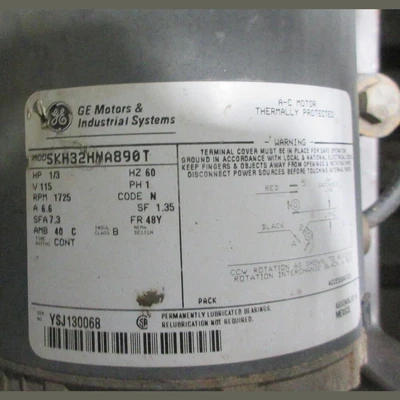

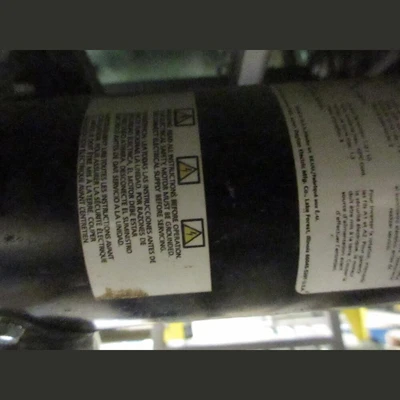

Drive: Electric Motors
Qty: 3
Qty: 3

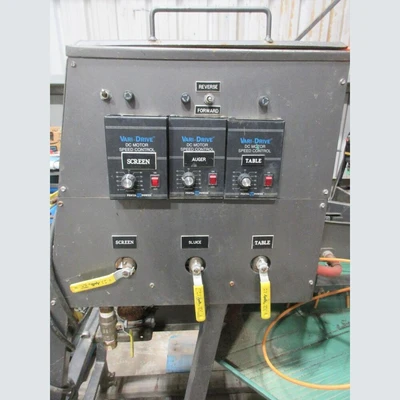

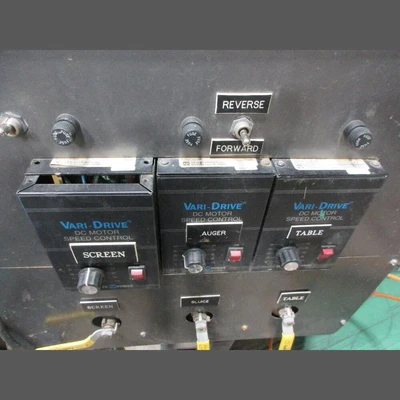

Vari-Drive Motor Speed Controllers:
Qty: 3
Qty: 3
Power Requirements:
Voltage: 110/220 Volts
Frequency: 50/60Hz
Phase: Single Phase
Voltage: 110/220 Volts
Frequency: 50/60Hz
Phase: Single Phase
Overall Dimensions:
Length: 73in
Width: 42in
Height: 55in
Length: 73in
Width: 42in
Height: 55in
Location: Savona, British Columbia, Canada
