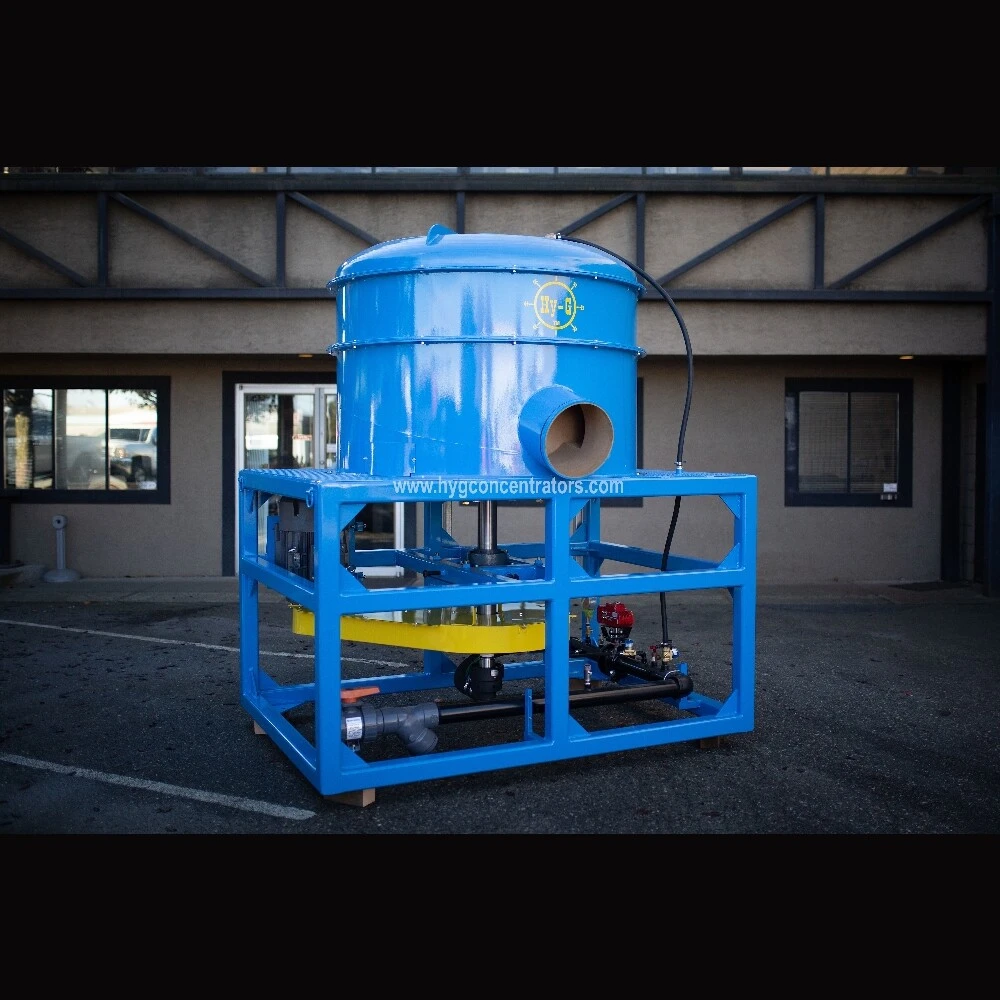

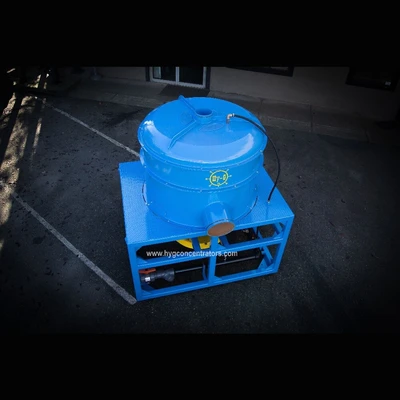

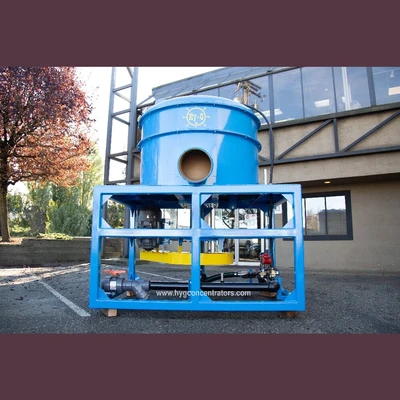

(New) Hy-G P40 Gold Concentrator

Savona Equipment Ltd. is an authorised global distributor for Hy-G Concentrators Inc. www.hygconcentrators.com and provides the same great OEM pricing and service.
The Hy-G P40 Gold Concentrator provides exceptional recovery of extremely fine gold and other minerals and metals.
Hy-G P40 is part of the Hy-G Placer Series centrifugal concentrators which are engineered specifically for placer mining applications.
Watch a Hy-G P40 in Action! https://www.youtube.com/watch?v=0rVgr5kMNlc
Some of the P40 advantages are:
Engineered to recover over 95% of gold as fine as 44 Micron (325 Mesh) under correct operating procedures.
Recovers fine flat and flake gold.
It is a semi-batch concentrator and it can be operated up to 24 hours between clean-outs which only take minutes.
Engineered placer bowl designed for max recovery even with larger feed sizes, fluctuations in feed rates, and variations of particle sizes common in placer mining applications.
Stainless steel bowl help prevent plugging and provide precise control of water pressure and flow to ensure efficient recovery.
Heavy duty design and very limited wear parts to ensure durability for tough and remote mining conditions around the world.
Supplied standard with a simple electrical start/stop and single water valve control for start-up, shut-down, and clean-outs to reduce operational complexity. Automated controls are optional.
Specifications:
Max Capacity: 120 TPH
Max Capacity within Max Recovery Range: 60 TPH (Approximately)
Max Particle Feed Size: 6mm
Recommended Feed Particles Size: 5mm Minus
Motor: 25 HP
Hz: 50 or 60
Voltage: Per Customer Request
Water Required: 310 GPM @ 35 psi
G-Force: 70 G's
Weight: 2,804 kg (6,182 lbs.)
Dimensions: 2.21m long x 1.78m wide x 2.50m High (7' 3" x 5' 10' x 8' 2-1/4" high)
Made in Canada.
Worldwide shipping available.
