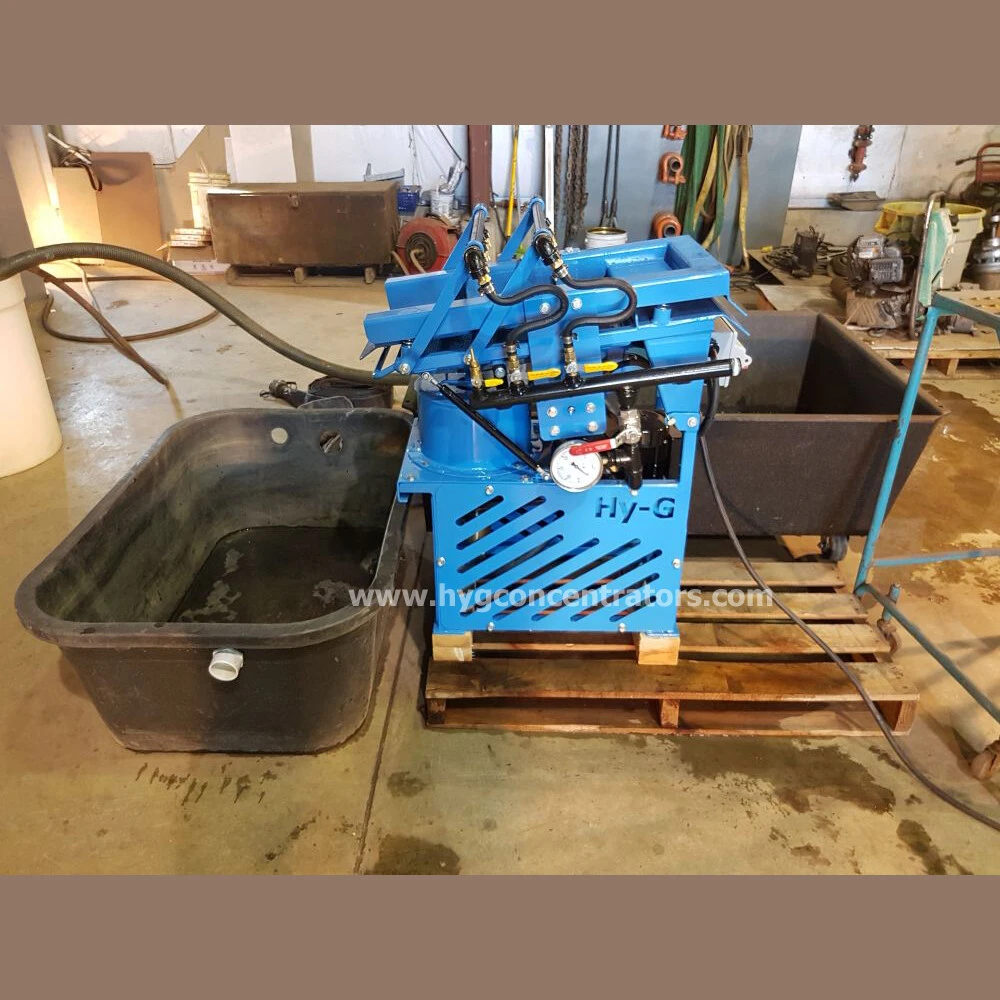

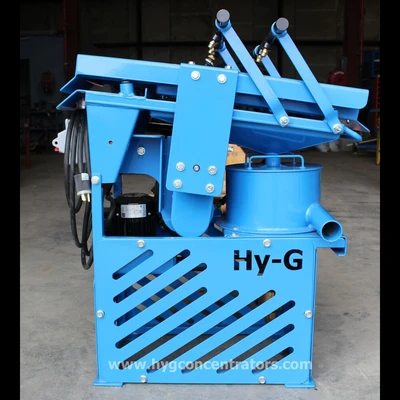

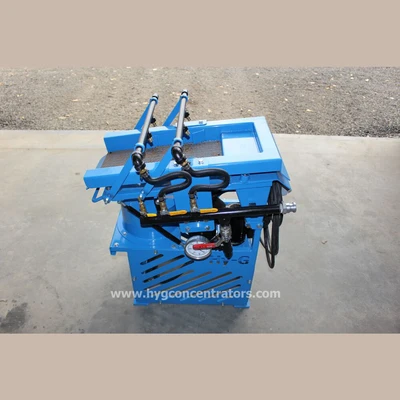

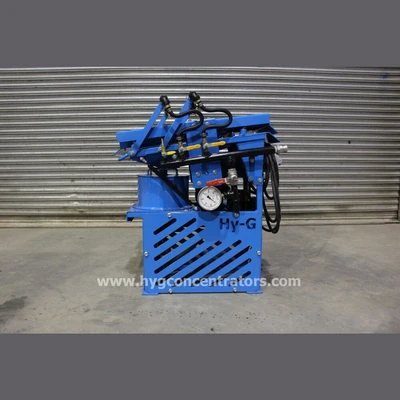

(New) Hy-G P5T Concentrator Test Plant

Savona Equipment Ltd. is an authorised global distributor for Hy-G Concentrators Inc. www.hygconcentrators.com and provides the same great OEM pricing and service.
Hy-G Concentrators Inc. Placer Series concentrators are designed specifically for the recovery of alluvial placer gold as fine as 325 mesh (44 Micron) with expected recovery rates of 94 – 98%.
Excellent unit for field or lab testing of field bucket samples of head ore. It is also very useful for final clean-up of sluice or mineral jig concentrates.
Test Plant Features:
Removable stainless-steel bowl with steel rings for excellent precision and wear life.
Vibrating wash screen to pre-treat and size feed material.
Compact design for ease of transport.
Removable stainless-steel bowl with steel rings for excellent precision and wear life.
Vibrating wash screen to pre-treat and size feed material.
Compact design for ease of transport.
Bowl size: 5 inch (127 mm).
Approx. efficient capacity range: 250-350 lbs/hr.
Screen size: Max 4 mm (other options availabe).
Electric Motors: Single Phase .10 HP and .25 HP.
Approx. water required: 30-45 GPM @ 35 PSI.
G-Force: 70.
Made in Canada.
Location: Western Canada.
Contact for more information.
