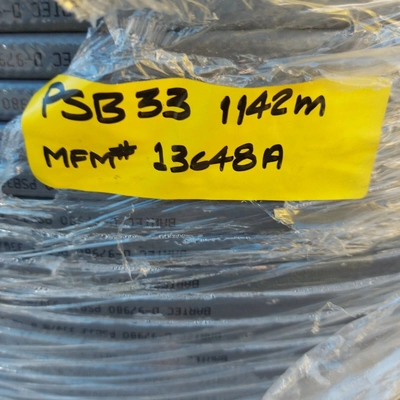

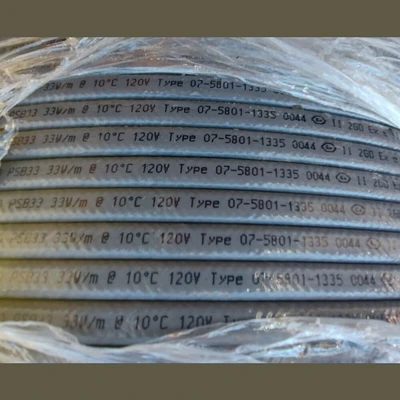

Bartec PSB33 Heat Trace Cable
Make: Bartec
Model: PSB33
Order No.: 07-5801-1335
Condition: Unused

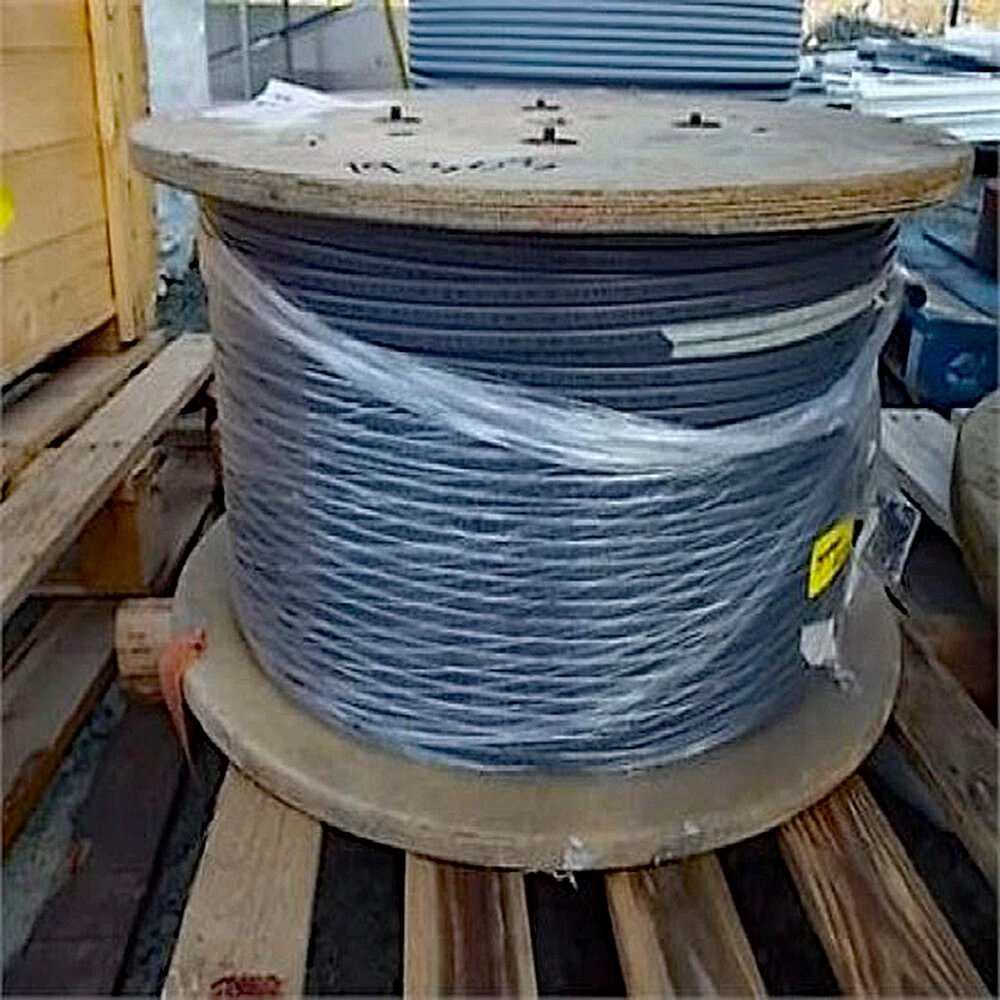

Length: 1,142 Meters (1 Roll)
Power Output: 33 Watts per Meter
Nominal Voltage: 120 Volts AC
Max. Exposure Temperature
Switched On: +65°C
Switched Off: +85°C
Switched On: +65°C
Switched Off: +85°C
Min. Installation Temperature: -55°C
Min. Start-Up Temperature: -40°C
Max. Braid Resistance: <18.2 Ω/km
Dimensions with Braiding and Jacket: 11.6mm x 5.6mm
Min. Bending Radius: 25mm
Jacket: Fluoropolymer - Suitable for Organic Chemicals
Can Be Cut to Random Length Due to its Parallel Current Supply
Self Limiting Heating
Explosion Protected
Area of Application: PSB Heating Tape if Suitable for Electric Trace Heating for Frost Protection of Pipelines and Vessels
Location: Eastern Canada
