USED WELL-TECH INTERNATIONAL 6-S

Well-Tech International 6-S Gold Concentrating Table
Make: Well-Tech International
Model: 6-S
Type: Gold Concentrating Shaker Table
Condition: Used Condition

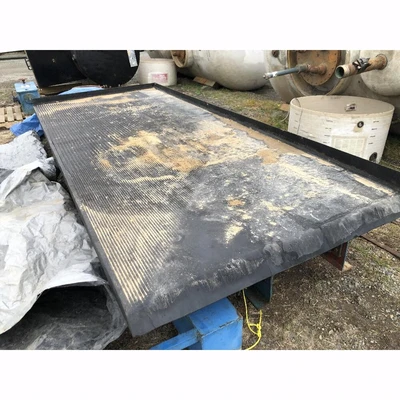

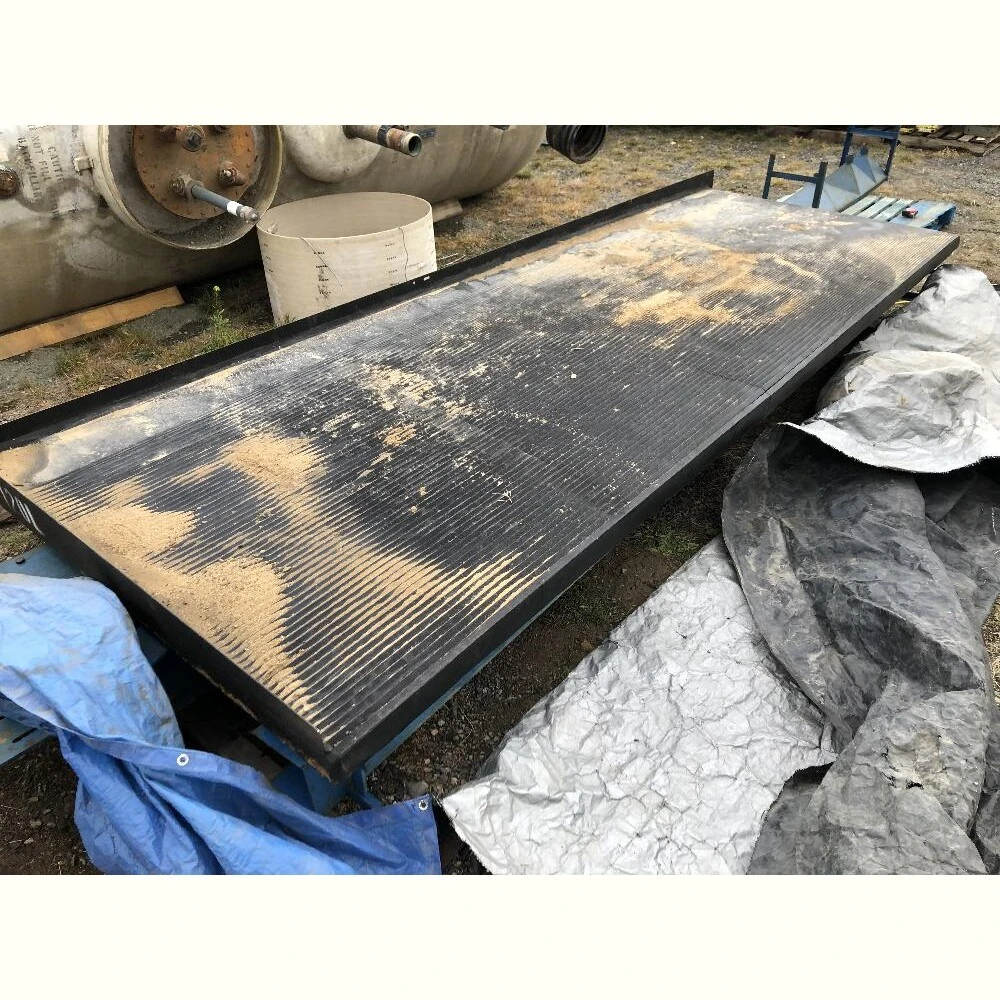

Deck: Coarse Sand Deck
Riffles: Deister Style Riffles

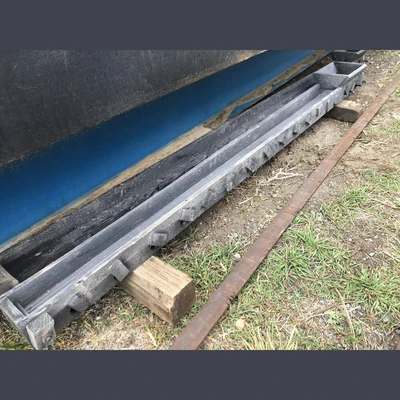

Feed: Deister Style Wooden Feed Trough

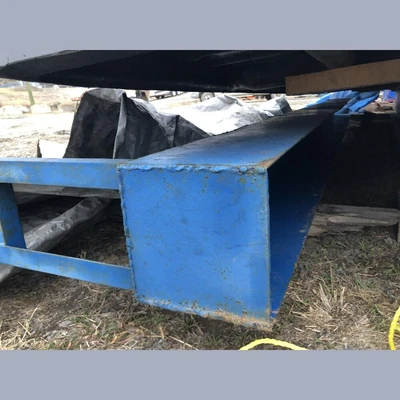

Tailings Launder: 16in Wide x 68in Long

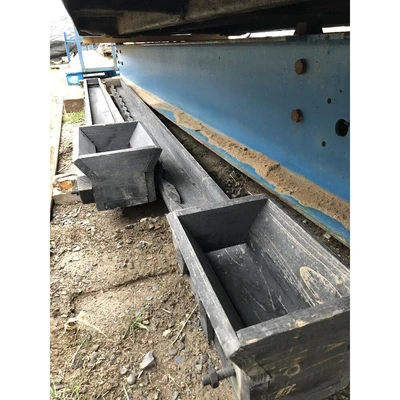

Con Recovery Launder: 3-Section

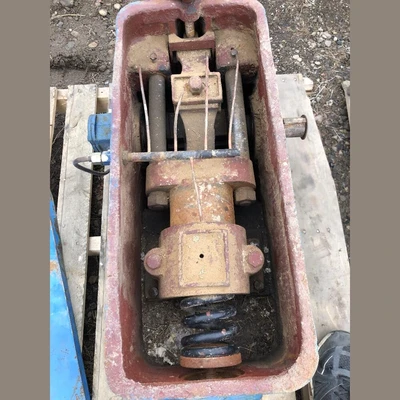

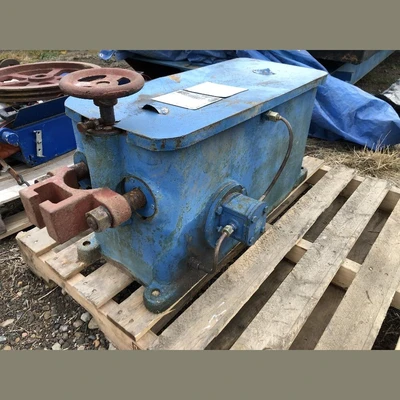

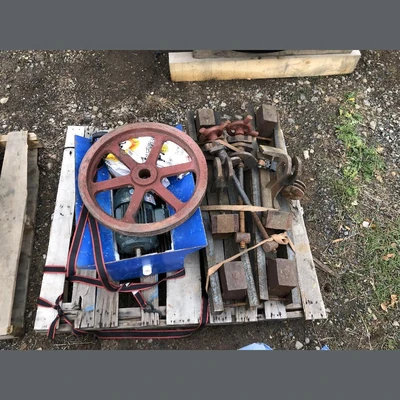

Head Motion with Built-In Pump

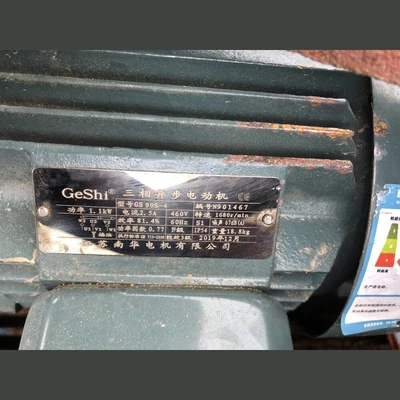

Drive: GeShi Electric Motor
Power Output: 1.1kW (1.5HP)
Voltage: 460 Volt
Frequency: 60Hz
Belt Drive
Power Output: 1.1kW (1.5HP)
Voltage: 460 Volt
Frequency: 60Hz
Belt Drive
General Model Specifications:
Beneficiation Area: 7.6m²
Max Feeding Size: 2mm
Capacity: 1-1.8 TPH
Feed Density: 20-30%
Stroke: 16-22mm
Frequency of Stroke: 220 r/min
Water Consumption: 0.7-1 TPH
Groove Shape of Deck: Triangle
Power Required: 1.1kW
Deck Size:
Length: 4500mm
Width:
Feed End: 1850mm
Concentrate End: 1550mm
Beneficiation Area: 7.6m²
Max Feeding Size: 2mm
Capacity: 1-1.8 TPH
Feed Density: 20-30%
Stroke: 16-22mm
Frequency of Stroke: 220 r/min
Water Consumption: 0.7-1 TPH
Groove Shape of Deck: Triangle
Power Required: 1.1kW
Deck Size:
Length: 4500mm
Width:
Feed End: 1850mm
Concentrate End: 1550mm
Length: 4500mm
Width:
Feed End: 1850mm
Concentrate End: 1550mm
Feed End: 1850mm
Concentrate End: 1550mm
View Spec Sheet Below
Location: Savona, British Columbia, Canada
