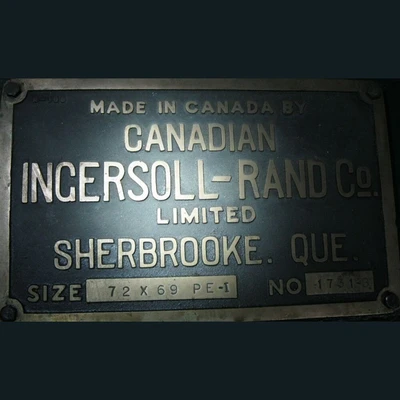

Canadian Ingersoll-Rand 72 x 69 PE-1 Mine Hoist

Double drum.
72 in. dia. x 69 in. wide @ face each.

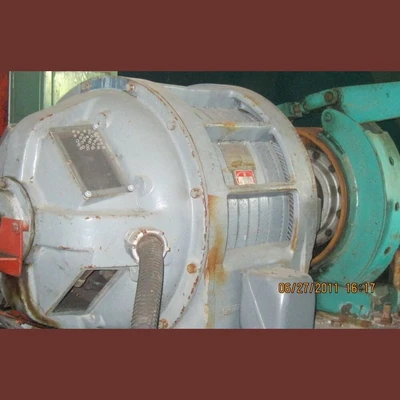

Canadian General Electric 450 hp electric motor.
600 rpm.
2400 volts.
3 phase.
600 rpm.
2400 volts.
3 phase.
7/8 in. dia. wire hoist ropes.
15,000 lbs suspended load/rope pull rating.
Hoisting speed: 1200 fpm.

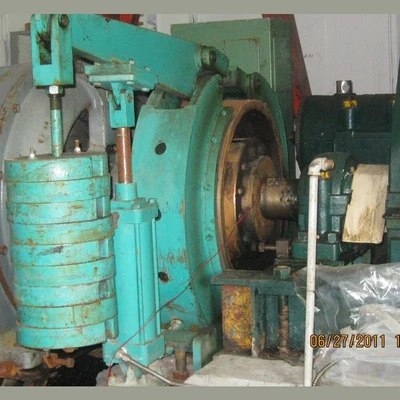

Dual weight, over air released, friction shoe brakes on each drum.
Weight actuated, over air released, friction shoe brake on motor drive shaft.
2 mechanical geared clutches.

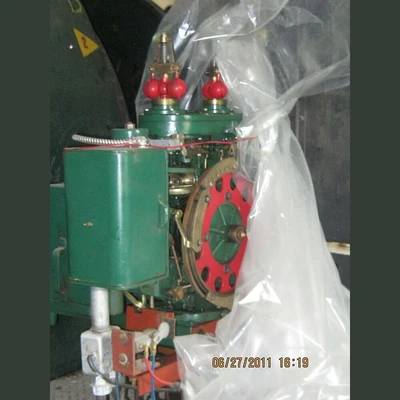

Lilly model "C" controllers.
Electrical mechanical hoist controls.
Canadian General Electric limitamp primary switchgear.
AC cast iron grids.
Fault finder panel.
2 - 72 in. bicycle spoke, roller bearing, and sheave wheels.
Includes skip over cage with 2nd skip as counter balance.
Location: Central Canada
