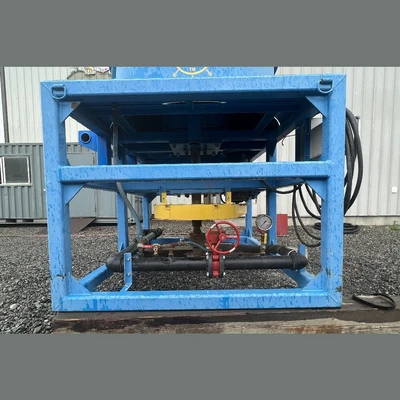

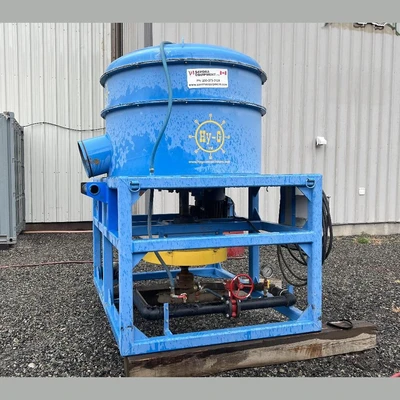

USED HY-G P40

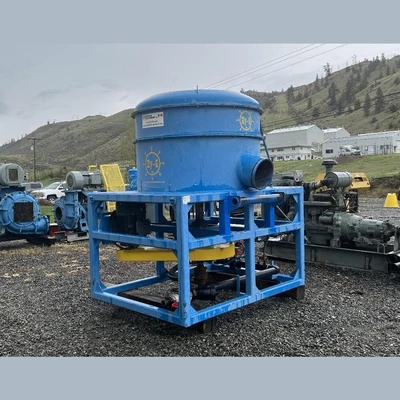

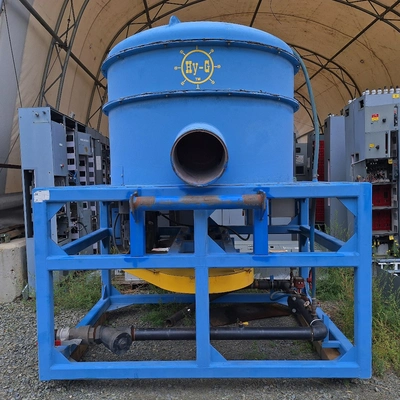

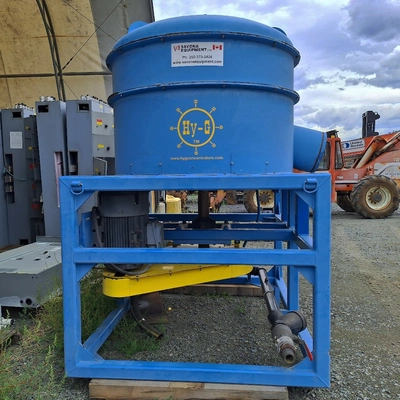

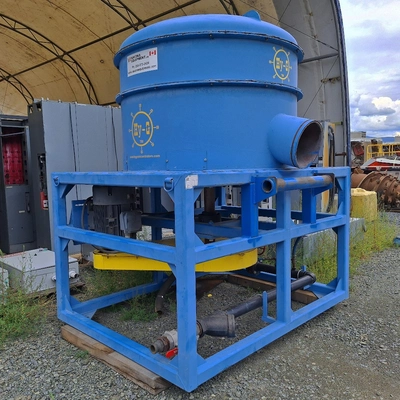

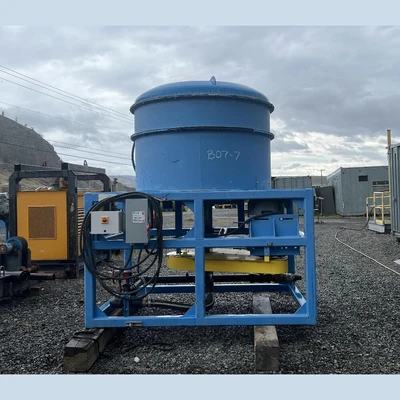

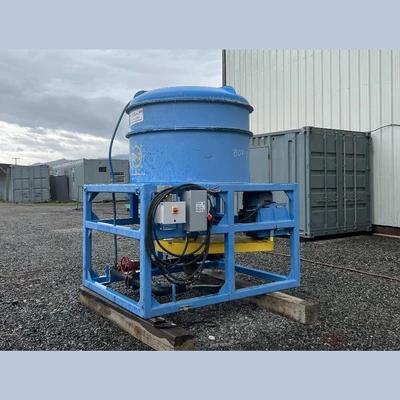

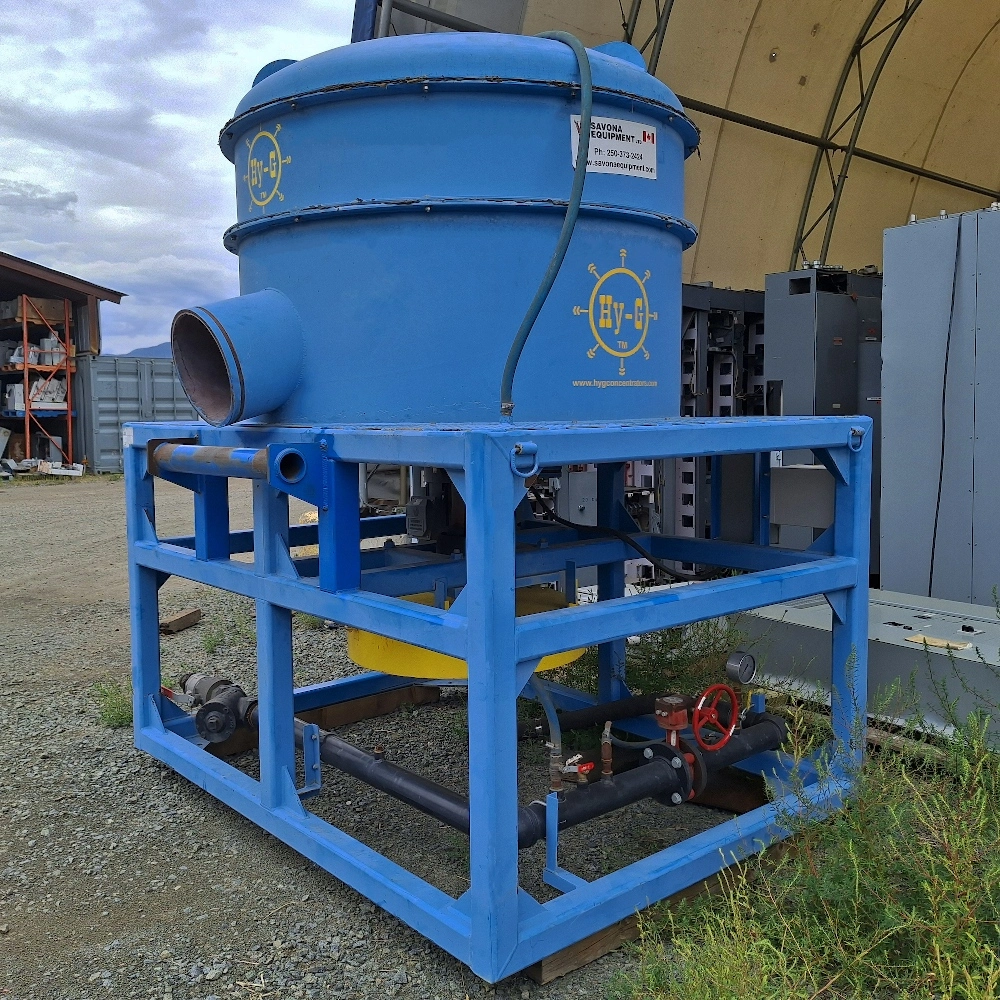

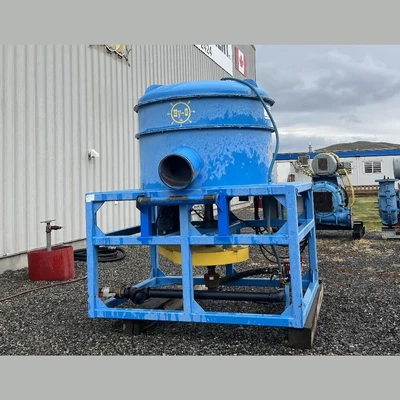

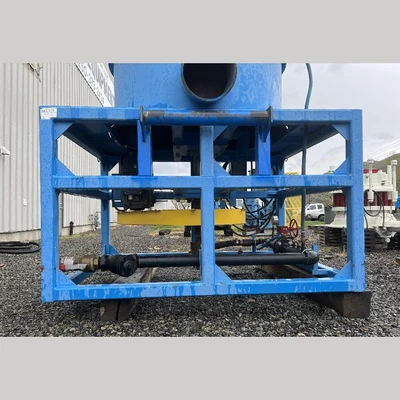

Hy-G P40 Gold Concentrator
Make: Hy-G
Model: P40
Condition: Used, Refurbished Condition
Type: Gold Concentrator
Savona Equipment Ltd. is an Authorized Global Distributor for Hy-G Concentrators Inc. www.hygconcentrators.com and Provides the Same Great OEM Pricing and Service.
The Hy-G P40 Gold Concentrator Provides Exceptional Recovery of Extremely Fine Gold and Other Minerals and Metals.
Hy-G P40 is part of the Hy-G Placer Series Centrifugal Concentrators which are Engineered Specifically for Placer Mining Applications.
Watch a Hy-G P40 in Action! https://www.youtube.com/watch?v=0rVgr5kMNlc
Some of the P40 Advantages are:
Engineered to Recover Over 95% of Gold as Fine as 44 Micron (325 Mesh) under Correct Operating Procedures
Recovers Fine Flat and Flake Gold
It is a Semi-Batch Concentrator and it can be Operated Up To 24 Hours Between Clean-Outs which Only Take Minutes

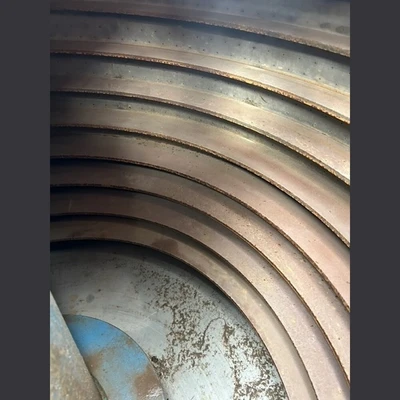

Engineered Placer Bowl Designed for Max Recovery even with Larger Feed Sizes, Fluctuations in Feed Rates, and Variations of Particle Sizes Common in Placer Mining Applications

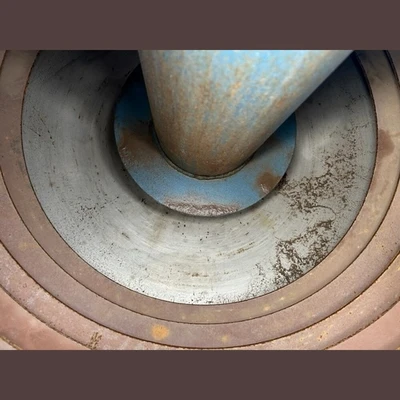

Stainless Steel Bowl Help Prevent Plugging and Provide Precise Control of Water Pressure and Flow to Ensure Efficient Recovery
Heavy Duty Design and Very Limited Wear Parts to Ensure Durability for Tough and Remote Mining Conditions around the World

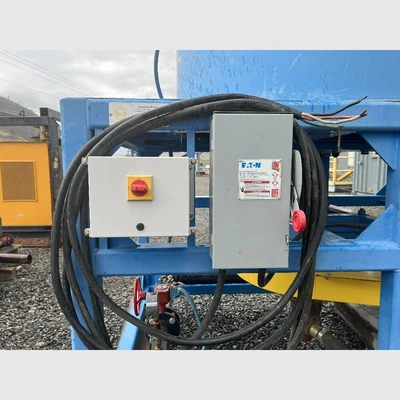

Supplied Standard with a Simple Electrical Start/Stop and Single Water Valve Control for Start-Up, Shut-Down, and Clean-Outs to Reduce Operational Complexity. Automated Controls are Optional
Engineered to Recover Over 95% of Gold as Fine as 44 Micron (325 Mesh) under Correct Operating Procedures
Recovers Fine Flat and Flake Gold
It is a Semi-Batch Concentrator and it can be Operated Up To 24 Hours Between Clean-Outs which Only Take Minutes
Engineered Placer Bowl Designed for Max Recovery even with Larger Feed Sizes, Fluctuations in Feed Rates, and Variations of Particle Sizes Common in Placer Mining Applications
Stainless Steel Bowl Help Prevent Plugging and Provide Precise Control of Water Pressure and Flow to Ensure Efficient Recovery
Heavy Duty Design and Very Limited Wear Parts to Ensure Durability for Tough and Remote Mining Conditions around the World
Supplied Standard with a Simple Electrical Start/Stop and Single Water Valve Control for Start-Up, Shut-Down, and Clean-Outs to Reduce Operational Complexity. Automated Controls are Optional
Specifications:
Max Capacity: 120 TPH
Max Capacity within Max Recovery Range: 60 TPH (Approximately)
Max Particle Feed Size: 6mm
Recommended Feed Particles Size: 5mm Minus
Motor: 25 HP
Max Capacity: 120 TPH
Max Capacity within Max Recovery Range: 60 TPH (Approximately)
Max Particle Feed Size: 6mm
Recommended Feed Particles Size: 5mm Minus
Motor: 25 HP
Hz: 50Hz or 60Hz
Voltage: Per Customer Request
Water Required: 310 GPM @ 35 PSI
G-Force: 70 G'S
Weight: 2,804 kg (6,182 lbs)
Dimensions:
Length: 2.21m (7ft 3in)
Width: 1.78m (5ft 10in)
Height: 2.50m  (8ft 2.25in)
Length: 2.21m (7ft 3in)
Width: 1.78m (5ft 10in)
Height: 2.50m  (8ft 2.25in)
Made in Canada
Worldwide Shipping Available
