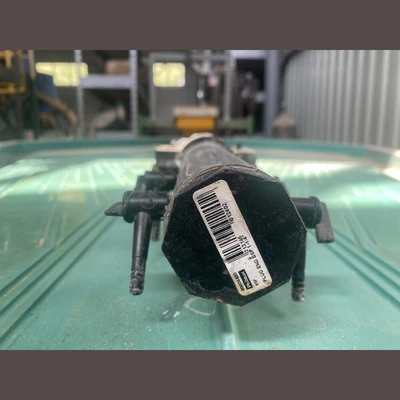

USED 2018 MINERAL TECHNOLOGIES 1000

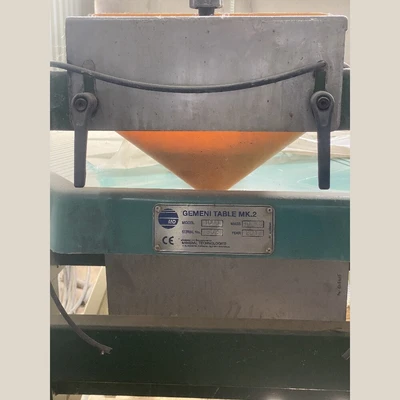

Gemeni MK.2 Gold Concentrating Table
Make: Mineral Technologies
Series: Gemeni Table Mark 2
Model: 1000
Year: 2018
Serial: 502
Condition: "Like New – Used Approx. 1 Week”
General Model Specifications:
Capacity: 1,000 Lbs Per Hour (455 Kg per Hour)
Feed Size: 800-1000 Microns
Feed Density Recommended: 60-70% Solids
Wash Water Requirements: 38 Liters Per Minute (10 US Gallons Per Minute)
Wash Water Pressure: 30kPa

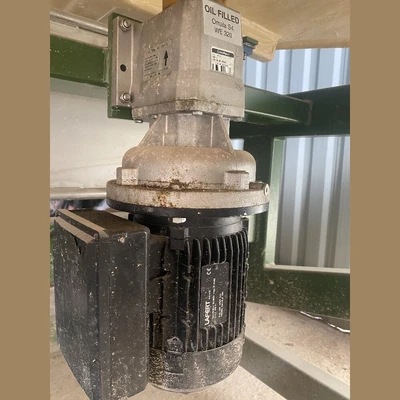

Drive: Lafert Electric Motor
Model: LME80L4
Power Output: 1HP (0.75kW)
RPM: 1445
Voltage: 240 Volt
Amperage: 5.1 Amp
Frequency: 50Hz
Phase: Single
Reducer: Bonfiglioli
Model: C 12 2 P 4.9
Input RPM: 1455
Output RPM: 299
Ratio: 4.86-1
Capacity: 1,000 Lbs Per Hour (455 Kg per Hour)
Feed Size: 800-1000 Microns
Feed Density Recommended: 60-70% Solids
Wash Water Requirements: 38 Liters Per Minute (10 US Gallons Per Minute)
Wash Water Pressure: 30kPa
Drive: Lafert Electric Motor
Model: LME80L4
Power Output: 1HP (0.75kW)
RPM: 1445
Voltage: 240 Volt
Amperage: 5.1 Amp
Frequency: 50Hz
Phase: Single
Model: LME80L4
Power Output: 1HP (0.75kW)
RPM: 1445
Voltage: 240 Volt
Amperage: 5.1 Amp
Frequency: 50Hz
Phase: Single
Reducer: Bonfiglioli
Model: C 12 2 P 4.9
Input RPM: 1455
Output RPM: 299
Ratio: 4.86-1
Model: C 12 2 P 4.9
Input RPM: 1455
Output RPM: 299
Ratio: 4.86-1
Overall Dimensions:
Length: 2,781mm (109.5in)
Width: 1,714mm (67.5in)
Height: 1,229mm (48.4in)
Weight: 320 Kg
Length: 2,781mm (109.5in)
Width: 1,714mm (67.5in)
Height: 1,229mm (48.4in)
Weight: 320 Kg
Location: Europe
