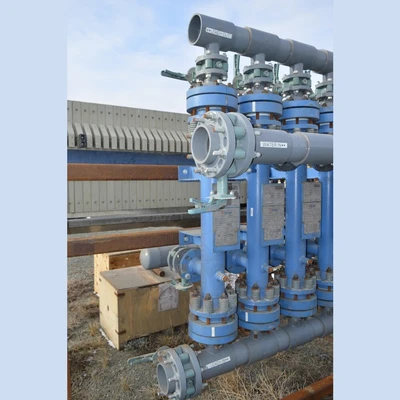

CG Thermal SCI Ceramic Heat Exchanger

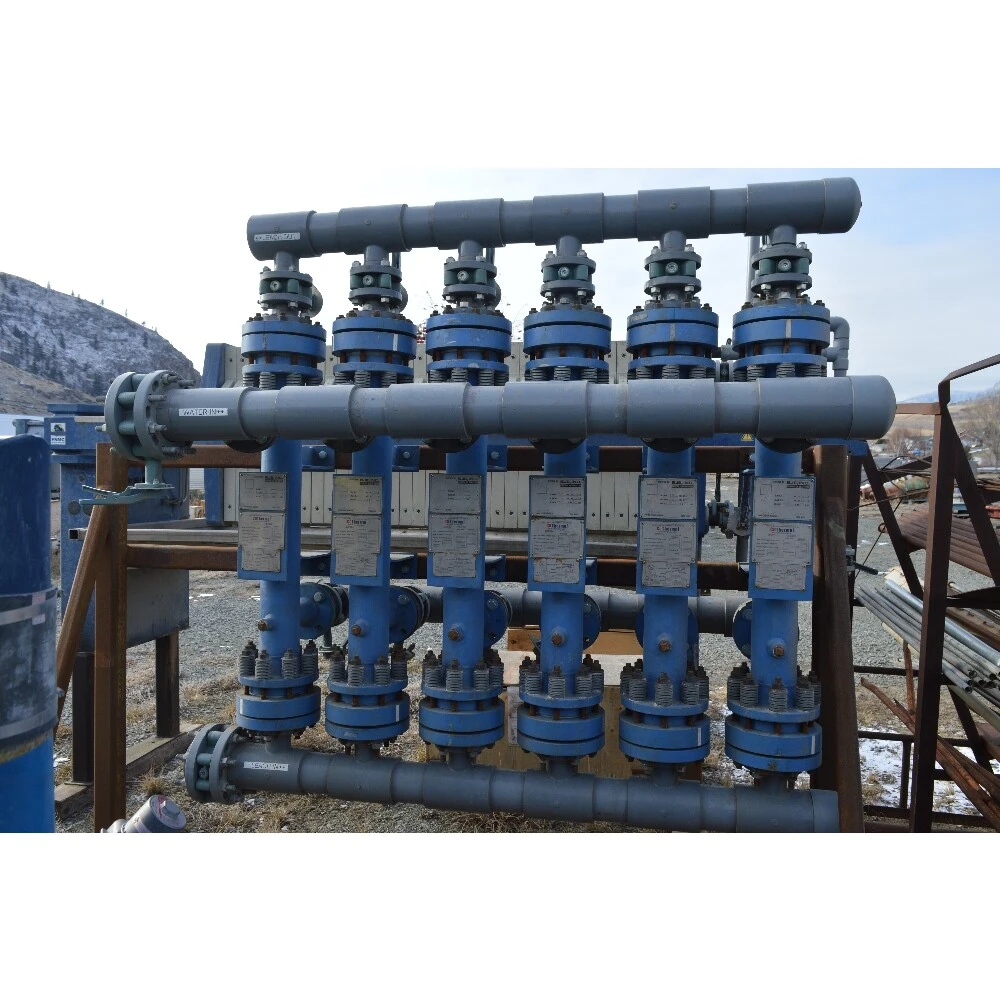

Rack of 6 Heat Exchangers

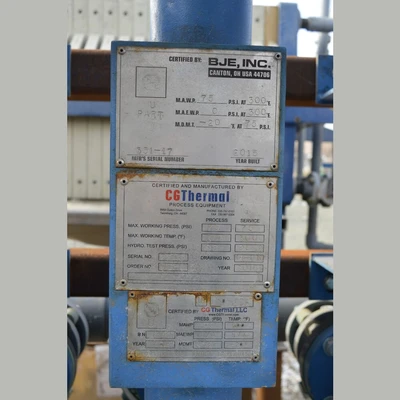

Max Working Pressure (PSI): Process 75 Service 75
Max Working Temp (F°): Process 300 Service 300
Hydro Test Pressure (PSI): Process 98 Service 98
Cylinder Length: 43 in.

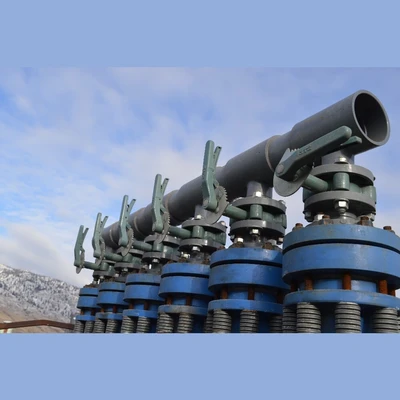

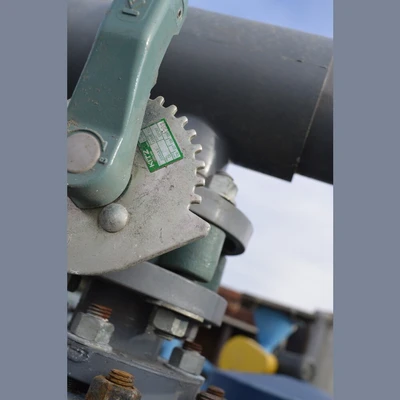

Top Leach Out has 2 in. Butterfly Vales on each Heat Exchanger
2 in. Butterfly Vales
Qty: 6
Model: 200DJLE
Flange: ASME 150
Disc: D1
Seat: EPDME
Qty: 6
Model: 200DJLE
Flange: ASME 150
Disc: D1
Seat: EPDME

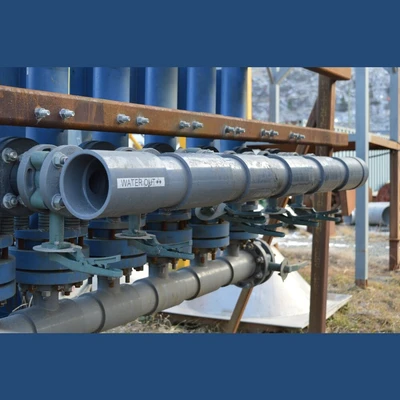

Water Out has 4 in. Butterfly Valve
4 in. Butterfly Valves
Qty: 1
Brand: KITZ
Model: 200DJL
Flange: ASME 150
Disc: D1
Seat: BUNA
Qty: 1
Brand: KITZ
Model: 200DJL
Flange: ASME 150
Disc: D1
Seat: BUNA
Water Out Port has 2 in. Butterfly Valves on each Heat Exchanger
2 in. Butterfly Valves
Qty: 6
Model: 200DJLE
Flange: ASME 150
Disc: DI
Seat: EPDME
Qty: 6
Model: 200DJLE
Flange: ASME 150
Disc: DI
Seat: EPDME
Leach in Bottom has 4 in. Butterfly Valve
4 in. Butterfly Vales
Qty: 1
Brand: KITZ
Model: 200DJ
Flange: ASME 150
Disc: S1
Seat:  BUNA
Qty: 1
Brand: KITZ
Model: 200DJ
Flange: ASME 150
Disc: S1
Seat:  BUNA
Location: British Columbia, Canada
