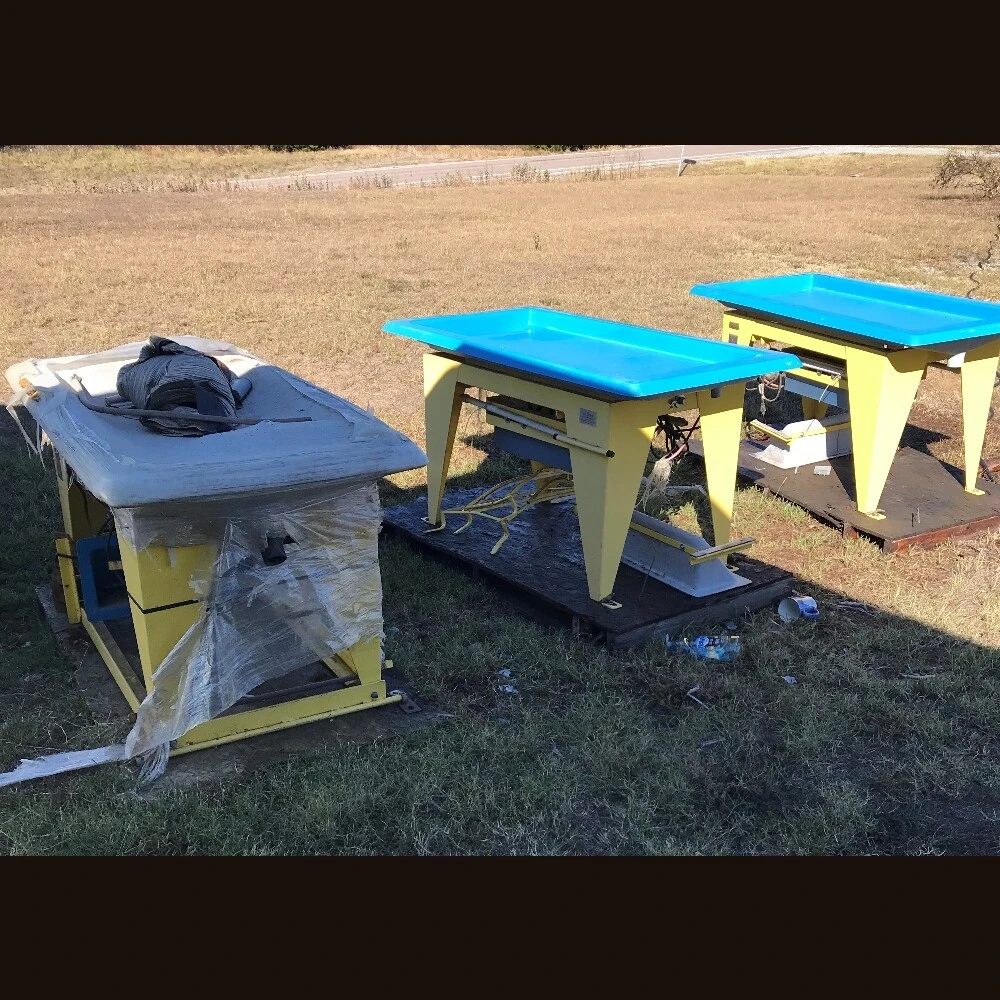

USED 2013 ACTION MINING M7

Action Mining M7 Wave Tables
Quantity: 3 Units
Make: Action Mining
Model: M7
Type: Micron Mill Wave Table
Year: 2013
Condition: 3 Unused - Still on Original Pallet
General Model Specifications:
Capacity: 1,500-2,500 Lbs. of Head Ore Material Per Hour
Recovery of Gold Particles: Between 10 Mesh and Microscopic
80-99% of Gold Recovery from Classified Black Sands
92-99% Gold Recovery From Small Batches of Classified Black Sands
Water Requirements: 5-12 GPM
2 Adjustable Water Spray Bars
Table Top and Hopper Constructed of Fiberglass
Vacuum-Sealed and Gel-Coated in Blue Finish
Adjustable Table Top
Drive: 0.5HP Electric Motor Drive
Voltage: 110VAC
Frequency: 60 Hz
Steel Frame with Yellow Powder Coated Epoxy Paint
Capacity: 1,500-2,500 Lbs. of Head Ore Material Per Hour
Recovery of Gold Particles: Between 10 Mesh and Microscopic
80-99% of Gold Recovery from Classified Black Sands
92-99% Gold Recovery From Small Batches of Classified Black Sands
Recovery of Gold Particles: Between 10 Mesh and Microscopic
80-99% of Gold Recovery from Classified Black Sands
92-99% Gold Recovery From Small Batches of Classified Black Sands
80-99% of Gold Recovery from Classified Black Sands
92-99% Gold Recovery From Small Batches of Classified Black Sands
Water Requirements: 5-12 GPM
2 Adjustable Water Spray Bars
2 Adjustable Water Spray Bars
Table Top and Hopper Constructed of Fiberglass
Vacuum-Sealed and Gel-Coated in Blue Finish
Adjustable Table Top
Vacuum-Sealed and Gel-Coated in Blue Finish
Adjustable Table Top
Drive: 0.5HP Electric Motor Drive
Voltage: 110VAC
Frequency: 60 Hz
Steel Frame with Yellow Powder Coated Epoxy Paint
Shipping Information:
Dimensions:
Length: 61in (1.55m)
Width: 32in (0.81m)
Height: 39in (0.99m)
Weight: 409 lbs. (186 kg)
Dimensions:
Length: 61in (1.55m)
Width: 32in (0.81m)
Height: 39in (0.99m)
Weight: 409 lbs. (186 kg)
Length: 61in (1.55m)
Width: 32in (0.81m)
Height: 39in (0.99m)
Weight: 409 lbs. (186 kg)
Location: South Central USA
