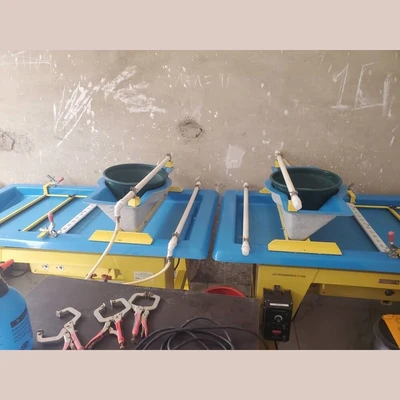

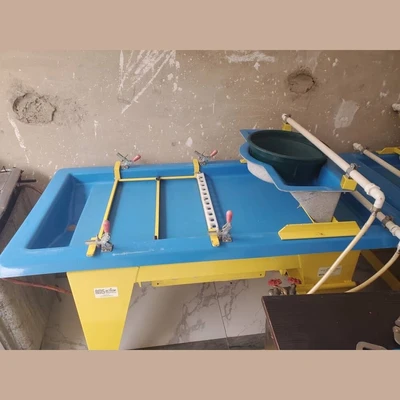

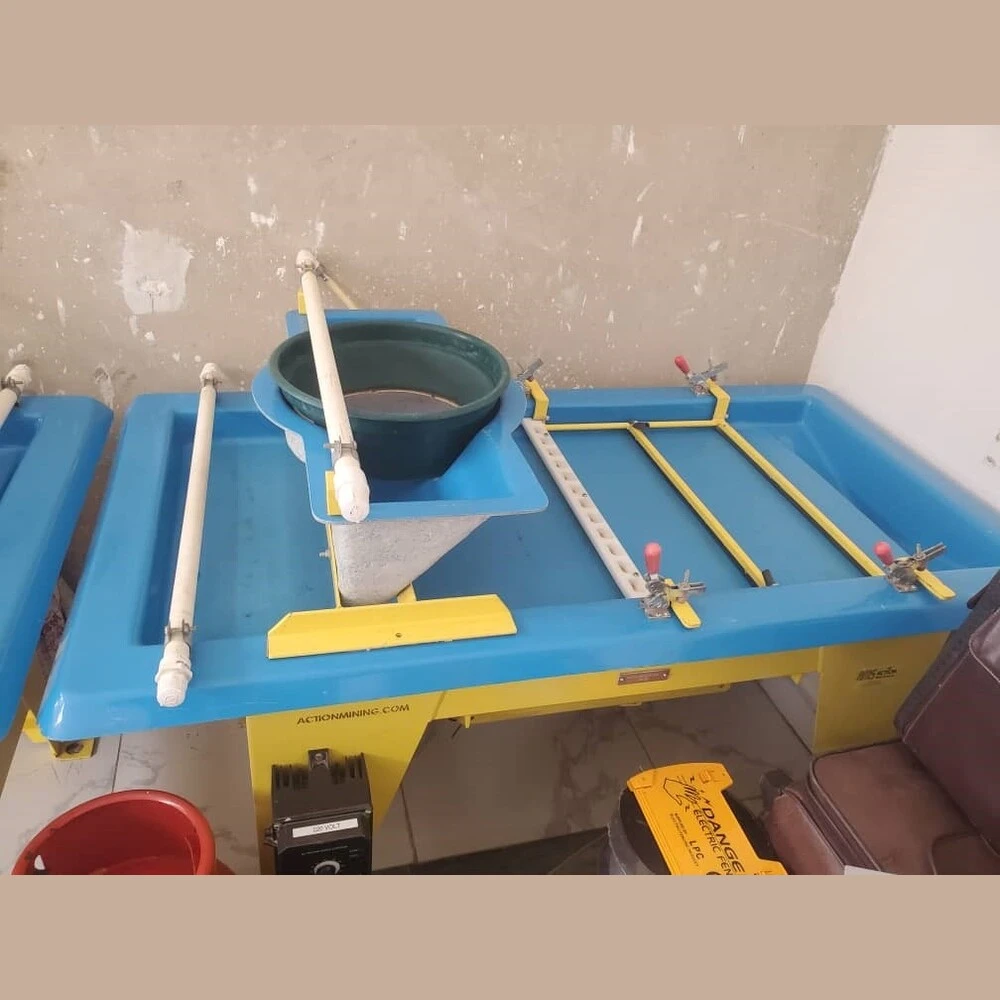

Action Mining M7 Wave Table
Quantity: 2 Units Available
Make: Action Mining
Model: M7 Wave Table
Year: 2017
Condition: Used, Reported in Good Condition
General Model Specifications:
Capacity: 1,500 - 2,500 lbs. of Head Ore Material Per Hour
Recovery of Gold Particles: Between 10 Mesh and Microscopic
80-99% of Gold Recovery from Classified Black Sands
92-99% of Gold Recovery From Small Batches of Classified Black Sands
Water Requirements: 5-12 GPM
2 Adjustable Water Spray Bars
Table Top and Hopper Constructed of Fiberglass
Vacuum-Sealed and Gel-Coated in Blue Finish
Adjustable Table Top
Steel Frame with Yellow Powder Coated Epoxy Paint
Drive: Electric Motor
Power Output: 0.5HP
Voltage: 220 Volt
Capacity: 1,500 - 2,500 lbs. of Head Ore Material Per Hour
Recovery of Gold Particles: Between 10 Mesh and Microscopic
80-99% of Gold Recovery from Classified Black Sands
92-99% of Gold Recovery From Small Batches of Classified Black Sands
80-99% of Gold Recovery from Classified Black Sands
92-99% of Gold Recovery From Small Batches of Classified Black Sands
Water Requirements: 5-12 GPM
2 Adjustable Water Spray Bars
2 Adjustable Water Spray Bars
Table Top and Hopper Constructed of Fiberglass
Vacuum-Sealed and Gel-Coated in Blue Finish
Adjustable Table Top
Vacuum-Sealed and Gel-Coated in Blue Finish
Adjustable Table Top
Steel Frame with Yellow Powder Coated Epoxy Paint
Drive: Electric Motor
Power Output: 0.5HP
Voltage: 220 Volt
Power Output: 0.5HP
Voltage: 220 Volt
Shipping Information: (Approx.)
Length: 61in (1.55m)
Width: 32in (0.81m)
Height: 39in (0.99m)
Weight: 409 lbs. (186Kgs)
Length: 61in (1.55m)
Width: 32in (0.81m)
Height: 39in (0.99m)
Weight: 409 lbs. (186Kgs)
Location: Africa
