USED CANYON INDUSTRIES A208990001

55kW Canyon Industries Hydro Plant
Make: Canyon Industries
Type: Crossflow Turbine Hydro Plant
Condition: Used Condition
Power Output: 55kW (68.75kVA)
Rotating Speed: 1200 RPM
Voltage:
277/480 Volt
139/240 Volt
277/480 Volt
139/240 Volt
Current:
90 Amps @ 277/480 Volt
180 Amps @ 139/240 Volt
90 Amps @ 277/480 Volt
180 Amps @ 139/240 Volt
Frequency: 60Hz
Phase: 3-Phase
Transformer: 45kVA Transformer
Voltage: 480 Volt to 208 Volt
Voltage: 480 Volt to 208 Volt

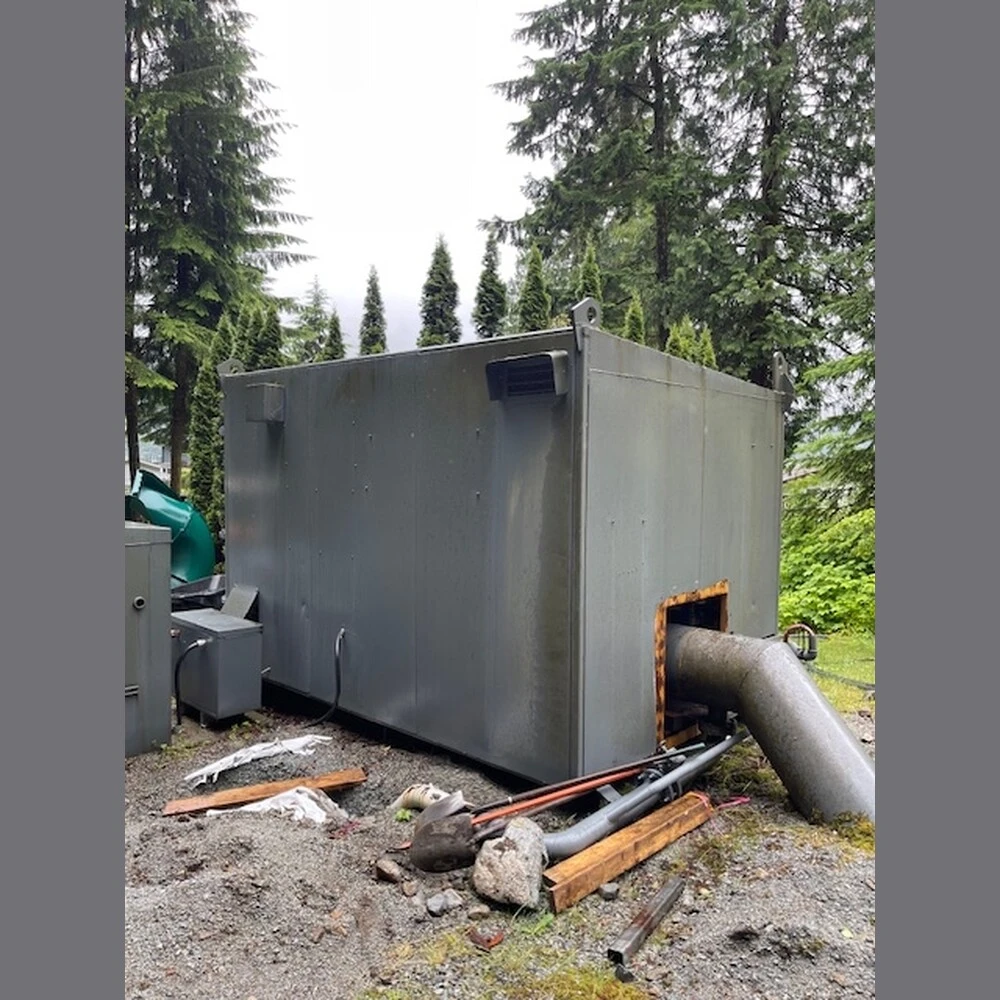

Previous Penstock: Approx. 130ft of 12in Dia. HDPE Pipe
Previous Flow Rate: 100 Gallons Per Second (6,000 Gallons Per Minute)
Previous Required Head: 100ft
Description:
Turbine:
Turbine: Canyon Custom Crossflow 16" x 12"
Nozzle: Rotating Gate 16.25 Wide
Bearing: Browning SFC 1000 E & NE Spherical Roller 2 15/16" Flange Mount, Grease Lub
Inner Mainshaft Seals: Slinger/Labyrinth Type, CR29223
Drive Assembly: HTD P48-14M115 (Gen.), P80-14115 (Turbine), 2450-14115 (Belt)
Generator: KATO Model 6P2-0688, 60kW, 480 VAC, 1200 RPM, 3-Phase, SER#94299

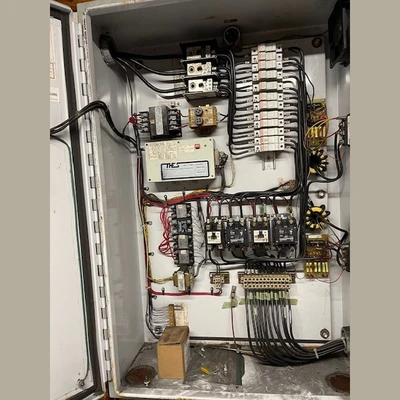

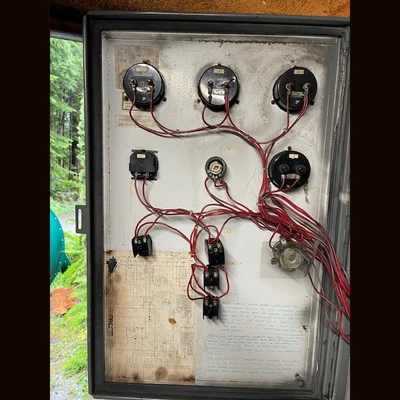

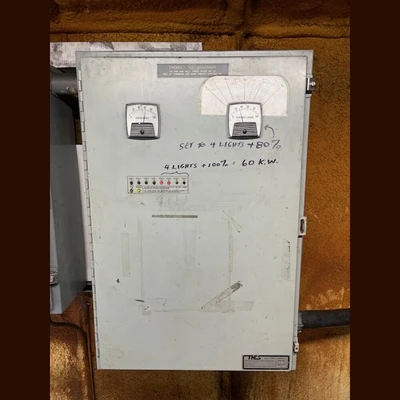

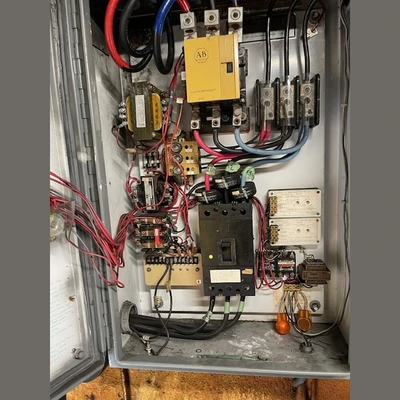

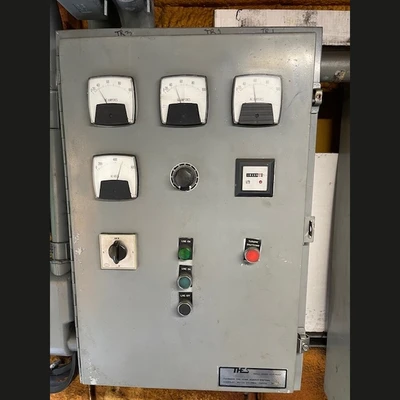

Controls: Thomson & Howe Product K-2, with Frequency Guard, and Generator Control Panel
Overspeed Control: Weight Actuated Gate Closure
Intake: 18" 150# Bolt Flange, Perpendicular

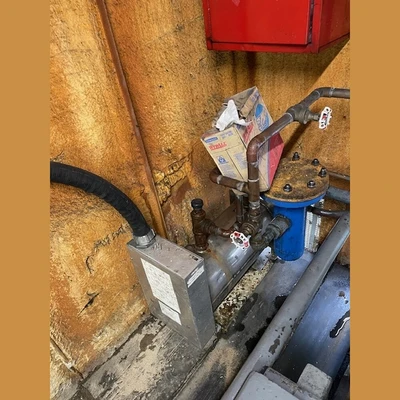

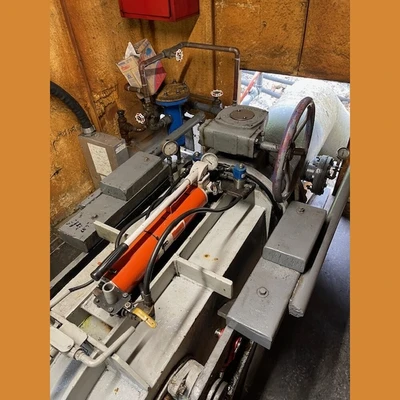

Nozzle Control: OTC Handpump, Model P158, Dual (2) Asco N.O. Solenoid Valve, Model 8262A261, Hydroline Hydraulic Cylinder, (2) 2 x 8"
Dump Load: Thomson & Howe 60kW, Stainless Steel
Nozzle Gate: Bearing Fafnir VCJT1 15/16, Seals CR# 19264

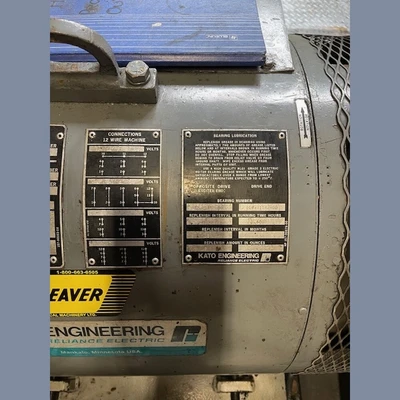

Generator:
Type: Brushless
Code: 6P2-0688
Model: A208990001
Type: 20899
kW/kVA: 60kW (75kVA)
Volts: 277/480
P.F.: 0.8
Phase: 3
Wire: 12
Pole: 6
Hertz: 60
RPM: 1200
Rotation: CWFDE
Enclosure: Open Drip Proof
Temp Rise: 80°C
Turbine:
Turbine: Canyon Custom Crossflow 16" x 12"
Nozzle: Rotating Gate 16.25 Wide
Bearing: Browning SFC 1000 E & NE Spherical Roller 2 15/16" Flange Mount, Grease Lub
Inner Mainshaft Seals: Slinger/Labyrinth Type, CR29223
Drive Assembly: HTD P48-14M115 (Gen.), P80-14115 (Turbine), 2450-14115 (Belt)
Generator: KATO Model 6P2-0688, 60kW, 480 VAC, 1200 RPM, 3-Phase, SER#94299
Controls: Thomson & Howe Product K-2, with Frequency Guard, and Generator Control Panel
Overspeed Control: Weight Actuated Gate Closure
Intake: 18" 150# Bolt Flange, Perpendicular
Nozzle Control: OTC Handpump, Model P158, Dual (2) Asco N.O. Solenoid Valve, Model 8262A261, Hydroline Hydraulic Cylinder, (2) 2 x 8"
Dump Load: Thomson & Howe 60kW, Stainless Steel
Nozzle Gate: Bearing Fafnir VCJT1 15/16, Seals CR# 19264
Turbine: Canyon Custom Crossflow 16" x 12"
Nozzle: Rotating Gate 16.25 Wide
Bearing: Browning SFC 1000 E & NE Spherical Roller 2 15/16" Flange Mount, Grease Lub
Inner Mainshaft Seals: Slinger/Labyrinth Type, CR29223
Drive Assembly: HTD P48-14M115 (Gen.), P80-14115 (Turbine), 2450-14115 (Belt)
Generator: KATO Model 6P2-0688, 60kW, 480 VAC, 1200 RPM, 3-Phase, SER#94299
Controls: Thomson & Howe Product K-2, with Frequency Guard, and Generator Control Panel
Overspeed Control: Weight Actuated Gate Closure
Intake: 18" 150# Bolt Flange, Perpendicular
Nozzle Control: OTC Handpump, Model P158, Dual (2) Asco N.O. Solenoid Valve, Model 8262A261, Hydroline Hydraulic Cylinder, (2) 2 x 8"
Dump Load: Thomson & Howe 60kW, Stainless Steel
Nozzle Gate: Bearing Fafnir VCJT1 15/16, Seals CR# 19264
Generator:
Type: Brushless
Code: 6P2-0688
Model: A208990001
Type: 20899
kW/kVA: 60kW (75kVA)
Volts: 277/480
P.F.: 0.8
Phase: 3
Wire: 12
Pole: 6
Hertz: 60
RPM: 1200
Rotation: CWFDE
Enclosure: Open Drip Proof
Temp Rise: 80°C
Type: Brushless
Code: 6P2-0688
Model: A208990001
Type: 20899
kW/kVA: 60kW (75kVA)
Volts: 277/480
P.F.: 0.8
Phase: 3
Wire: 12
Pole: 6
Hertz: 60
RPM: 1200
Rotation: CWFDE
Enclosure: Open Drip Proof
Temp Rise: 80°C
Location: Western Canada
