USED ORO INDUSTRIES LOW-G HORIZONTAL CENTRIFUGE

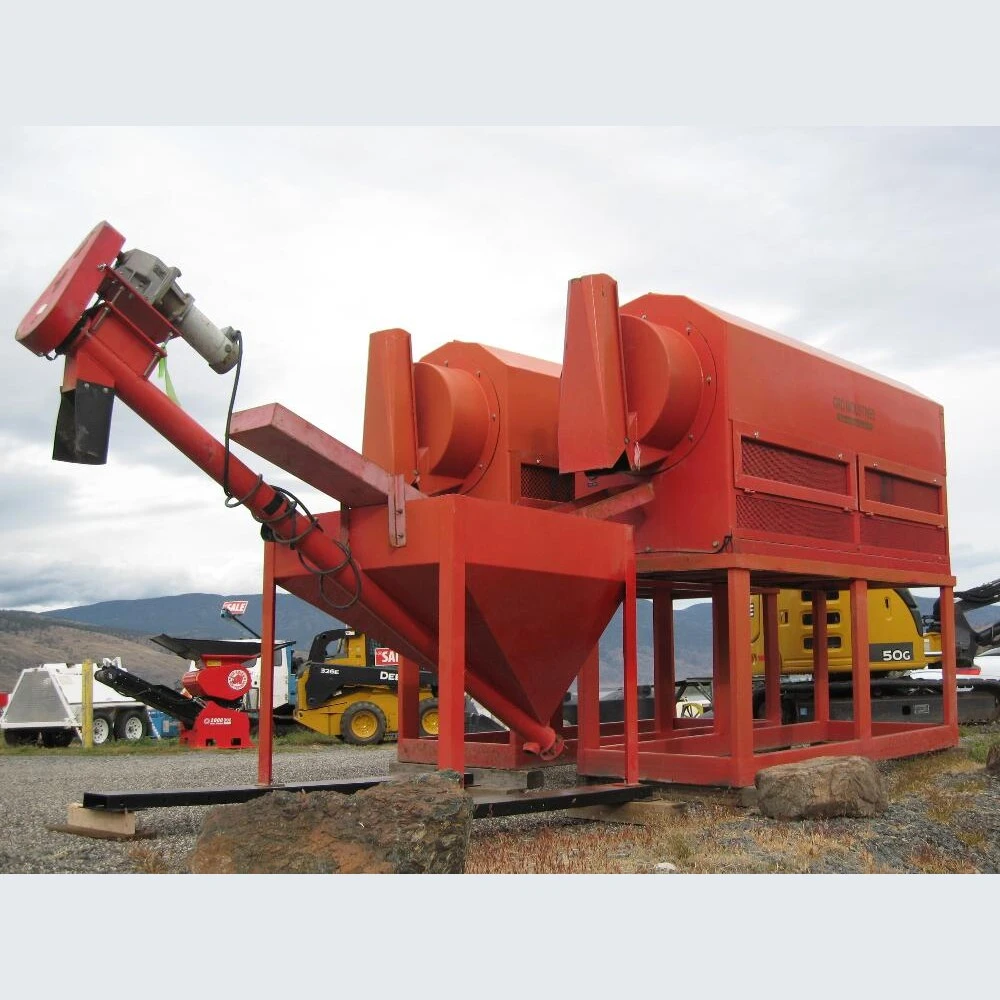

Oro Industries Centrifuge and Concentrator Package
Make: Oro Industries
Type: Gold Concentrating
Condition: Used Condition
Consists Of:
(2) 30in Dia. Oro Industries Low-G Horizontal Centrifuges
(1) 16in Dia. Oro Industries Reverse Spiral Concentrator
(1) Oro Industries Auger Feeder
(2) 30in Dia. Oro Industries Low-G Horizontal Centrifuges
(1) 16in Dia. Oro Industries Reverse Spiral Concentrator
(1) Oro Industries Auger Feeder

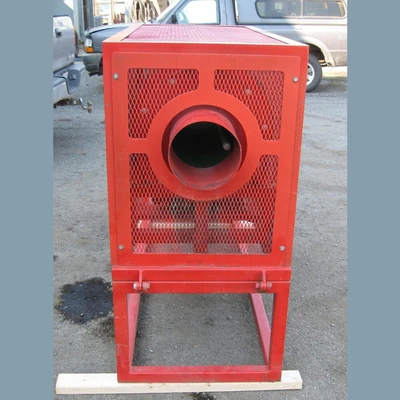

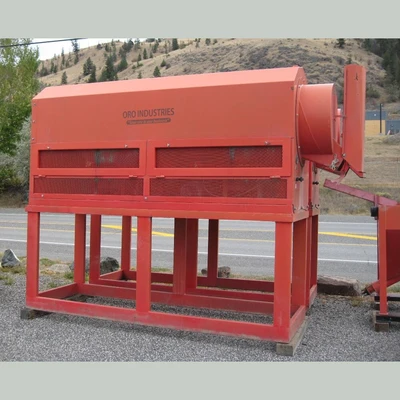

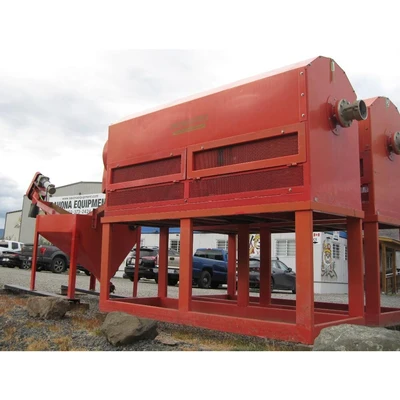

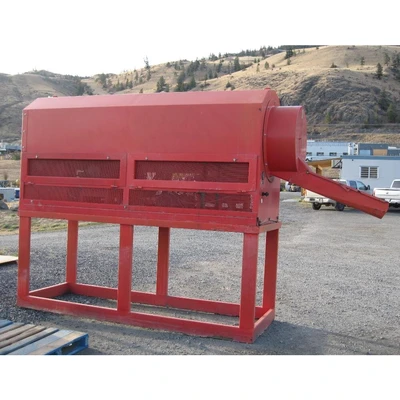

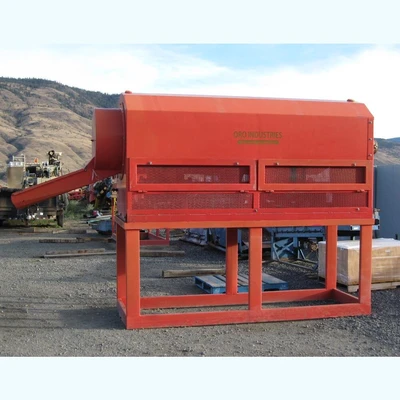

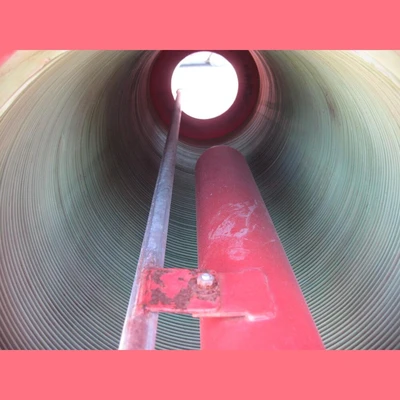

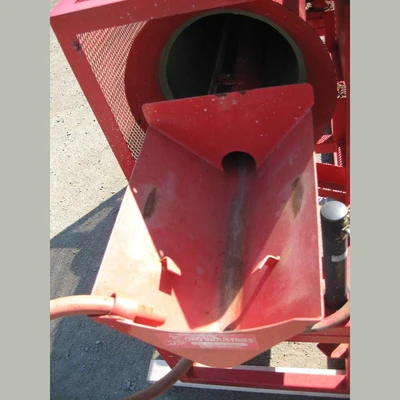

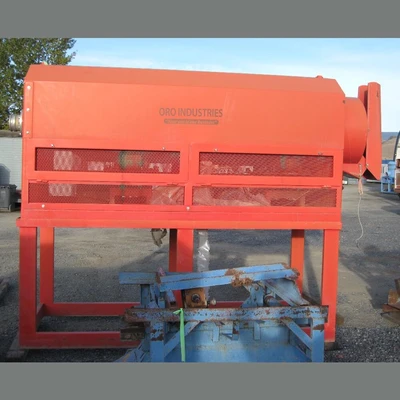

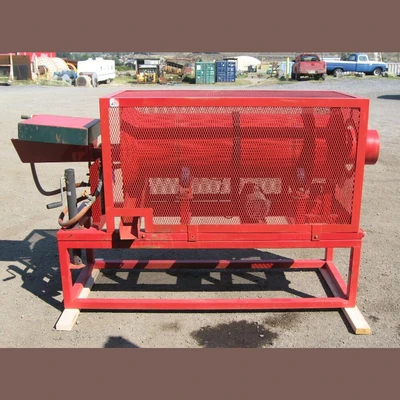

30in Dia. Oro Industries Low-G Horizontal Centrifuge
Quantity: (2) Units Available
Make: Oro Industries
Model: Low-G Horizontal Centrifuge
Type: Gold Concentrator
Style: Primary Batch-Type Concentrator for Both Alluvial and Milled Hard Rock Ores
Condition: Used, Reported in Good Working Condition
Size: 30in Diameter
Recovery: 99% Recovery of Free Gold Down to 100 Mesh - 80% to 90% Recovery Down to 200 Mesh
Classified Material Feed: 1/4” or 3/8”
Production Capacity: 40 TPH  (25 Cubic Yards or 20 Cubic Meters)
Water Consumption: 200-400 GPM (755-1500 Liters Per Hour)
Concentrate Capacity: 50 Gallons (880 Lbs./200 Liters)

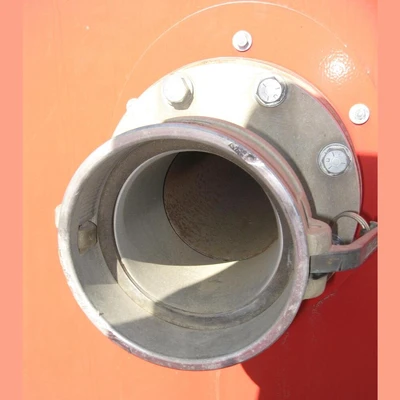

Intake: 6in Dia.
Discharge: 6in Dia.

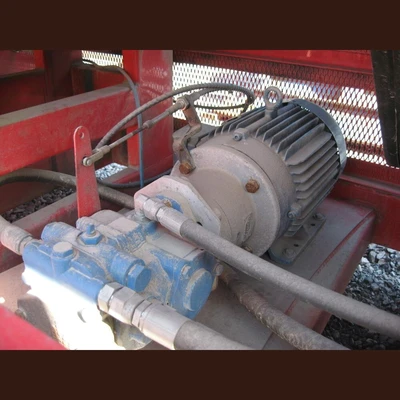

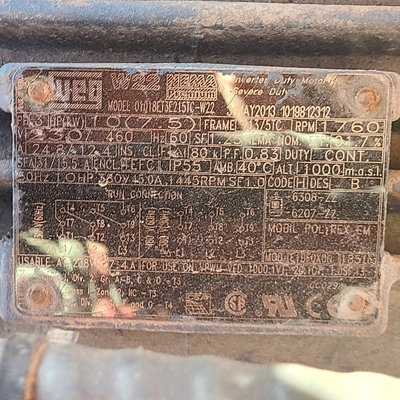

Drive: Electric Over Hydraulic

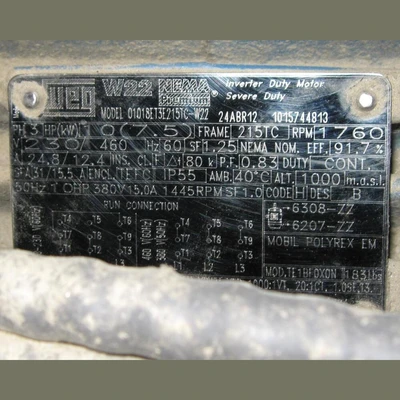

Power Output: 10HP
Voltage: 230/460 Volt
Frequency: 60Hz
Phase: 3-Phase

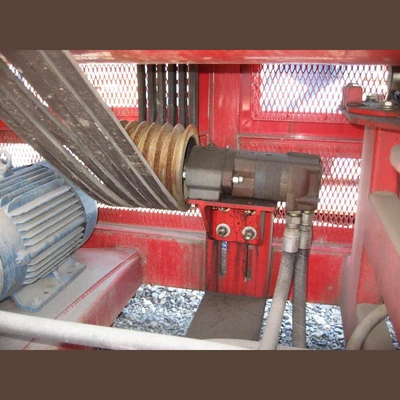

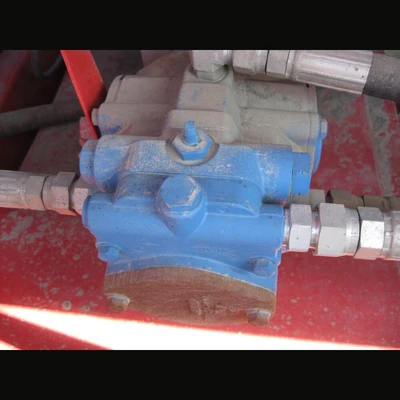

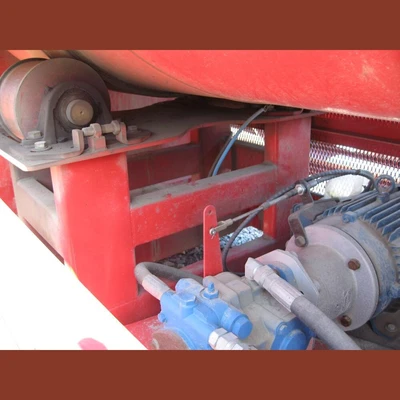

Variable Speed Hydraulic Drive with On-Board Hydraulic Tank, Pump and Filter
Overall Dimensions:
Length: 158.5in
Width: 86.25in
Height: 68in
Shipping Weight: 4,200 lbs.
Quantity: (2) Units Available
Make: Oro Industries
Model: Low-G Horizontal Centrifuge
Type: Gold Concentrator
Style: Primary Batch-Type Concentrator for Both Alluvial and Milled Hard Rock Ores
Condition: Used, Reported in Good Working Condition
Size: 30in Diameter
Recovery: 99% Recovery of Free Gold Down to 100 Mesh - 80% to 90% Recovery Down to 200 Mesh
Classified Material Feed: 1/4” or 3/8”
Production Capacity: 40 TPH  (25 Cubic Yards or 20 Cubic Meters)
Water Consumption: 200-400 GPM (755-1500 Liters Per Hour)
Concentrate Capacity: 50 Gallons (880 Lbs./200 Liters)
Intake: 6in Dia.
Discharge: 6in Dia.
Drive: Electric Over Hydraulic
Power Output: 10HP
Voltage: 230/460 Volt
Frequency: 60Hz
Phase: 3-Phase
Variable Speed Hydraulic Drive with On-Board Hydraulic Tank, Pump and Filter
Power Output: 10HP
Voltage: 230/460 Volt
Frequency: 60Hz
Phase: 3-Phase
Variable Speed Hydraulic Drive with On-Board Hydraulic Tank, Pump and Filter
Overall Dimensions:
Length: 158.5in
Width: 86.25in
Height: 68in
Shipping Weight: 4,200 lbs.
Length: 158.5in
Width: 86.25in
Height: 68in
Shipping Weight: 4,200 lbs.

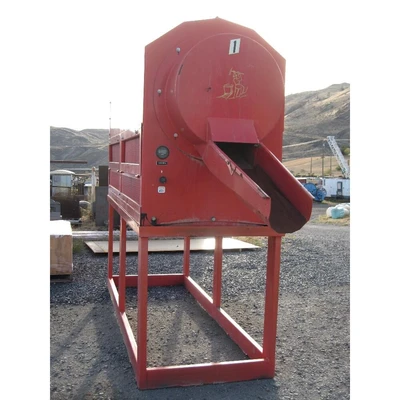

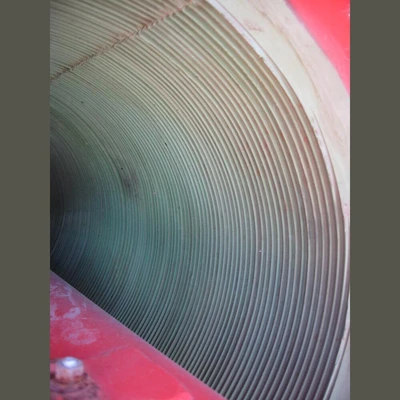

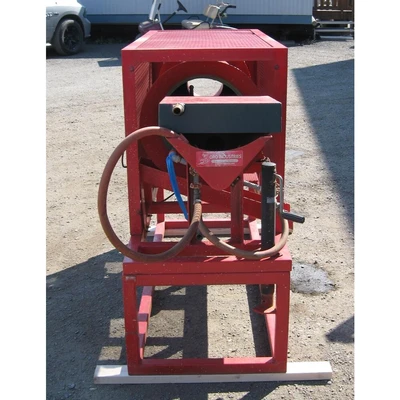

Oro Industries 16in Dia. Reverse Spiral Concentrator
Make: Oro Industries
Model: 16in Reverse Multi-Helix Spiral Concentrator
Style: Cleaner
Description: This is a Continuous or Batch Feed Secondary Concentrator for Processing Primary Sluice Concentrate, Primary Jig Concentrate, Centrifuge Concentrate, and Milled Hard Rock Ores. Setup as a Cleaner, the 16" Spiral Concentrator is Perfect for the Application of Mercury Recovery and Tailings Projects. For the Highest Production Performance, it is Recommended to Classify Material to Minus 1/4 inch
Condition: Used Condition
Production Rate: 1-2 TPH
Water Consumption: 15-20 GPM @ 20-40 PSI
Feed Hopper: 13.5in Wide x 18in Long x 5in Deep
Water Hose Hook-Up
Collection Pan: 16in x 16in x 3-7/8in Deep
External 1in Hose Barb
Angle Adjustment: Hand Crank
Powder Coat Finish

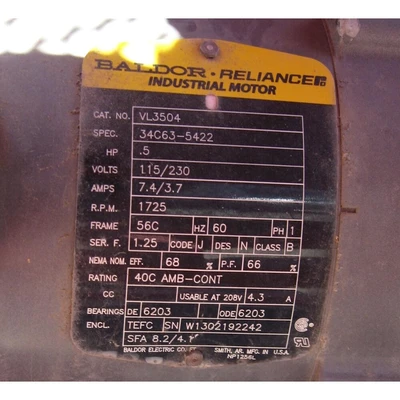

Drive: Baldor Reliance Electric Motor
Power Output: 0.5HP
Rotation Speed: 1725RPM
Voltage: 115/230 Volts
Speed Reducer: Tigear²
Ratio: 30:1
Overall Dimensions:
Length: 90in
Width: 30in
Height: 53in
Make: Oro Industries
Model: 16in Reverse Multi-Helix Spiral Concentrator
Style: Cleaner
Description: This is a Continuous or Batch Feed Secondary Concentrator for Processing Primary Sluice Concentrate, Primary Jig Concentrate, Centrifuge Concentrate, and Milled Hard Rock Ores. Setup as a Cleaner, the 16" Spiral Concentrator is Perfect for the Application of Mercury Recovery and Tailings Projects. For the Highest Production Performance, it is Recommended to Classify Material to Minus 1/4 inch
Condition: Used Condition
Production Rate: 1-2 TPH
Water Consumption: 15-20 GPM @ 20-40 PSI
Feed Hopper: 13.5in Wide x 18in Long x 5in Deep
Water Hose Hook-Up
Water Hose Hook-Up
Collection Pan: 16in x 16in x 3-7/8in Deep
External 1in Hose Barb
External 1in Hose Barb
Angle Adjustment: Hand Crank
Powder Coat Finish
Drive: Baldor Reliance Electric Motor
Power Output: 0.5HP
Rotation Speed: 1725RPM
Voltage: 115/230 Volts
Speed Reducer: Tigear²
Ratio: 30:1
Power Output: 0.5HP
Rotation Speed: 1725RPM
Voltage: 115/230 Volts
Speed Reducer: Tigear²
Ratio: 30:1
Ratio: 30:1
Overall Dimensions:
Length: 90in
Width: 30in
Height: 53in
Length: 90in
Width: 30in
Height: 53in

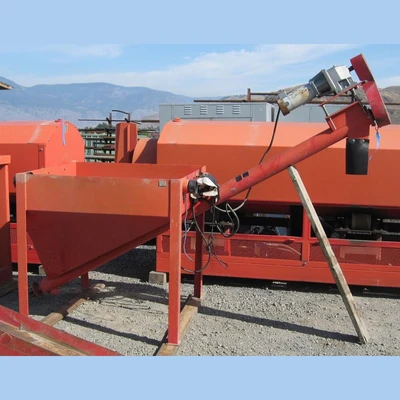

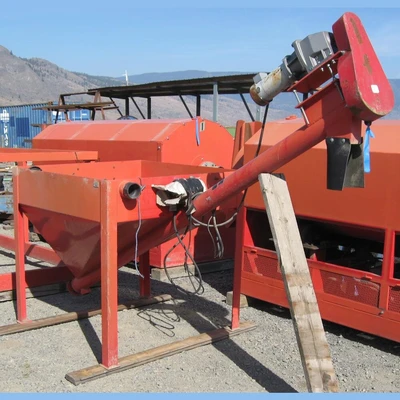

Auger Feeder:

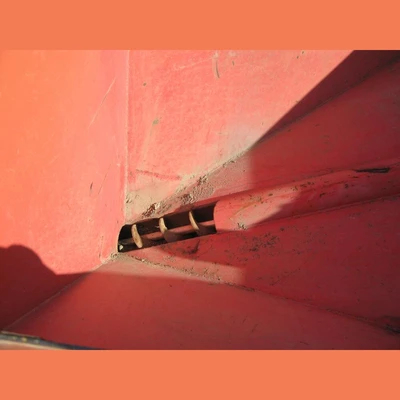

Hopper Dimensions: 4ft Wide x 4ft Long x 37.5in Deep Tapered

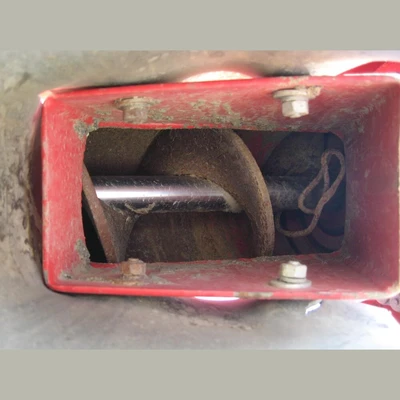

6in OD Auger Pipe
Discharge Height: 61in High
Discharge Chute: 6.25in x 3.625in
Chain Driven through Nord SK 22 VL N56C Reducer
VFD Controlled: KB Electronics Model KBPW240D Variable Frequency Drive
Overall Dimensions:
Length: 116in
Width: 50in
Height: 88in
Hopper Dimensions: 4ft Wide x 4ft Long x 37.5in Deep Tapered
6in OD Auger Pipe
Discharge Height: 61in High
Discharge Chute: 6.25in x 3.625in
Chain Driven through Nord SK 22 VL N56C Reducer
VFD Controlled: KB Electronics Model KBPW240D Variable Frequency Drive
Overall Dimensions:
Length: 116in
Width: 50in
Height: 88in
Length: 116in
Width: 50in
Height: 88in
Location: Savona, British Columbia, Canada
