USED GENERAL ELECTRIC 7 G 85

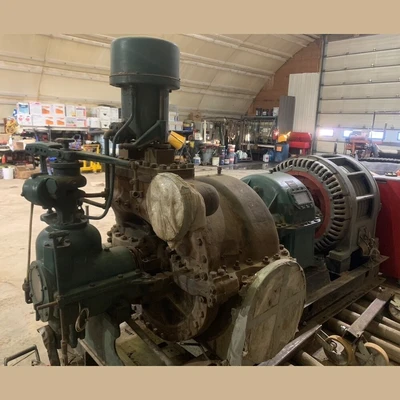

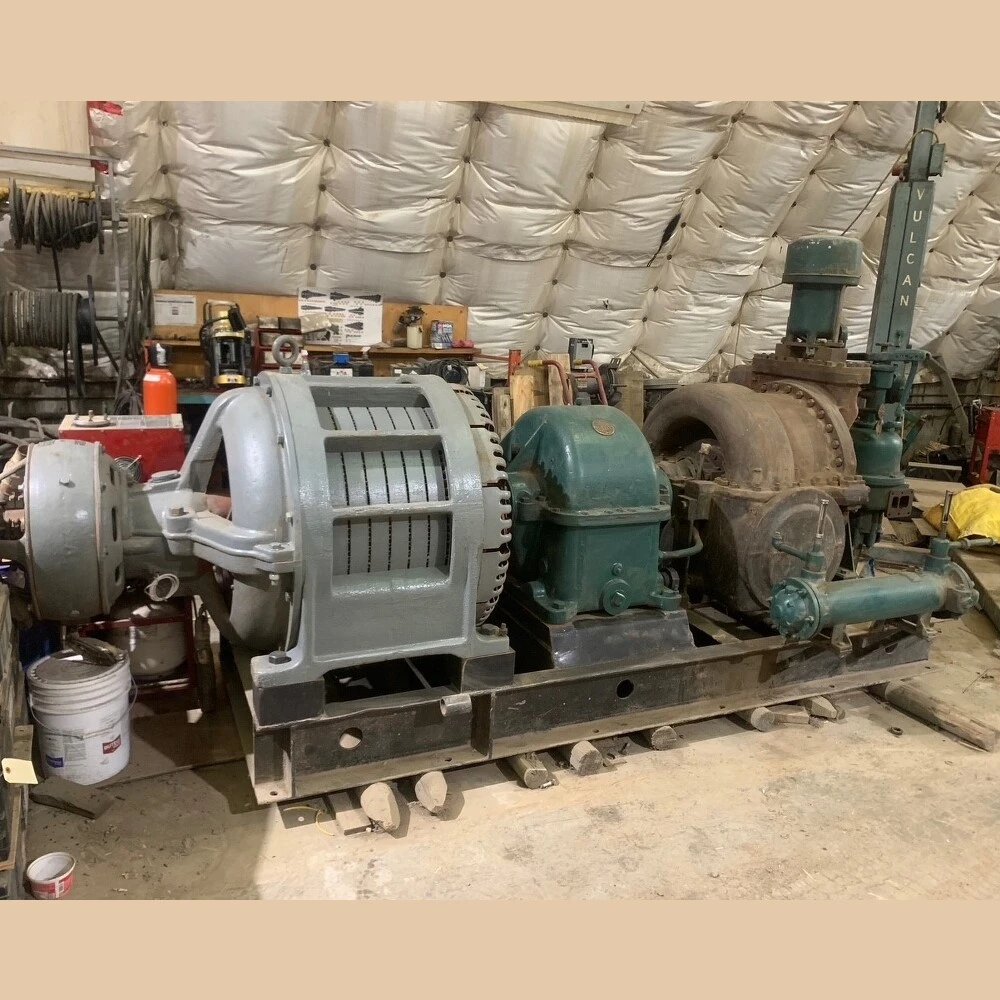

350kW General Electric Steam Turbine Generator
Make: General Electric
Type: Steam Turbine Generator
Condition: Rebuilt/Restored
General Electric Steam Turbine:
Number: 42945
Type: DS-60-3 Stage
Rating: 350kW
RPM: 4697 RPM
Inlet Pressure: 140 Lbs.
Exhaust Pressure: 1 Lb.
Superheat: 0°F
Instruction: GE 1 9870
Number: 42945
Type: DS-60-3 Stage
Rating: 350kW
RPM: 4697 RPM
Inlet Pressure: 140 Lbs.
Exhaust Pressure: 1 Lb.
Superheat: 0°F
Instruction: GE 1 9870

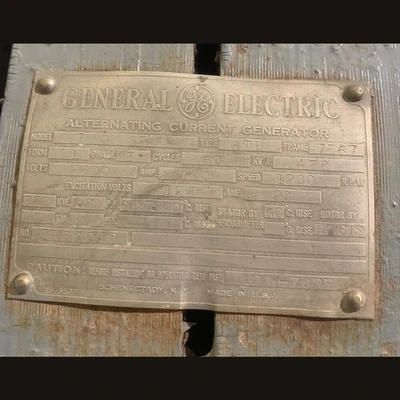

General Electric AC Generator
Model: 7 G 85
Type: ATB
Frame: 7567
Form: BL
Number: 5432947
Instruction: (GEH - 709P)
kVA: 438 kVA
Volts: 2300 Volts
Current: 110 Amps
Frequency: 60Hz
Phase: 3-Phase
Rotating Speed: 1200 RPM
Power Factor: 0.8 PF
Excitation:
Volts: 125 Volt
Current: 28 Amps
Model: 7 G 85
Type: ATB
Frame: 7567
Form: BL
Number: 5432947
Instruction: (GEH - 709P)
kVA: 438 kVA
Volts: 2300 Volts
Current: 110 Amps
Frequency: 60Hz
Phase: 3-Phase
Rotating Speed: 1200 RPM
Power Factor: 0.8 PF
Excitation:
Volts: 125 Volt
Current: 28 Amps
Volts: 125 Volt
Current: 28 Amps

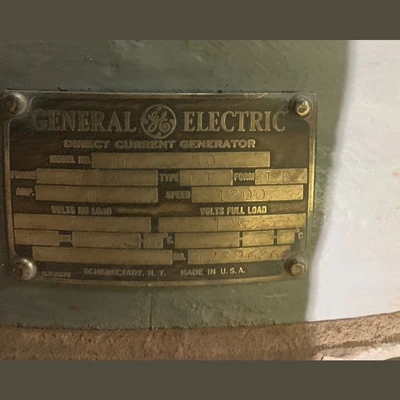

General Electric DC Generator:
Model: 16 G 50
Form: EB
Rotating Speed: 1200 RPM
Voltage: 125 Volt DC
Current: 40 Amps
Model: 16 G 50
Form: EB
Rotating Speed: 1200 RPM
Voltage: 125 Volt DC
Current: 40 Amps

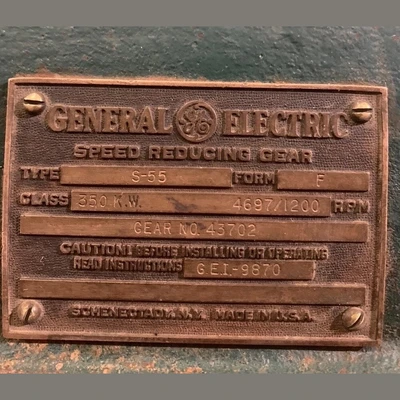

General Electric Speed Reducer:
Type: S-55
Form: F
Input Speed: 4697 RPM
Output Speed: 1200 RPM
Gear No: 43702
Instruction: G.E.I 9870
Type: S-55
Form: F
Input Speed: 4697 RPM
Output Speed: 1200 RPM
Gear No: 43702
Instruction: G.E.I 9870
Overall Dimensions:
Length: 13ft
Width: 6ft
Height: 6ft 4in
Length: 13ft
Width: 6ft
Height: 6ft 4in
Location: Western Canada
