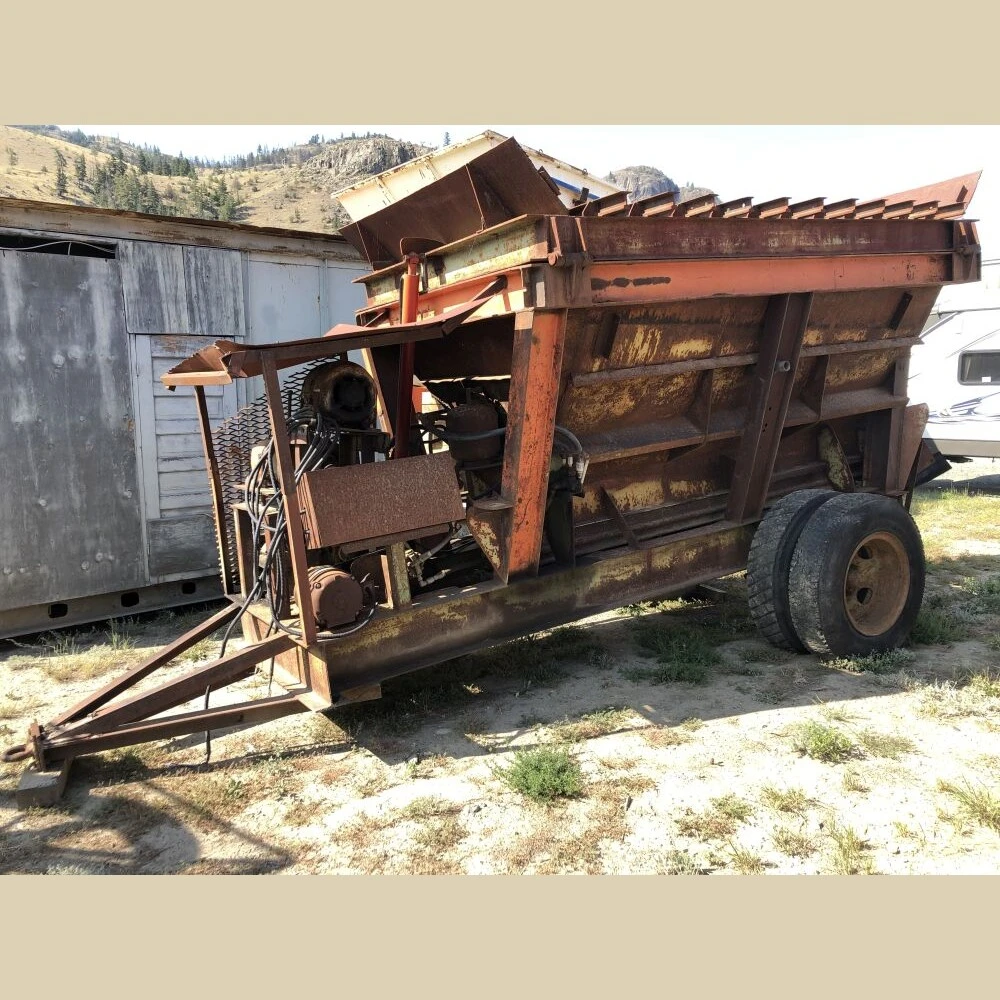

Portable Reciprocating Plate Feeder

Portable Reciprocating Plate Feeder

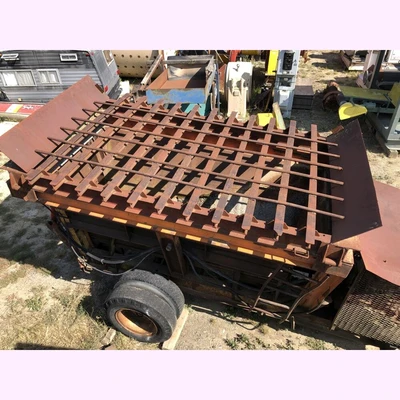

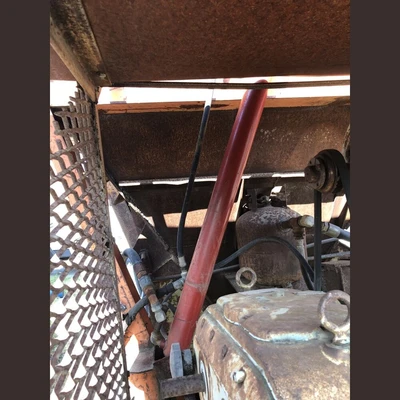

Hydraulic Dumping Grizzly
11ft Wide x 7ft Long x 6ft Deep
Comes with 18in Wings
Overall Width with Wings: 12ft 9in

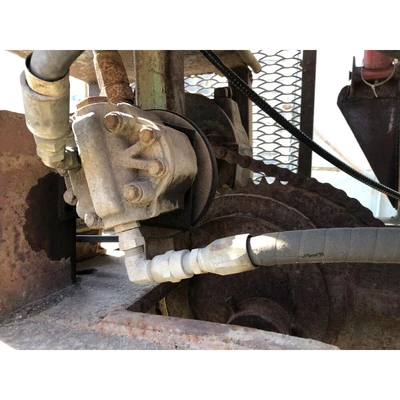

Belt Driven 2HP Electric/Hydraulic Motor and Pump
11ft Wide x 7ft Long x 6ft Deep
Comes with 18in Wings
Overall Width with Wings: 12ft 9in
Belt Driven 2HP Electric/Hydraulic Motor and Pump
20in Wide x 10.5ft Long Discharge Plate
Reciprocating Stroke Approx. 4in

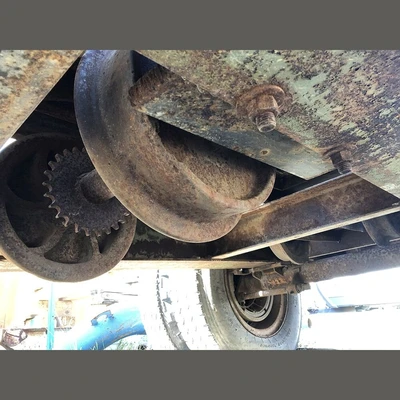

Mounted on 3 Sets of Mine Wheels and Axles (Upside Down Rail Mounted to Bottom of Plate as Guides)
Reciprocating Stroke Approx. 4in
Mounted on 3 Sets of Mine Wheels and Axles (Upside Down Rail Mounted to Bottom of Plate as Guides)
Multiple Reduction Drive System Consisting of:
7.5HP Motor (1740 RPM)
3.5in Motor Drive Sheave

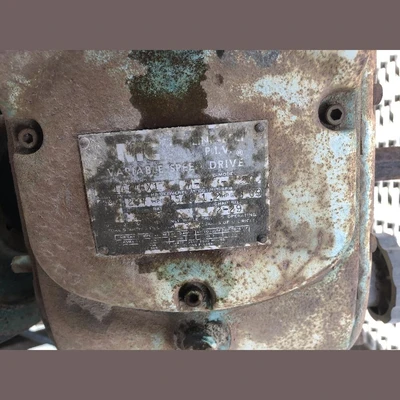

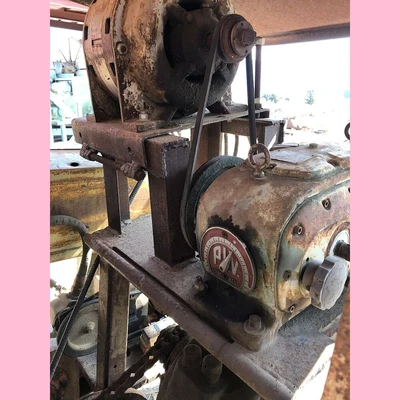

Belt Driving a Linkbelt Vari-Speed Reducer
Ratio: 5-1
11in Input Shaft Sheave
3.5in Output Shaft Sheave
Belt Driving a Parallel Shaft Gear Reducer
Ratio: 32-1
8in Input Sheave
Chain Driving Plate Feeder
14 Tooth Output Shaft
68 Tooth Plate Feeder Sprocket
7.5HP Motor (1740 RPM)
3.5in Motor Drive Sheave
3.5in Motor Drive Sheave
Belt Driving a Linkbelt Vari-Speed Reducer
Ratio: 5-1
11in Input Shaft Sheave
3.5in Output Shaft Sheave
Ratio: 5-1
11in Input Shaft Sheave
3.5in Output Shaft Sheave
Belt Driving a Parallel Shaft Gear Reducer
Ratio: 32-1
8in Input Sheave
Ratio: 32-1
8in Input Sheave
Chain Driving Plate Feeder
14 Tooth Output Shaft
68 Tooth Plate Feeder Sprocket
14 Tooth Output Shaft
68 Tooth Plate Feeder Sprocket

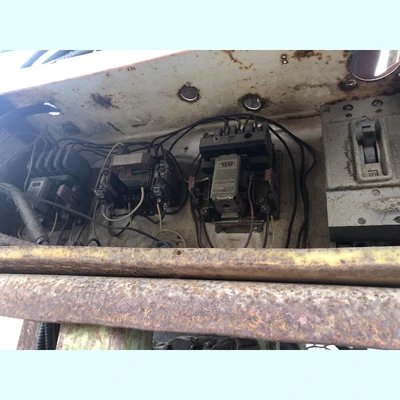

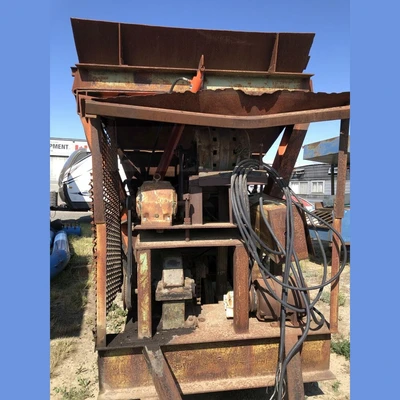

Square D and General Electric Electrical Controls
Mounted in Common Electrical Box

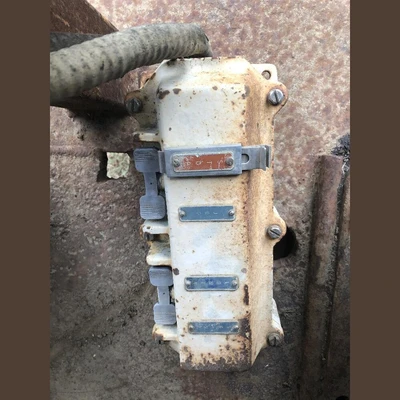

With Pendant Controls
Mounted in Common Electrical Box
With Pendant Controls
All Mounted on a Single Axle, Dual Wheel Chassis
With Pintle Hitch
With Pintle Hitch
Overall Dimensions:
Length: 21ft
Width: 8.5ft
Height: 10ft
Length: 21ft
Width: 8.5ft
Height: 10ft
Location: Savona, British Columbia, Canada
