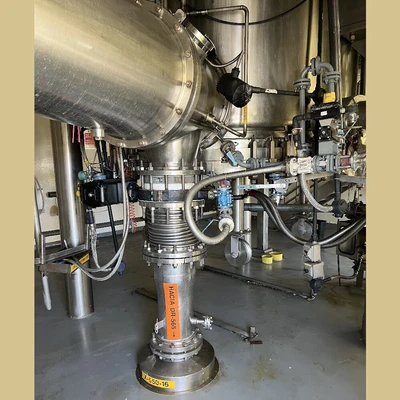

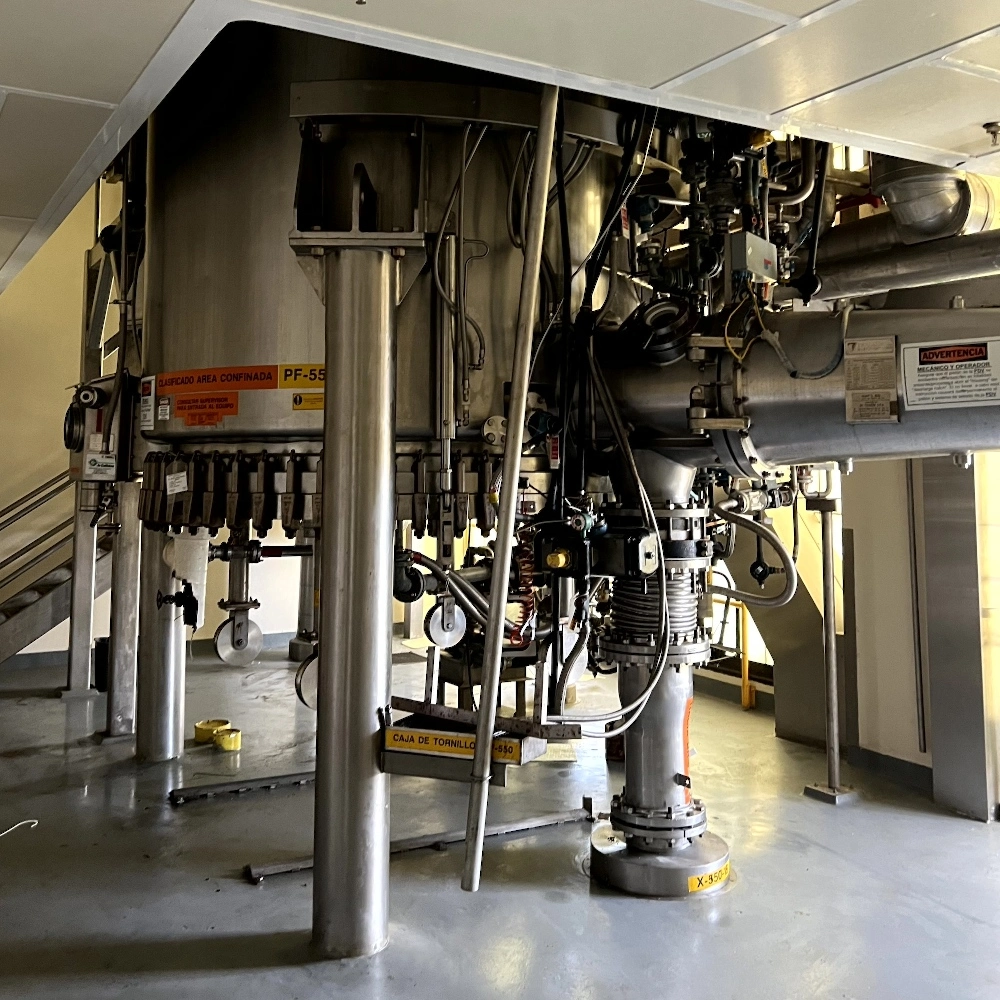

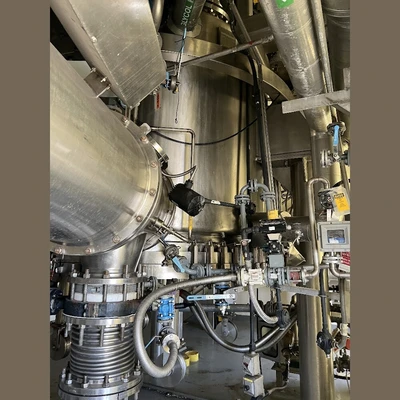

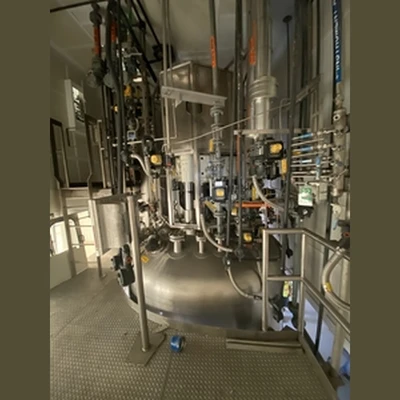

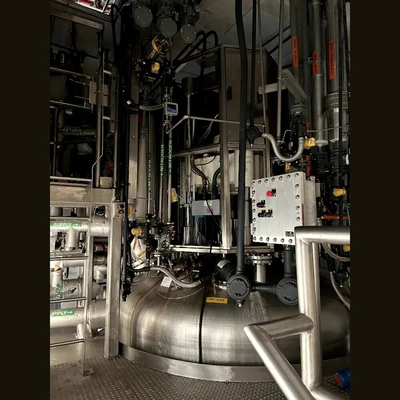

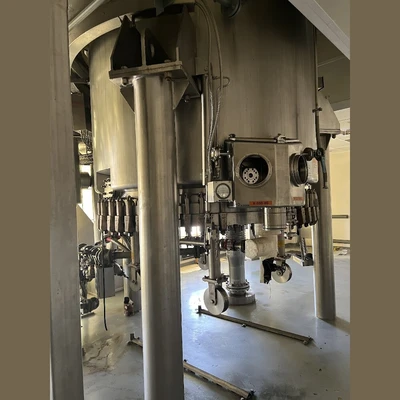

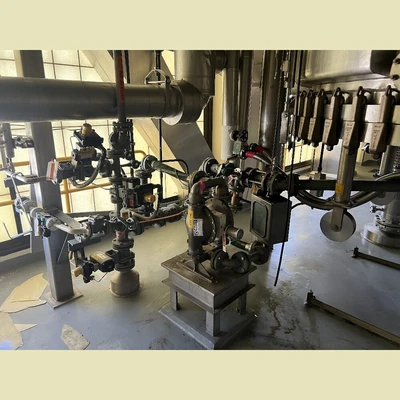

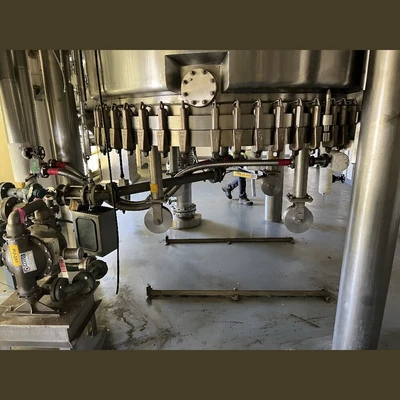

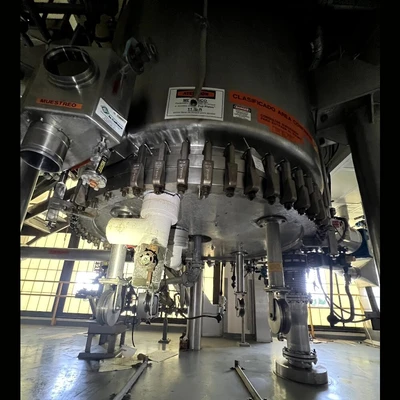

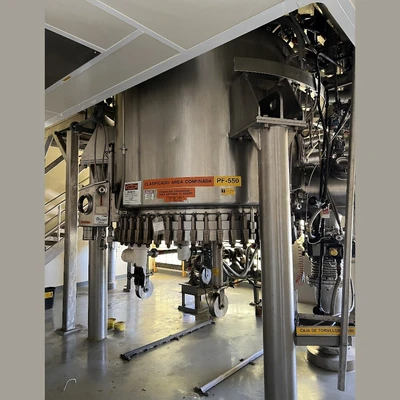

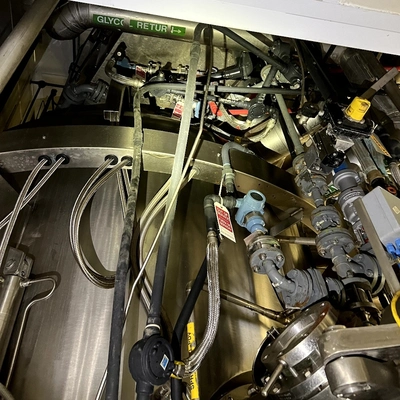

USED 3V COGEIM FILTODRY FEPXD-400

3V Cogeim FiltoDry FEPXD-400 Filter Dryer
Make: 3V Cogeim
Model: FiltoDry FEPXD-400
Type: Filter - Rosenmund and Cogeim
Condition: Used Condition
Construction: Hastelloy - C22
Vessel:
Filtration Area: 44.7ft² (4.2m²)
Pressure: 88.5psi (6.1 bar)
Temperature:  392°F (200°C)

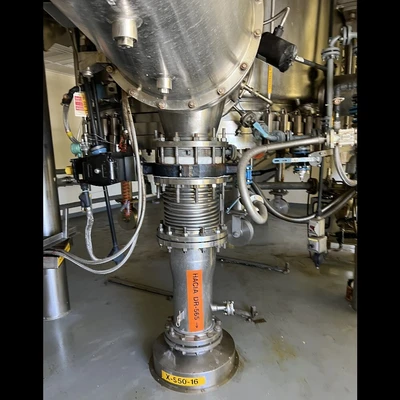

Outlet Discharge: 18.5in Dia. (470mm Dia.)
Filtration Area: 44.7ft² (4.2m²)
Pressure: 88.5psi (6.1 bar)
Temperature:  392°F (200°C)
Outlet Discharge: 18.5in Dia. (470mm Dia.)

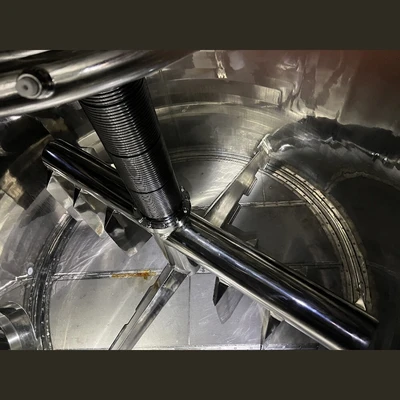

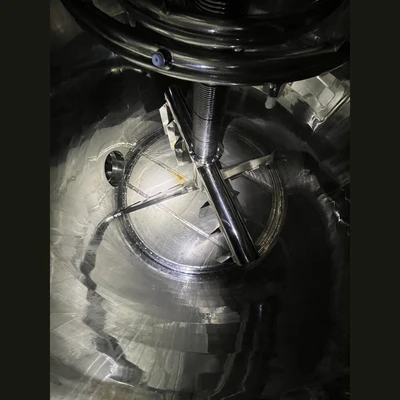

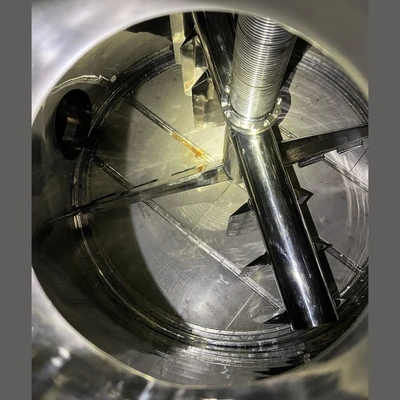

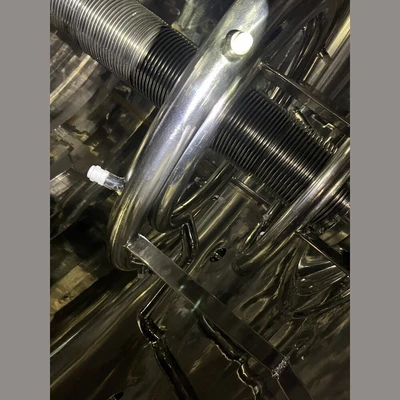

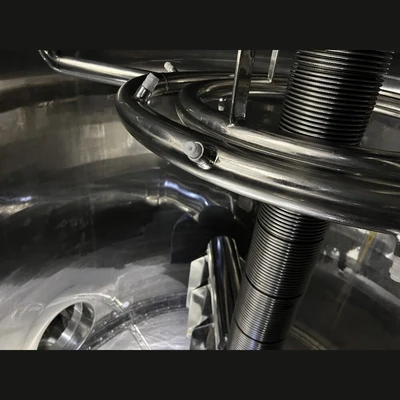

Agitator: 6-Blade Rake with a Cored Shaft

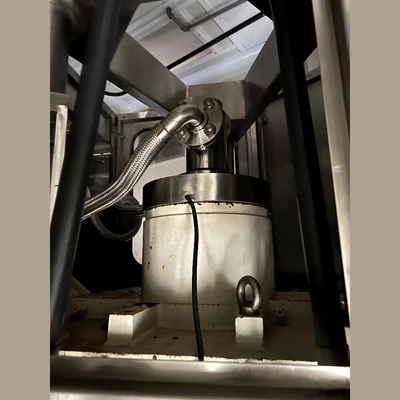

Drive: Hydraulic
Pressure: 152.3psi (10.5 bar)
Drive: Hydraulic
Pressure: 152.3psi (10.5 bar)

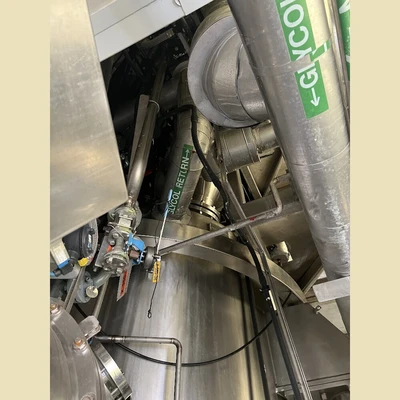

Jacket:
Type: Half Pipe/Limpet
Pressure: 10.5 bar (152.2psi)
Construction: Stainless Steel 316
Type: Half Pipe/Limpet
Pressure: 10.5 bar (152.2psi)
Construction: Stainless Steel 316

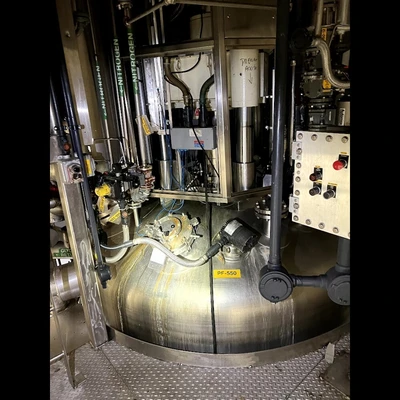

Top Head: Dish
Construction: Stainless Steel 304
Fastening: Welded
Construction: Stainless Steel 304
Fastening: Welded
Bottom Head: Flat
Construction: Stainless Steel 304
Fastening: Clamped
Construction: Stainless Steel 304
Fastening: Clamped

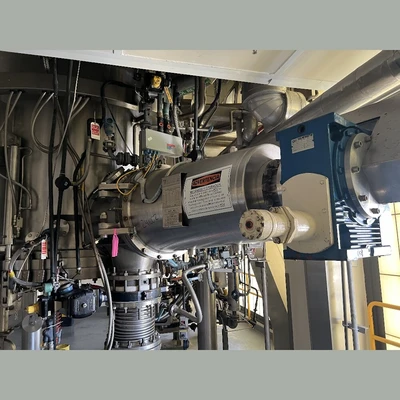

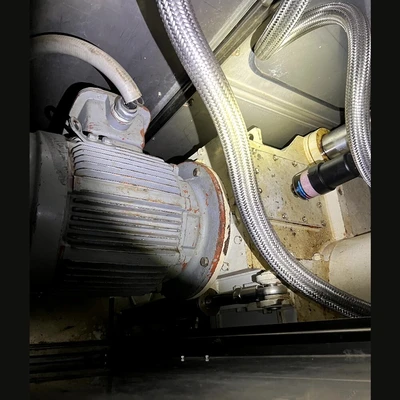

Drive: 3V Cogeim Electric Motor
Power Output: 40HP (29.8kW)
Rotation Speed: 12RPM
Type: Vertical
Power Output: 40HP (29.8kW)
Rotation Speed: 12RPM
Type: Vertical

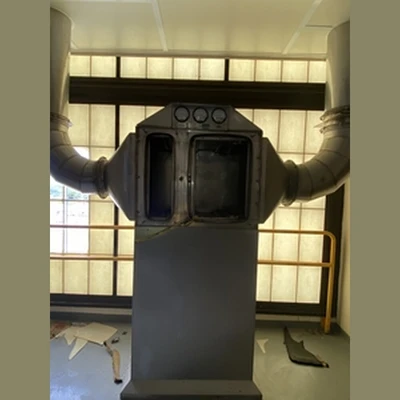

Dust Collector:
Filter Size: 1.8m² (19.4ft²)
Filter Size: 1.8m² (19.4ft²)
Drive: Magnetek Electric Motor
Power Output: 40HP (29.8kW)
Voltage: 460 Volts
Frequency: 60Hz
Power Output: 40HP (29.8kW)
Voltage: 460 Volts
Frequency: 60Hz
Dimensions:
Diameter: 90.6in (2300mm)
Height: 252.8in (6421mm)
Straight Side Length: 76in (1930mm)
Diameter: 90.6in (2300mm)
Height: 252.8in (6421mm)
Straight Side Length: 76in (1930mm)
Location: Eastern USA
