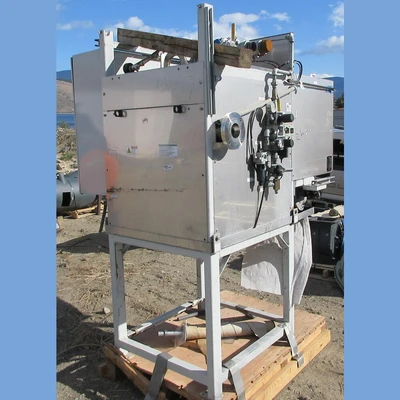

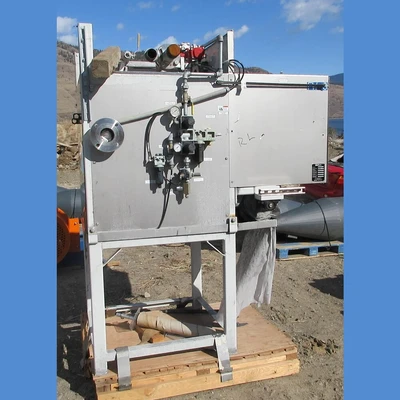

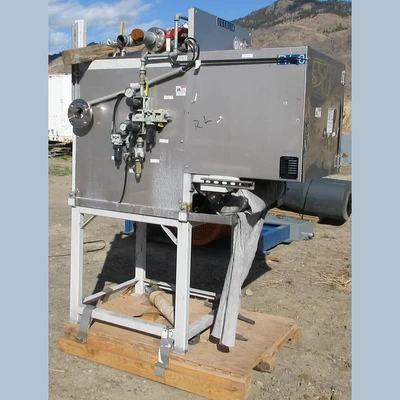

Oberlin OPF04 Pressure Filter

Oberlin OPF-04 Pressure Filter

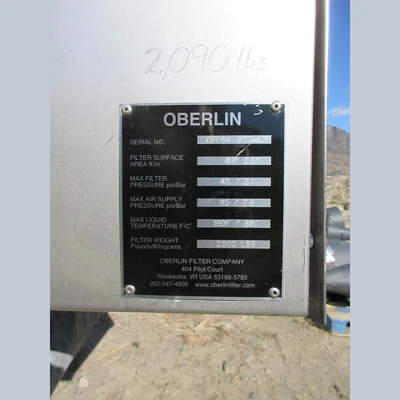

Spec Plate:
Filter Surface Area: 4ft² (0.37m²)
Max Filter Pressure: 45psi
Max Air Supply Pressure: 115psi
Max Liquid Temperature: 190°F (88°C)
Filter Weight: 2500Lbs
Nominal capacity of water based material 160 gallons per minute and 200 pounds per hour
Dimensions: 68in Long x 53in Wide x 56in Tall
Filter Surface Area: 4ft² (0.37m²)
Max Filter Pressure: 45psi
Max Air Supply Pressure: 115psi
Max Liquid Temperature: 190°F (88°C)
Filter Weight: 2500Lbs
Nominal capacity of water based material 160 gallons per minute and 200 pounds per hour
Dimensions: 68in Long x 53in Wide x 56in Tall
Electrical Box

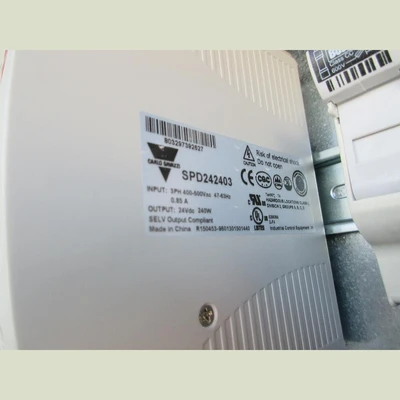

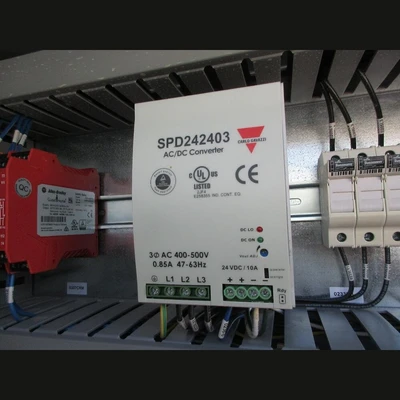

VFD
Carlo Gavazzi
Model: SPD242403
Input: 400-500 VAC
Output: 24 VDC

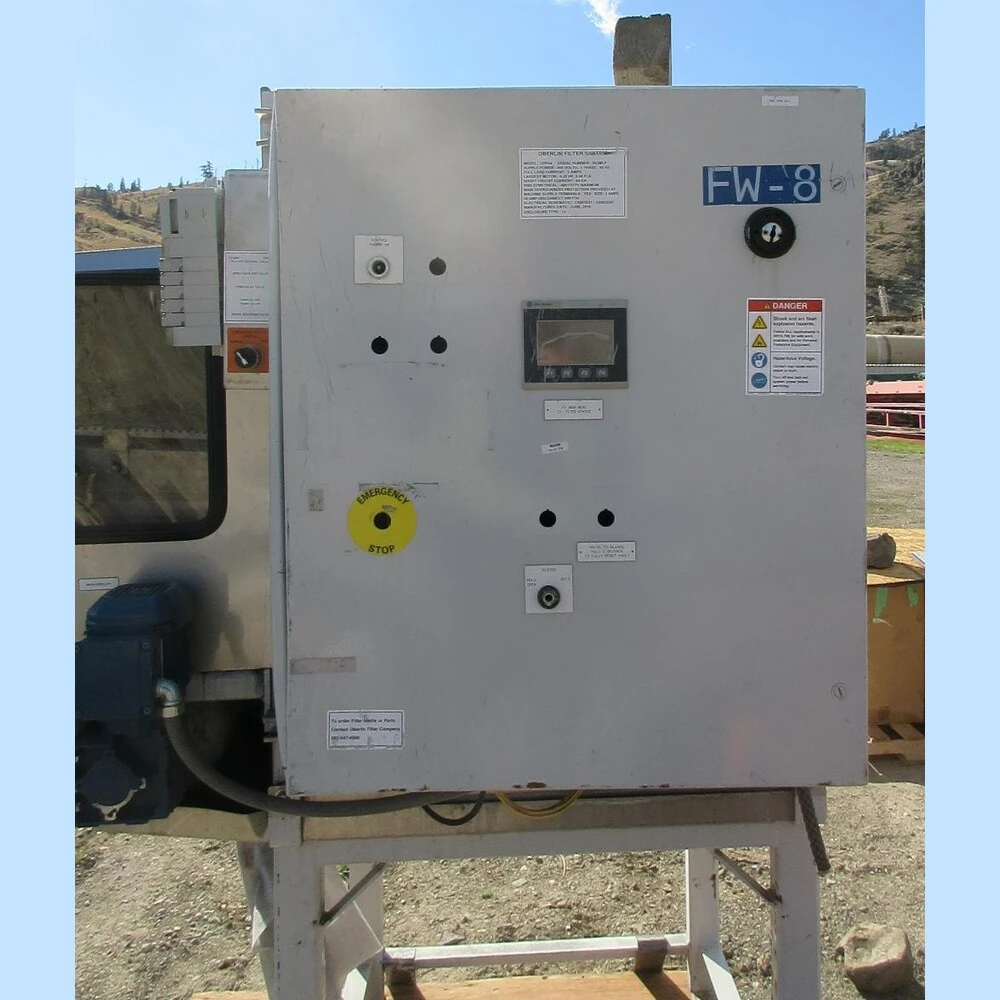

Control Center in Electrical Box Door
VFD
Carlo Gavazzi
Model: SPD242403
Input: 400-500 VAC
Output: 24 VDC
Carlo Gavazzi
Model: SPD242403
Input: 400-500 VAC
Output: 24 VDC
Control Center in Electrical Box Door

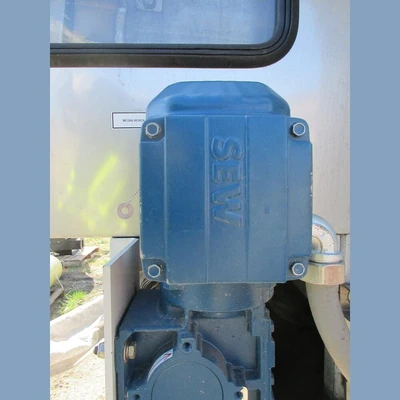

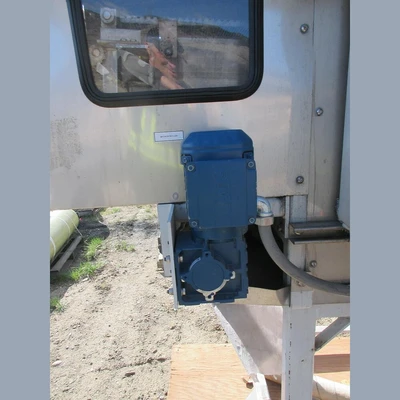

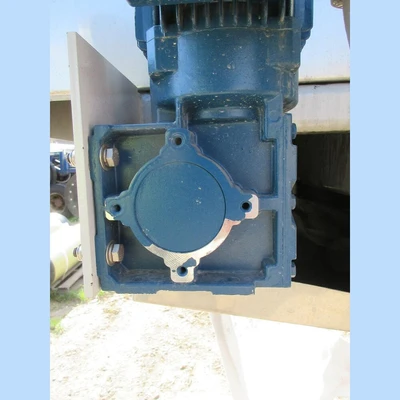

Motor and Reducer
Motor
SEW-EuroDrive TEFC 3 Phase
0.25 HP
230-460 Volts
1710 RPM

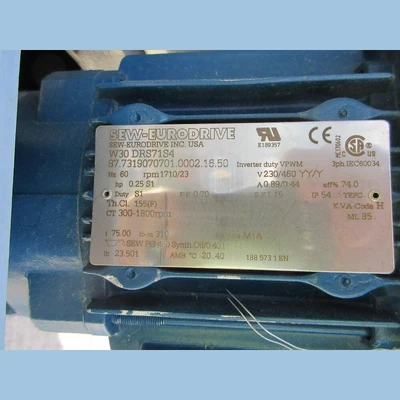

Reducer
SEW-EuroDrive W30 DRS71S4
Ratio: 175:1
Motor
SEW-EuroDrive TEFC 3 Phase
0.25 HP
230-460 Volts
1710 RPM
SEW-EuroDrive TEFC 3 Phase
0.25 HP
230-460 Volts
1710 RPM

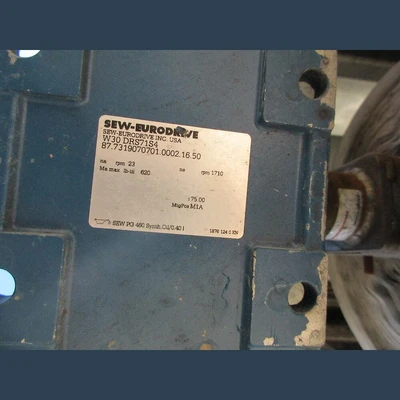

Reducer
SEW-EuroDrive W30 DRS71S4
Ratio: 175:1
SEW-EuroDrive W30 DRS71S4
Ratio: 175:1
Location: British Columbia, Canada
