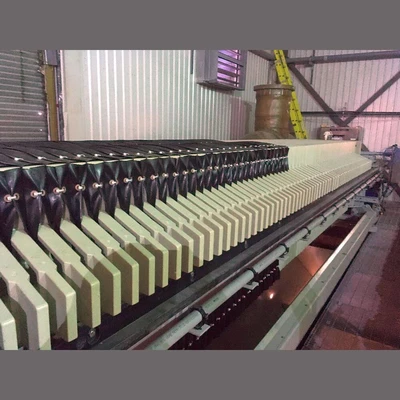

NEW ANDRITZ 1000/95, MIXED PACK MEMBRANE

Andritz 1000mm Sidebar Filter Press System
Quantity: 4 Units (2x 1000/95, 70 Chamber Units)
                              (2 x 1000/40, 24 Chamber Units)
70 Chamber Units
Make: Andritz
Model: 1000/95, Mixed Pack Membrane
Machine Type: 1000/HP/SR/70/32mm Filter Press
(70) 32mm Chambers
Type: Closed Filtrate
Condition: New, Never Used
No. of Stay Boss: 4

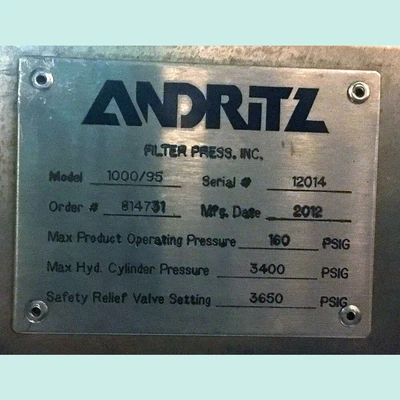

Serial #'s: 12014, 12015
Slurry Type: Silicate
Inlet Consistency: 11-15% TSS
Cake Density: 75 lb/ft³
Slurry Temperature: 75°C Max
pH: 0
Guaranteed Cake Solids: 52%
Maximum Cycle Time: 80 Minutes
Size of Press: 1000 High Pressure
Cake Thickness (Pre-Squeeze): 32 mm
No. of Chambers: 70
Filter Area: 1,217 ft²
Capacity 1.56 m³ / 55ft³
Pack Length: 514.73cm
Weight of Empty Press: 15.88 Tonnes
Hydraulic Unit: 5 HP
Power Supply: 575V, 3-Phase, 60 Hz
Plate Material: Polypropylene
Slurry Feed Pressure (Max at 75°C.): 65 psi @ 75°C
Squeeze Pressure (Max at 75°C.): 141 psi @ 75°C
Flooded Weight of Machine: 20.412 Tonnes
Make: Andritz
Model: 1000/95, Mixed Pack Membrane
Machine Type: 1000/HP/SR/70/32mm Filter Press
(70) 32mm Chambers
Type: Closed Filtrate
Condition: New, Never Used
No. of Stay Boss: 4
Serial #'s: 12014, 12015
Slurry Type: Silicate
Inlet Consistency: 11-15% TSS
Cake Density: 75 lb/ft³
Slurry Temperature: 75°C Max
pH: 0
Guaranteed Cake Solids: 52%
Maximum Cycle Time: 80 Minutes
Size of Press: 1000 High Pressure
Cake Thickness (Pre-Squeeze): 32 mm
No. of Chambers: 70
Filter Area: 1,217 ft²
Capacity 1.56 m³ / 55ft³
Pack Length: 514.73cm
Weight of Empty Press: 15.88 Tonnes
Hydraulic Unit: 5 HP
Power Supply: 575V, 3-Phase, 60 Hz
Plate Material: Polypropylene
Slurry Feed Pressure (Max at 75°C.): 65 psi @ 75°C
Squeeze Pressure (Max at 75°C.): 141 psi @ 75°C
Flooded Weight of Machine: 20.412 Tonnes
24 Chamber Units

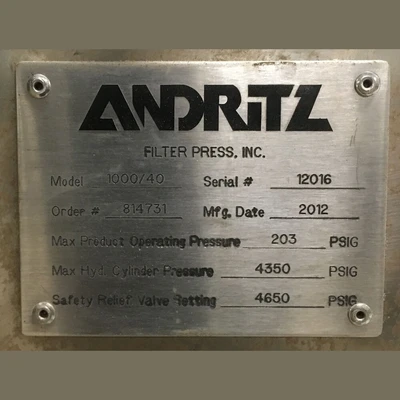

Make: Andritz
Model: 1000/40, Mixed Pack Membrane
Machine Type: 1000/HP/SR/24/32mm Filter Press
(24) 32mm Chambers
Type: Closed Filtrate

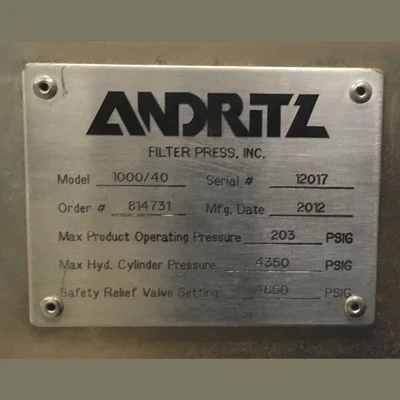

Serial #'s: 12016, 12017
Condition: New, Never Used
No. of Stay Boss: 4
Slurry Type: Iron Hydroxide
Inlet Consistency: 3% TSS
Cake Density: 83 lb/ft³
Slurry Temperature: 65°C Max
pH: 13
Guaranteed Cake Solids: 52%
Maximum Cycle Time: 120 minutes
Size of Press: 1000 High Pressure
Cake Thickness (Pre-Squeeze): 32mm
No. of Chambers: 24
Filter Area: 417 ft²
Capacity: 0.5352m³ / 19ft³
Pack Length: 183.92cm
Weight of Empty Press: 10.89 Tonnes
Hydraulic Unit: 5 HP
Power Supply: 575V, 3-Phase, 60 Hz
Plate Material: Polypropylene
Slurry Feed Pressure (Max at 75°C): 65psi @ 75°C
Squeeze Pressure (Max at 75°C.): 141psi @ 75°C
Flooded Weight of Machine: 11.74 Tonnes
Make: Andritz
Model: 1000/40, Mixed Pack Membrane
Machine Type: 1000/HP/SR/24/32mm Filter Press
(24) 32mm Chambers
Type: Closed Filtrate
Serial #'s: 12016, 12017
Condition: New, Never Used
No. of Stay Boss: 4
Slurry Type: Iron Hydroxide
Inlet Consistency: 3% TSS
Cake Density: 83 lb/ft³
Slurry Temperature: 65°C Max
pH: 13
Guaranteed Cake Solids: 52%
Maximum Cycle Time: 120 minutes
Size of Press: 1000 High Pressure
Cake Thickness (Pre-Squeeze): 32mm
No. of Chambers: 24
Filter Area: 417 ft²
Capacity: 0.5352m³ / 19ft³
Pack Length: 183.92cm
Weight of Empty Press: 10.89 Tonnes
Hydraulic Unit: 5 HP
Power Supply: 575V, 3-Phase, 60 Hz
Plate Material: Polypropylene
Slurry Feed Pressure (Max at 75°C): 65psi @ 75°C
Squeeze Pressure (Max at 75°C.): 141psi @ 75°C
Flooded Weight of Machine: 11.74 Tonnes

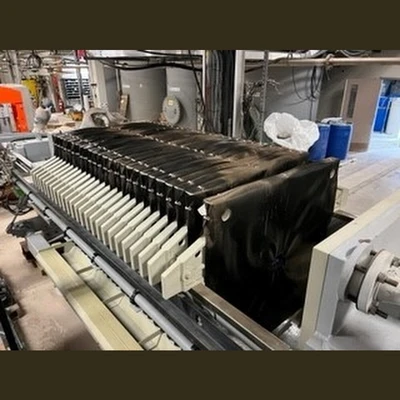

Filter Cloths
Composition: Polypropylene
Weight: 318.76 (grams/m²)
Caliper: 0.46mm
Porosity: 3-5 CFM
Thread Count: 107 x 36
Warp Yarn: Monofilament Black
Filling Yarn: Multifilament
Finish: Heat Set & Calendared
Style: AFP 101
Attachment: Plastic Tie
Composition: Polypropylene
Weight: 318.76 (grams/m²)
Caliper: 0.46mm
Porosity: 3-5 CFM
Thread Count: 107 x 36
Warp Yarn: Monofilament Black
Filling Yarn: Multifilament
Finish: Heat Set & Calendared
Style: AFP 101
Attachment: Plastic Tie

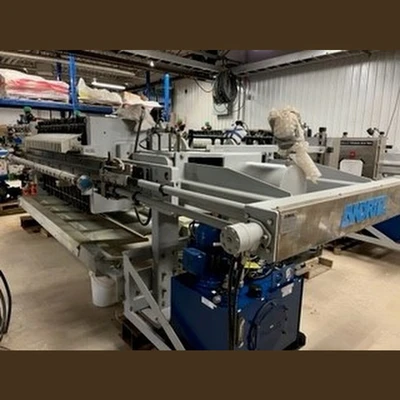

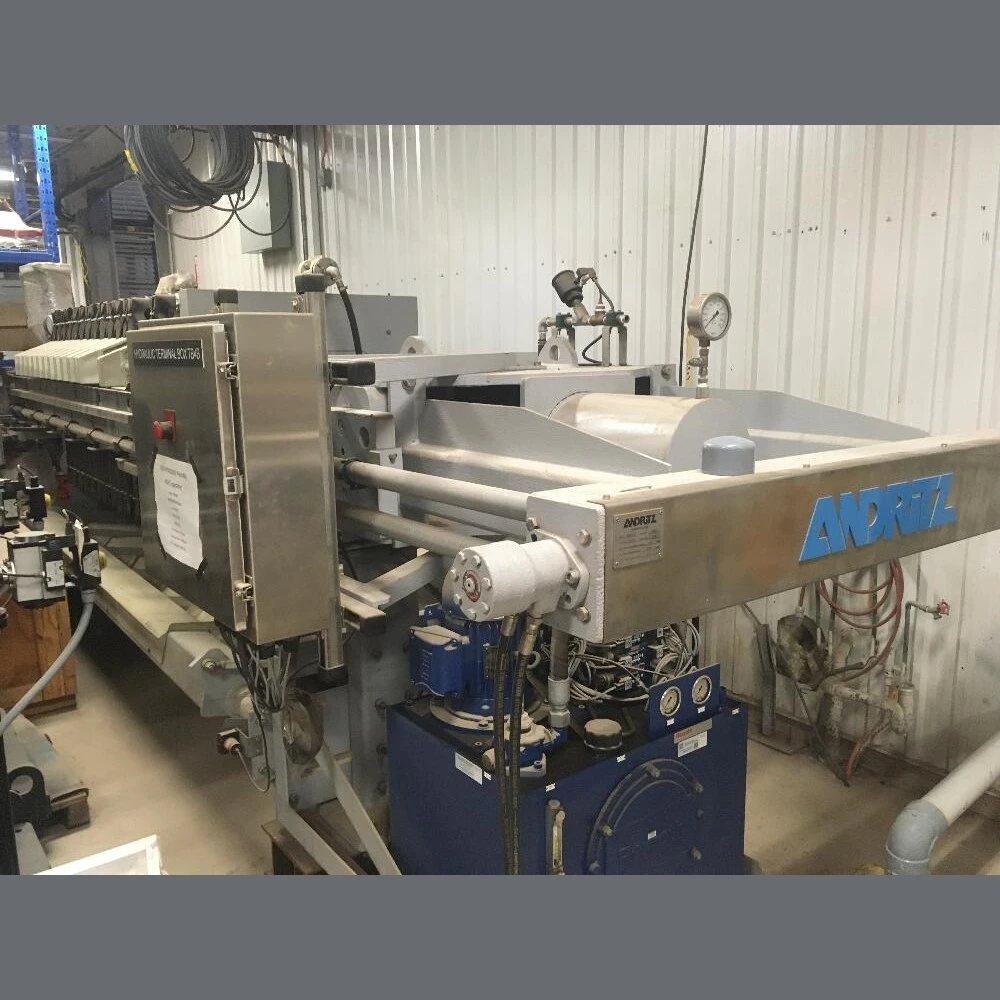

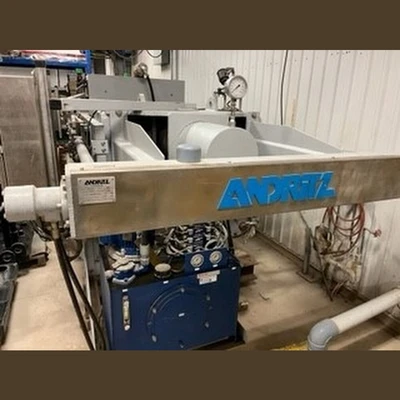

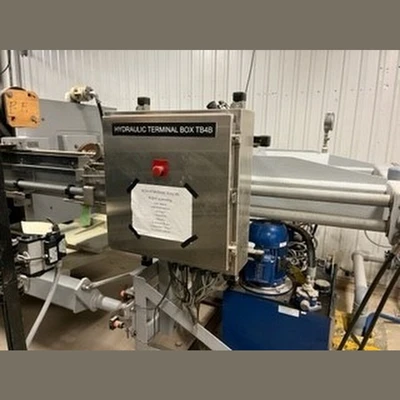

Hydraulic Power Pack
Nominal Motor Rating: 5 HP
Voltage: 575 Volt
Piston Diameter: 254mm
Piston Rod Diameter: 127mm
Piston Stroke (Maximum): 762mm
Tank Volume: 113.57 Liters
Pump Conveying Stream, 4500 psi: 18.93 Liters/Minute
Pump Conveying Stream, 4500 psi: 8.71 Liters/Minute
Motor Speed: 1750 RPM
Enclosure: IP55
Nominal Motor Rating: 5 HP
Voltage: 575 Volt
Piston Diameter: 254mm
Piston Rod Diameter: 127mm
Piston Stroke (Maximum): 762mm
Tank Volume: 113.57 Liters
Pump Conveying Stream, 4500 psi: 18.93 Liters/Minute
Pump Conveying Stream, 4500 psi: 8.71 Liters/Minute
Motor Speed: 1750 RPM
Enclosure: IP55
Location: Canada
