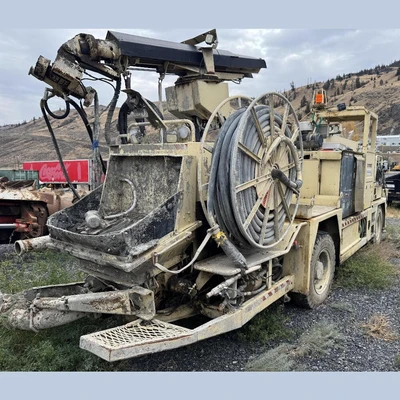

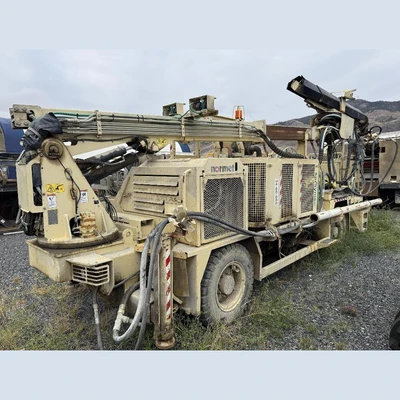

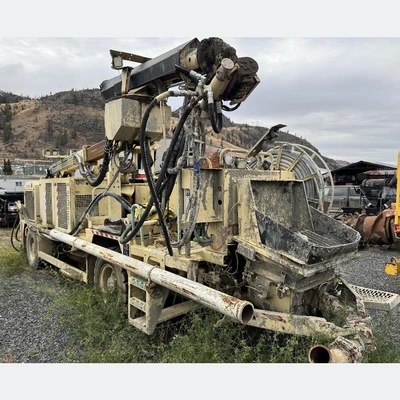

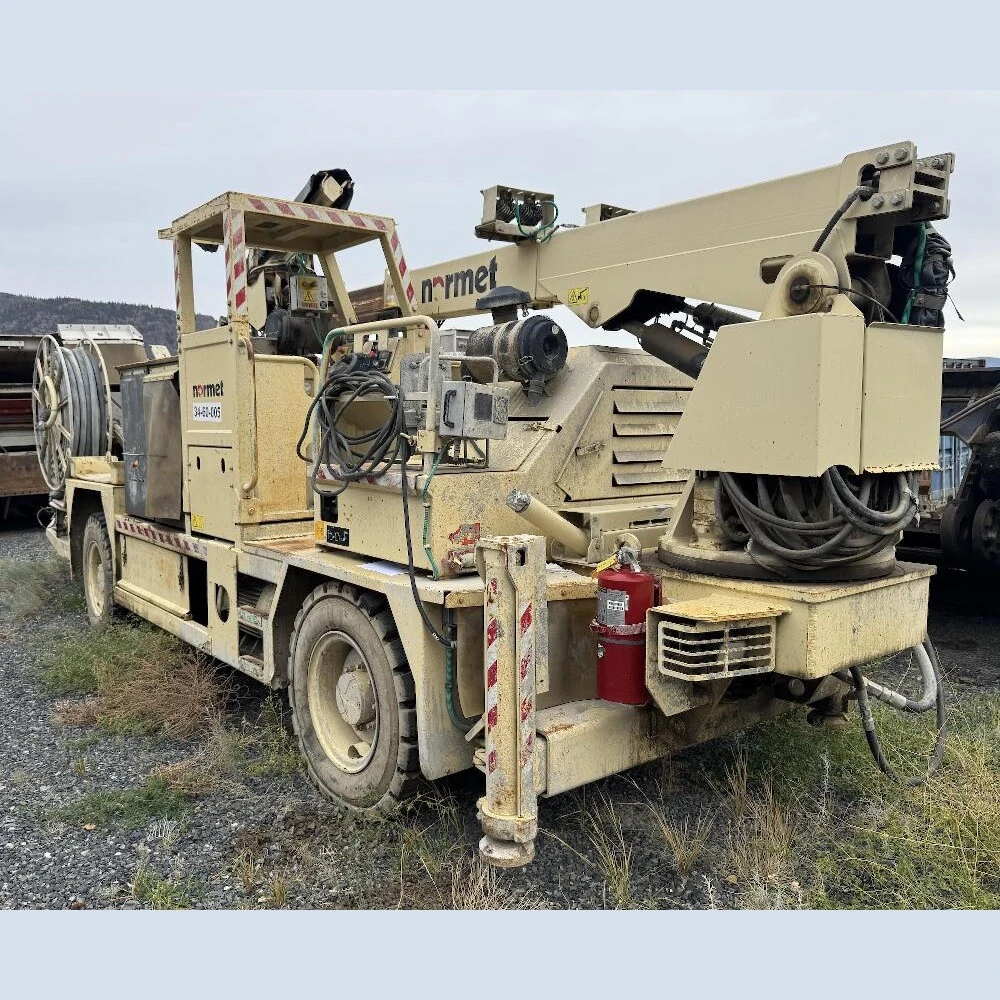

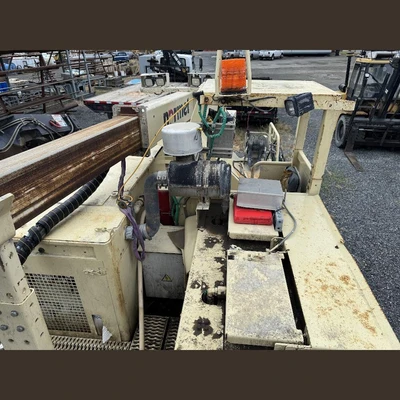

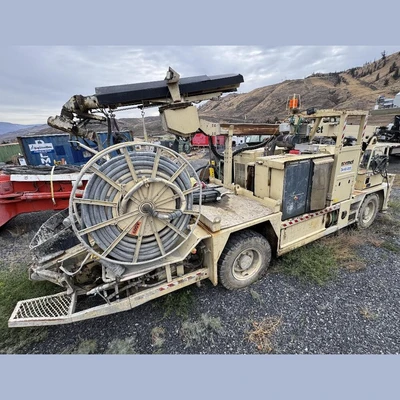

USED 2014 NORMET SPRAYMEC 8100

Normet Spraymec 8100 Shotcrete Sprayer
Make: Normet
Model: Spraymec 8100
Type: Underground Shotcrete Sprayer
Year: 2014
Hours: 2,293
Condition: Used Condition

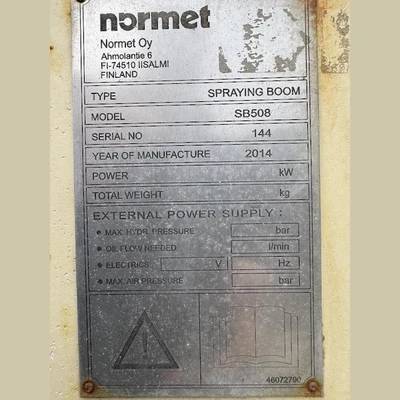

SB 508 Spray Boom
Lateral: 16m
Vertical Max: 14.0m
Vertical Normal: 10.3m
Lateral: 16m
Vertical Max: 14.0m
Vertical Normal: 10.3m
Spraying Cross Section: 15m²-140m²
Spraying Capacity: 30m³/h
4-Cylinder Diesel Engine
Ansul Fire Suppression
Canopy: ROPS/FOPS Canopy
Water Reel
General Model Specifications:
Spray Pump: NSP 40 Double Piston Pump,
Capacity, Theoretical: 3 - 30m³/h
Cylinder Diameter: 200mm
Cylinder Stroke: 920mm
Pumping Pressure: 51 bar
Hydraulic Pressure: 250 bar
Air Compressor: Electric Screw Compressor
Accelerator System: Hydraulically-Driven Mono Pump
Engine: Deutz TCD 2011 L4, Turbo-Charged
Power Output: 74.9kW @ 2600RPM
Transmission: Hydrostatic 4-Wheel Transmission
Spray Pump: NSP 40 Double Piston Pump,
Capacity, Theoretical: 3 - 30m³/h
Cylinder Diameter: 200mm
Cylinder Stroke: 920mm
Pumping Pressure: 51 bar
Hydraulic Pressure: 250 bar
Capacity, Theoretical: 3 - 30m³/h
Cylinder Diameter: 200mm
Cylinder Stroke: 920mm
Pumping Pressure: 51 bar
Hydraulic Pressure: 250 bar
Air Compressor: Electric Screw Compressor
Accelerator System: Hydraulically-Driven Mono Pump
Engine: Deutz TCD 2011 L4, Turbo-Charged
Power Output: 74.9kW @ 2600RPM
Power Output: 74.9kW @ 2600RPM
Transmission: Hydrostatic 4-Wheel Transmission
Overall Dimensions:
Length: 8,800mm
Width: 2,500mm
Height: 3,150mm
Weight: 14,500 Kg
Length: 8,800mm
Width: 2,500mm
Height: 3,150mm
Weight: 14,500 Kg
Location: Savona, British Columbia, Canada
