Deister No. 6 Concentrating Table
Make: Deister
Model: No. 6
Type: Gold Concentrating Table
Condition: Used Condition

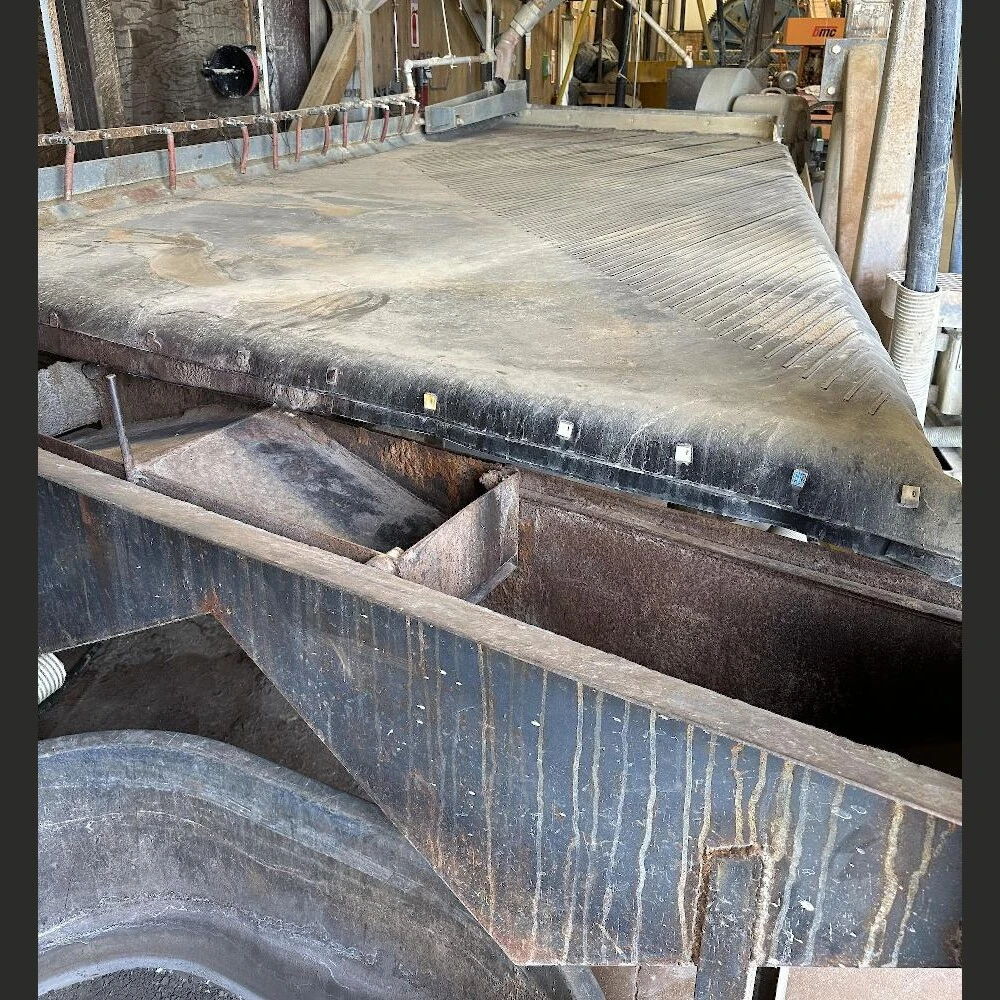

Deck: Full Size Diagonal Deck

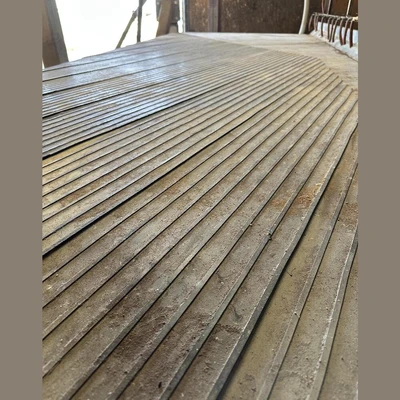

Deck Top: Rubber Cover with Riffles
Feed Trough and Launders

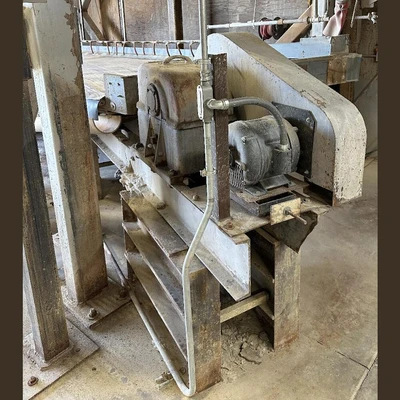

Drive: Electric Motor - Belt Drive
General Model Specifications:
Capacity (Standard Tons Per Hour):
Coarse Sand - 2.5 STPH (2.3 MTPH)
Medium Sand - 1.5 STPH (1.4 MTPH)
Fine Sand - 1.0 STPH (0.9 MTPH)
Slime - 0.5 STPH (0.4 MTPH)
Particle Top Size:
Coarse Sand - 10 Mesh (2.0mm)
Medium Sand - 48 Mesh (0.30mm)
Fine Sand - 100 Mesh (0.15mm)
Slime - 325 Mesh (0.044mm)
Dressing Water Consumption:
Coarse Sand: 10-16 GPM (2.3-3.6m³/h)
Medium Sand: 8-12 GPM (1.8-2.7m³/h)
Fine Sand: 5-9 GPM (1.1-2.0m³/h)
Slime: 3-5 GPM (0.7-1.1m³/h)
Capacity (Standard Tons Per Hour):
Coarse Sand - 2.5 STPH (2.3 MTPH)
Medium Sand - 1.5 STPH (1.4 MTPH)
Fine Sand - 1.0 STPH (0.9 MTPH)
Slime - 0.5 STPH (0.4 MTPH)
Coarse Sand - 2.5 STPH (2.3 MTPH)
Medium Sand - 1.5 STPH (1.4 MTPH)
Fine Sand - 1.0 STPH (0.9 MTPH)
Slime - 0.5 STPH (0.4 MTPH)
Particle Top Size:
Coarse Sand - 10 Mesh (2.0mm)
Medium Sand - 48 Mesh (0.30mm)
Fine Sand - 100 Mesh (0.15mm)
Slime - 325 Mesh (0.044mm)
Coarse Sand - 10 Mesh (2.0mm)
Medium Sand - 48 Mesh (0.30mm)
Fine Sand - 100 Mesh (0.15mm)
Slime - 325 Mesh (0.044mm)
Dressing Water Consumption:
Coarse Sand: 10-16 GPM (2.3-3.6m³/h)
Medium Sand: 8-12 GPM (1.8-2.7m³/h)
Fine Sand: 5-9 GPM (1.1-2.0m³/h)
Slime: 3-5 GPM (0.7-1.1m³/h)
Coarse Sand: 10-16 GPM (2.3-3.6m³/h)
Medium Sand: 8-12 GPM (1.8-2.7m³/h)
Fine Sand: 5-9 GPM (1.1-2.0m³/h)
Slime: 3-5 GPM (0.7-1.1m³/h)
Location: Western USA
