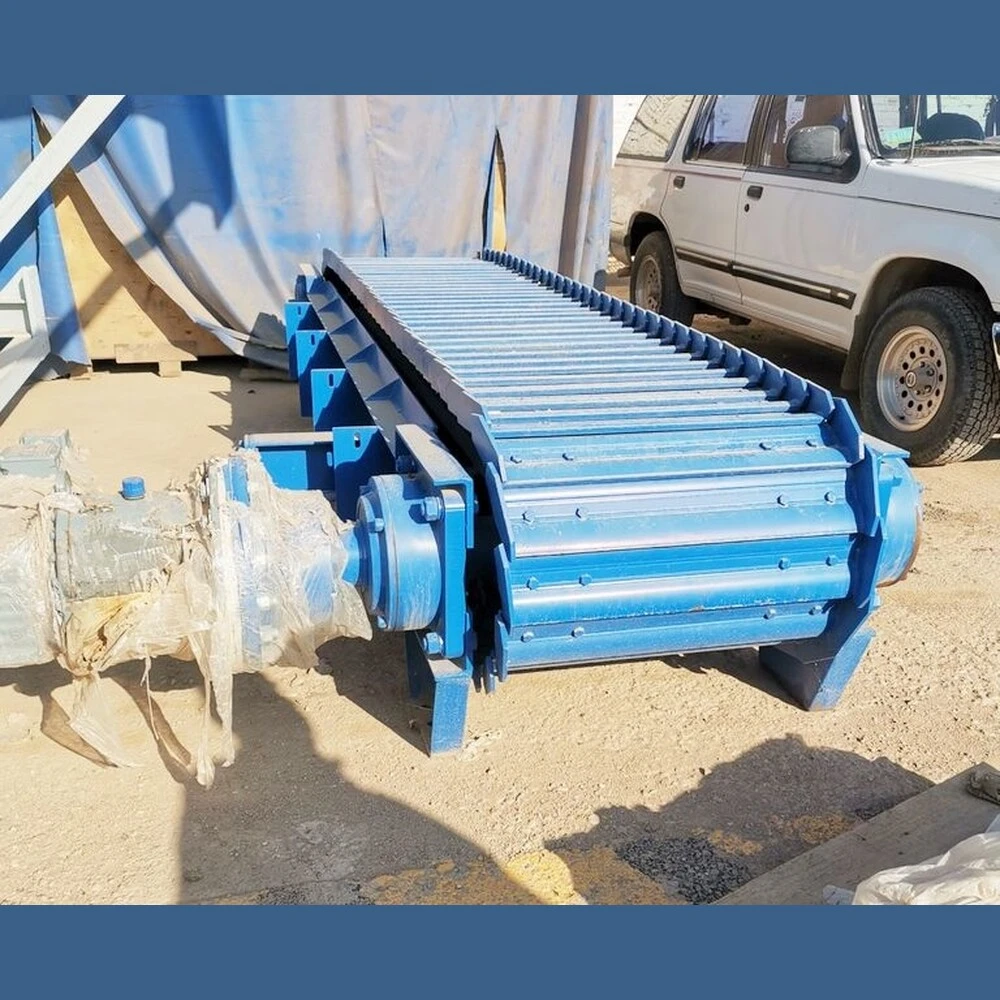

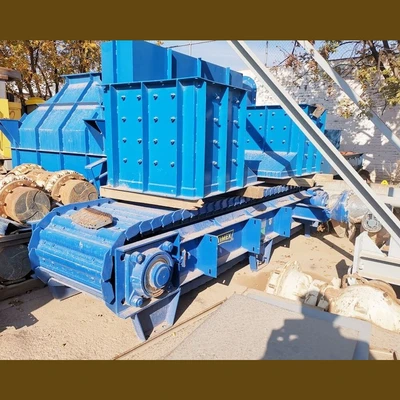

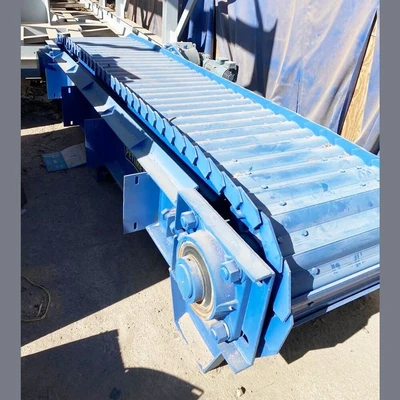

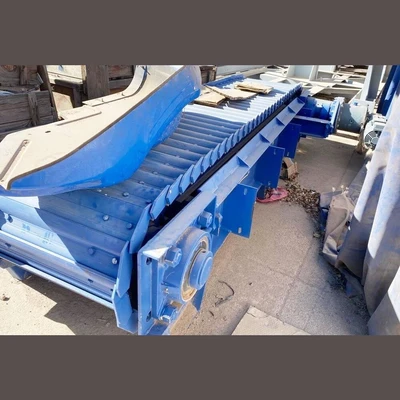

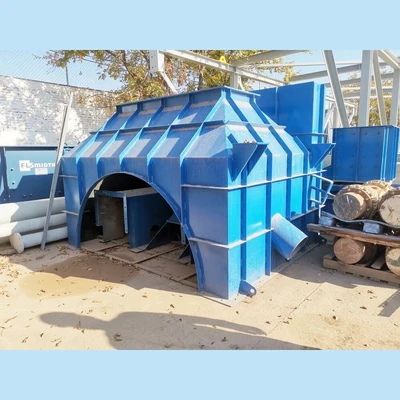

USED PETIMEX APRON 30" X 10'

Petimex 30in x 10ft Apron Feeder
Quantity: 2 Units

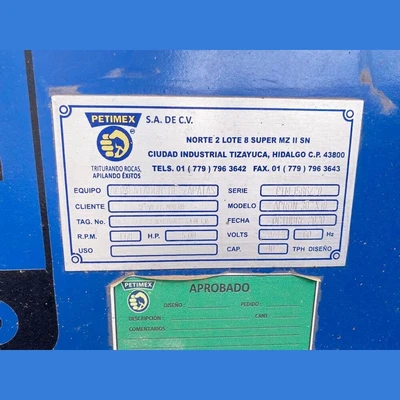

Make: Petimex
Model: Apron 30" x 10'
Series: PTM-1586/20
DOM: October 2020
Condition: Surplus, Never Used
Capacity: 40 TPH

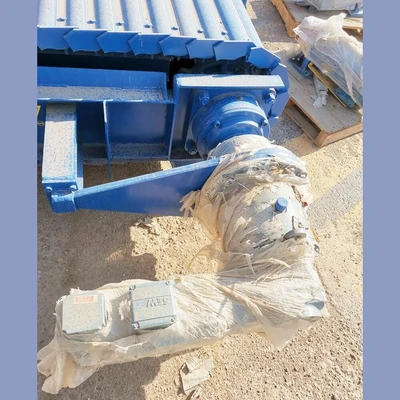

Drive: 5HP SEW Electric Motor
Final RPM: 1.60
Voltage: 220/440 Volt
Final RPM: 1.60
Voltage: 220/440 Volt
Chassis:
Manufactured in A-36 Structural Material
Channel Spar with Transversal Reinforcements
Fully Welded and Stress-Relieved
Two Rows of Heavy-Duty Chain with Hardened Pins and Rollers running on the Center Frame Support Rails and Sprockets at the Ends
Working Capacity: 16,000 lbs. Each Row
Manufactured in A-36 Structural Material
Channel Spar with Transversal Reinforcements
Fully Welded and Stress-Relieved
Two Rows of Heavy-Duty Chain with Hardened Pins and Rollers running on the Center Frame Support Rails and Sprockets at the Ends
Working Capacity: 16,000 lbs. Each Row

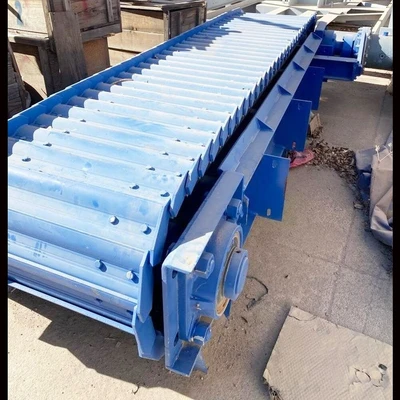

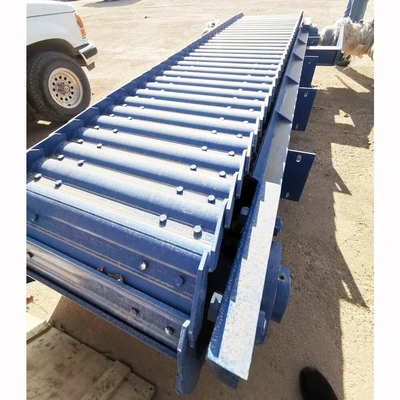

Shoes
Stamped from 1⁄2in Thick SA-36 Steel
Overlapped and Bolted to the Chains with High Grade Bolts
Stamped from 1⁄2in Thick SA-36 Steel
Overlapped and Bolted to the Chains with High Grade Bolts
Location: Mexico
