Duraquip 3 x 24 Belt Feeder
Overview
Specifications

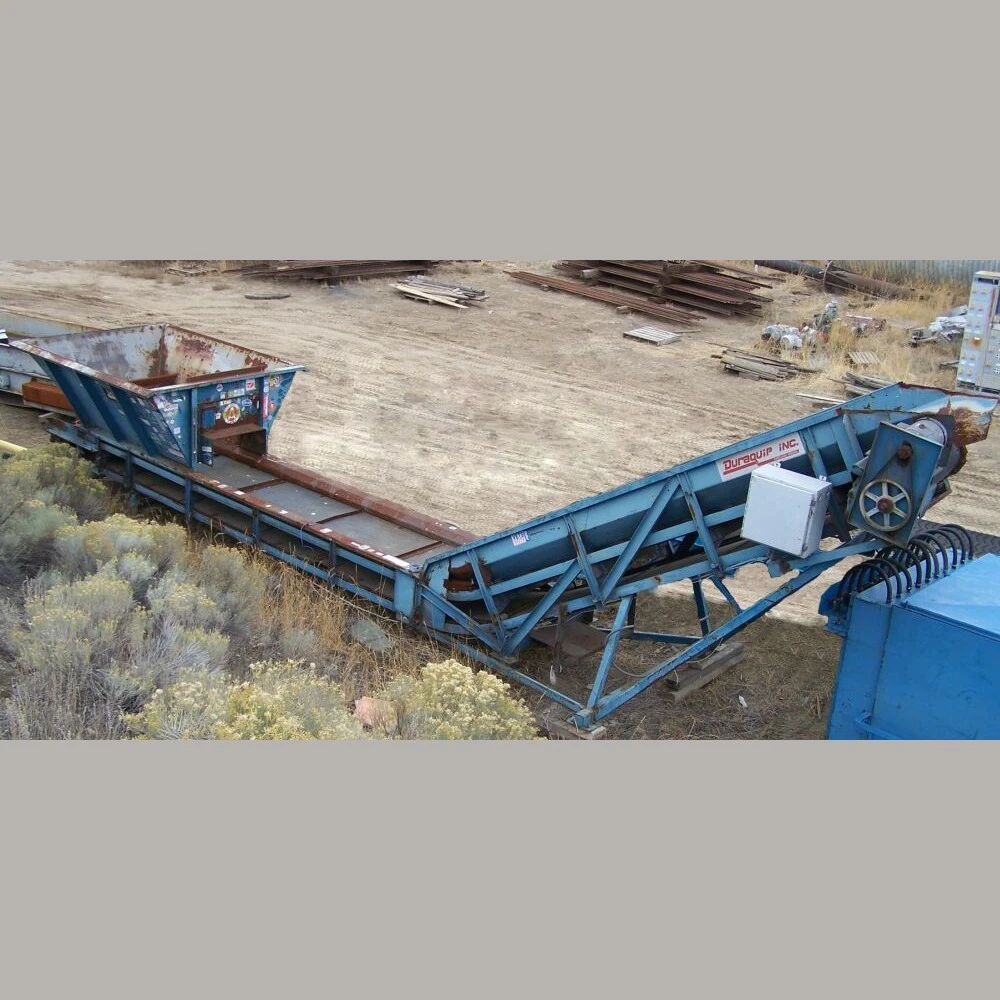

36in. Wide Recycling/Picking Conveyor

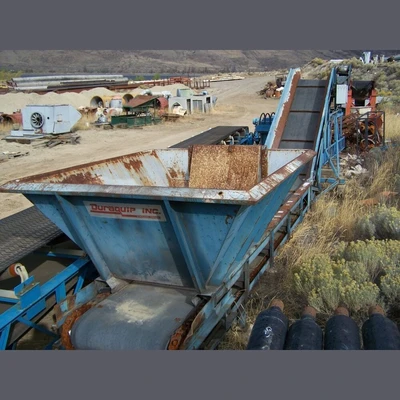

7ft. x 9ft. x 4ft. Deep Feed Hopper
24ft. Horizontal Section With 6in. High Sides
15ft. Angle Section With 19in. High Sides
Discharge Height approx. 8 feet
7ft. x 9ft. x 4ft. Deep Feed Hopper
24ft. Horizontal Section With 6in. High Sides
15ft. Angle Section With 19in. High Sides
Discharge Height approx. 8 feet
Discharge Height approx. 8 feet
3.5in. Angle & 3in. Channel Main Frame Construction

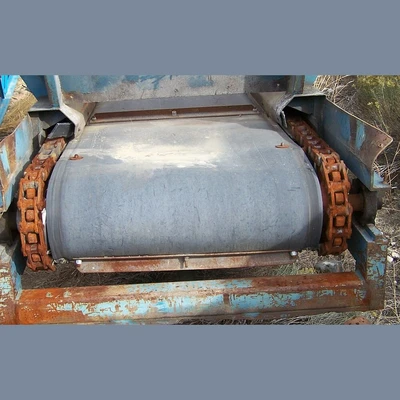

Chain Link drive on either side of conveyor belt

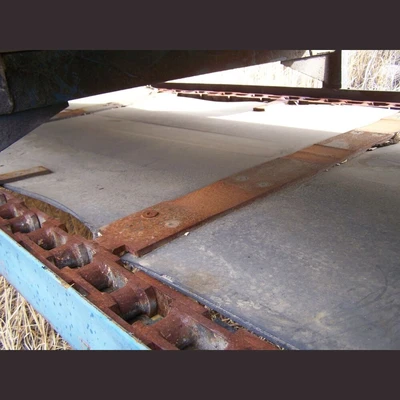

3in. Wide Drag Bar Attached across Belt to chain link
0.5in. Thick Belting
2in. Angle Iron Cleats Every 4ft. On Belt

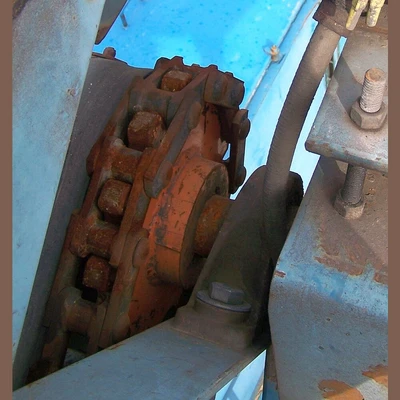

12in. Dia. Sprocket Drive

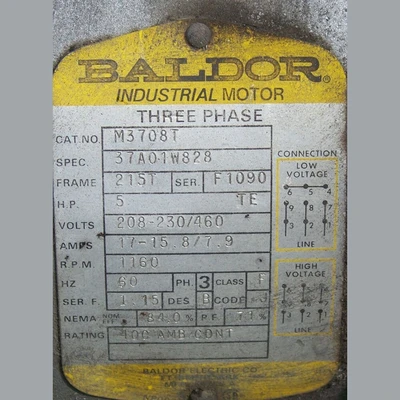

5HP 208/230/460 Volt, 1160 RPM Motor
Approx. Size 6 Shaft Mount reducer
Location: Savona, British Columbia, Canada
