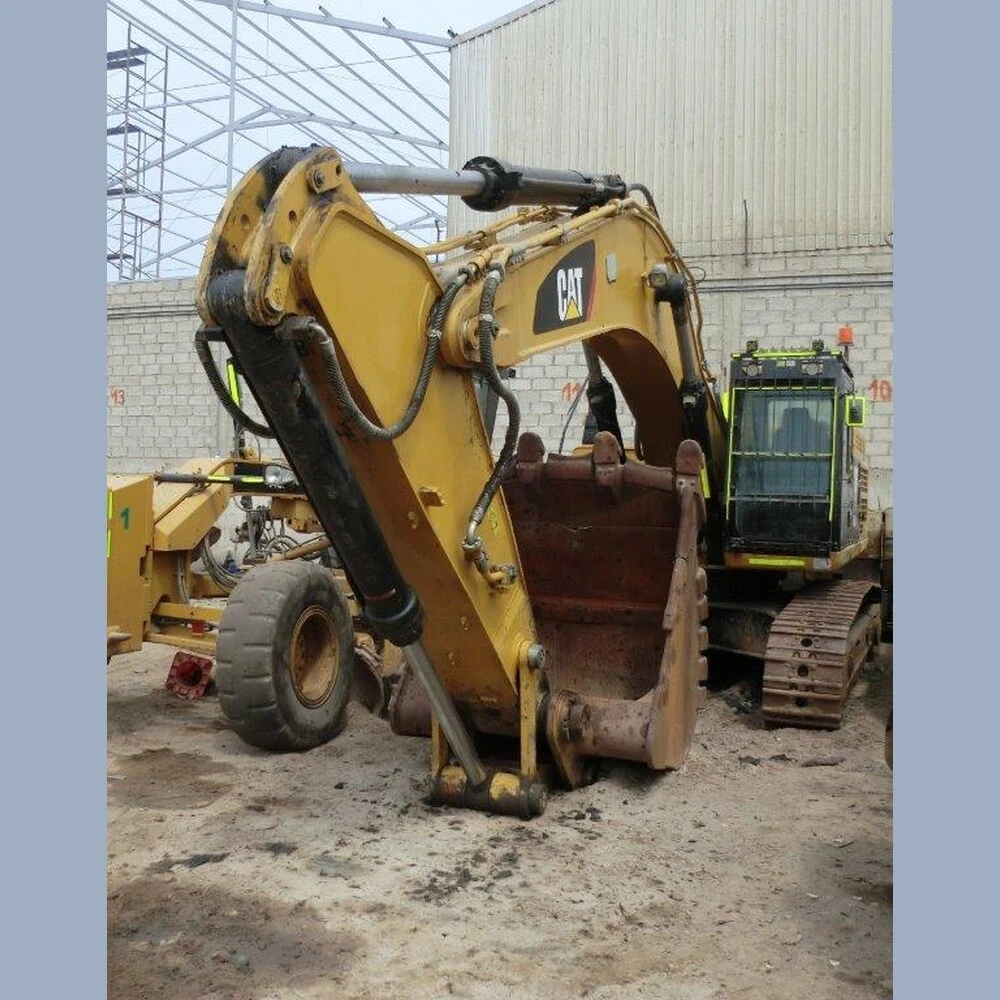

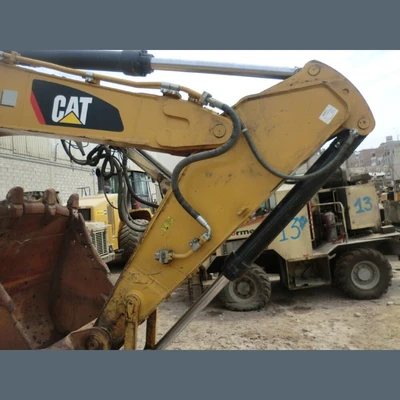

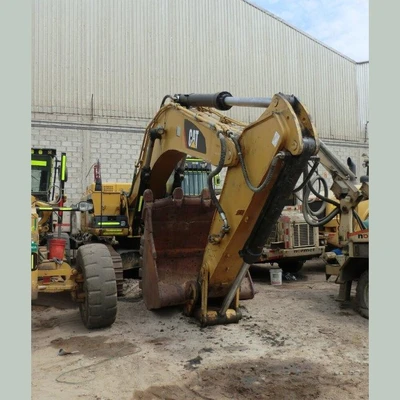

USED 2019 CATERPILLAR 349D2L

2019 CAT 349D2L Excavator
Make: Caterpillar
Model: 349D2L
Year: 2019
Hours: 7,459
Condition: Used, Reported in Good Condition
Engine: CAT C13 ACERT (387HP)
Blade: 3.21m³ Rock Blade
Long Undercarriage
Counterweight: 9.9 Tons
Track Shoe: Long, Fixed Gauge 900mm Triple Grouser
Weight: 105,600 Lbs.
General Model Specifications:
Engine:
Engine Model: Cat C13 ACERT
Engine Power (ISO 14396): 403HP (301kW)
Net Power (SAE J1349/ISO 9249): 387HP (289kW)
Bore: 130mm (5.11in)
Stroke: 157mm (6.18in)
Displacement: 12.5 Liters (762in³)
Rating: U.S. EPA Tier 2

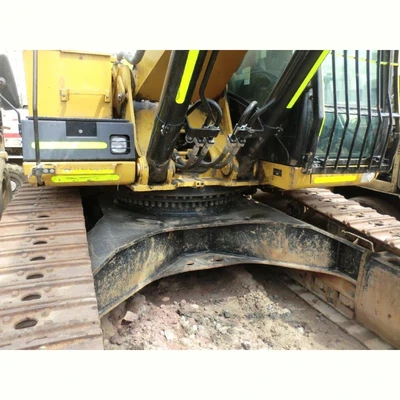

Track:
Number of Shoes (Each Side): 52
Number of Track Rollers (Each Side): 9
Number of Carrier Rollers (Each Side): 2
Swing Mechanism:
Swing Speed: 8.7 RPM
Swing Torque: 149 kN·m (109,896 lbf-ft)
Drive:
Gradeability 30°/70%
Maximum Travel Speed: 4.5 km/h (2.7 MPH)
Maximum Drawbar Pull: 338 kN (75,985 lbf)
Hydraulic System
Main System – Max Flow (Total): 734 L/min (193 Gal/min)
Max Pressure – Equipment: 35,000 kPa (5,076 PSI)
Max Pressure – Travel: 35,000 kPa (5,076 PSI)
Max Pressure – Swing:  31,400 kPa  (4,554 PSI)
Pilot System – Max Flow: 43 L/min (11.3 Gal/min)
Pilot System – Max Pressure: 4,110 kPa (596 PSI)
Engine:
Engine Model: Cat C13 ACERT
Engine Power (ISO 14396): 403HP (301kW)
Net Power (SAE J1349/ISO 9249): 387HP (289kW)
Bore: 130mm (5.11in)
Stroke: 157mm (6.18in)
Displacement: 12.5 Liters (762in³)
Rating: U.S. EPA Tier 2
Engine Model: Cat C13 ACERT
Engine Power (ISO 14396): 403HP (301kW)
Net Power (SAE J1349/ISO 9249): 387HP (289kW)
Bore: 130mm (5.11in)
Stroke: 157mm (6.18in)
Displacement: 12.5 Liters (762in³)
Rating: U.S. EPA Tier 2
Track:
Number of Shoes (Each Side): 52
Number of Track Rollers (Each Side): 9
Number of Carrier Rollers (Each Side): 2
Number of Shoes (Each Side): 52
Number of Track Rollers (Each Side): 9
Number of Carrier Rollers (Each Side): 2
Swing Mechanism:
Swing Speed: 8.7 RPM
Swing Torque: 149 kN·m (109,896 lbf-ft)
Swing Speed: 8.7 RPM
Swing Torque: 149 kN·m (109,896 lbf-ft)
Drive:
Gradeability 30°/70%
Maximum Travel Speed: 4.5 km/h (2.7 MPH)
Maximum Drawbar Pull: 338 kN (75,985 lbf)
Gradeability 30°/70%
Maximum Travel Speed: 4.5 km/h (2.7 MPH)
Maximum Drawbar Pull: 338 kN (75,985 lbf)
Hydraulic System
Main System – Max Flow (Total): 734 L/min (193 Gal/min)
Max Pressure – Equipment: 35,000 kPa (5,076 PSI)
Max Pressure – Travel: 35,000 kPa (5,076 PSI)
Max Pressure – Swing:  31,400 kPa  (4,554 PSI)
Pilot System – Max Flow: 43 L/min (11.3 Gal/min)
Pilot System – Max Pressure: 4,110 kPa (596 PSI)
Main System – Max Flow (Total): 734 L/min (193 Gal/min)
Max Pressure – Equipment: 35,000 kPa (5,076 PSI)
Max Pressure – Travel: 35,000 kPa (5,076 PSI)
Max Pressure – Swing:  31,400 kPa  (4,554 PSI)
Pilot System – Max Flow: 43 L/min (11.3 Gal/min)
Pilot System – Max Pressure: 4,110 kPa (596 PSI)
Location: South America
