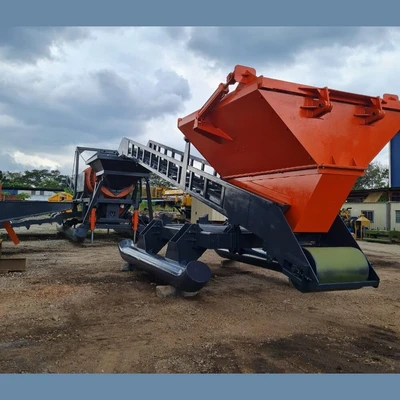

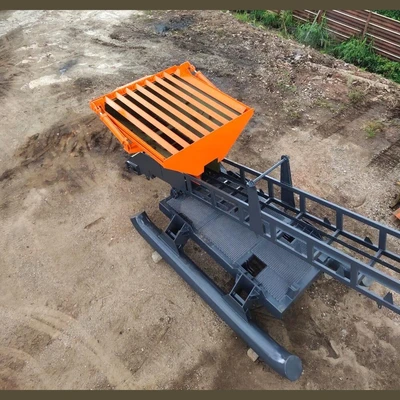

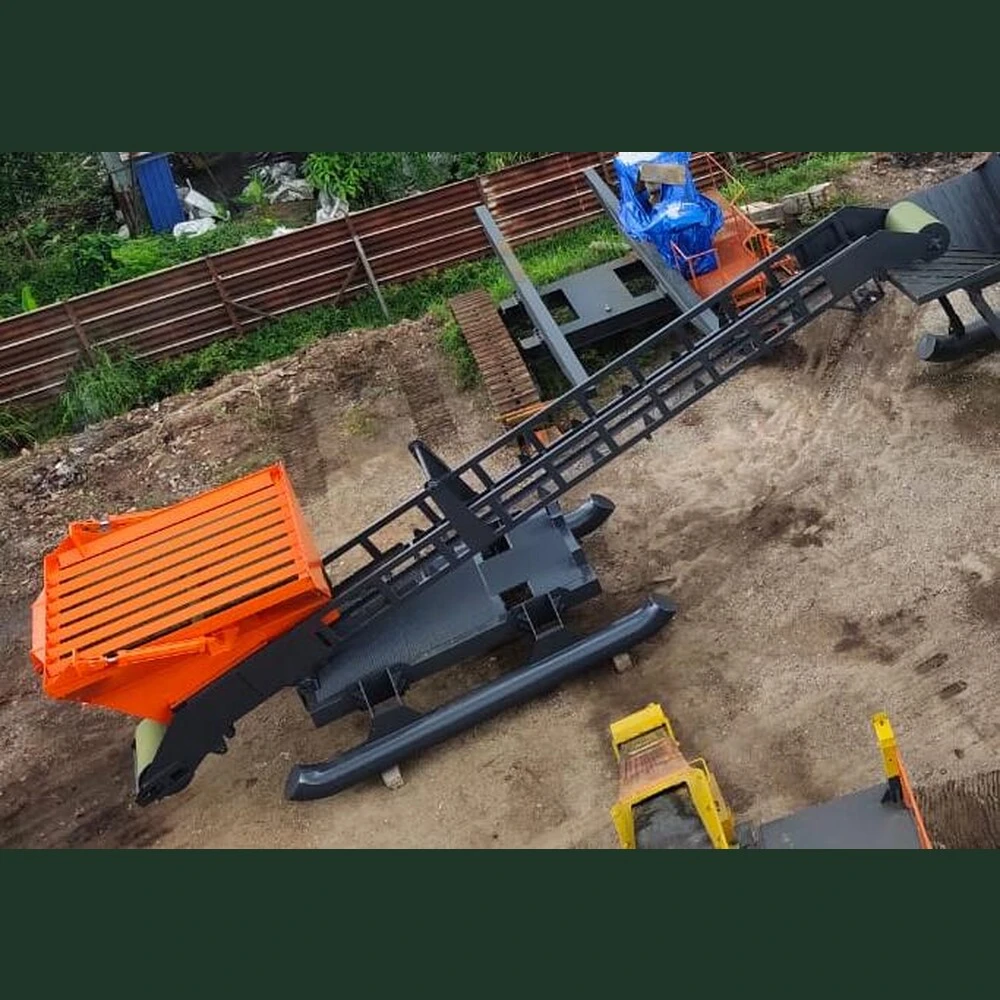

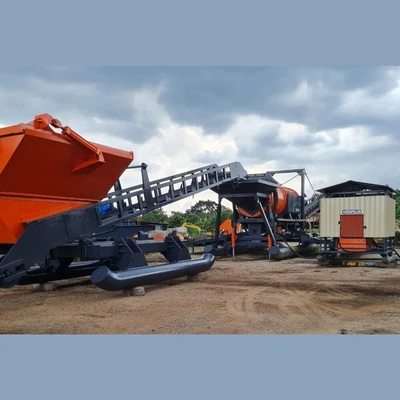

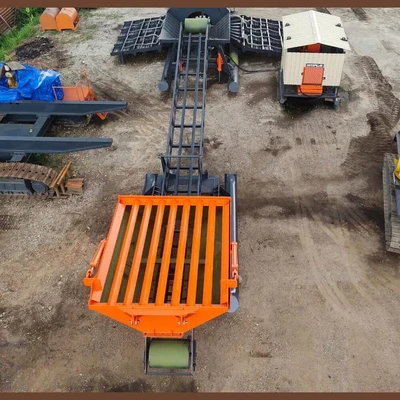

FB200 20m³ Belt Feeder

FB200 20m³ Belt Feeder
Model: FB200
Year: 2022
Condition: New
Bin Capacity: 20m³
Estimated Max Capacity: 200 TPH
Hopper Feed Area: 118in x 118in (3,000mm x 3,000mm)
Belt Width: 900mm (35.4in)
Conveyor Length: 12m (39.5ft)
Discharge Height: 3.6m (11.8ft)
Operating Weight: 7 Tons
Optional Manual Dumping Grizzly Available
Powered via Diesel Power Pack
630CC Hydraulic Motor
Gearbox Spec: 1in Chain Drive
630CC Hydraulic Motor
Gearbox Spec: 1in Chain Drive
Mounted on Large Diameter Skid
Overall Dimensions:
Length: 39.4ft (12,000mm)
Width: 13.1ft (4,000mm)
Height: 8.2ft (2,500mm)
Length: 39.4ft (12,000mm)
Width: 13.1ft (4,000mm)
Height: 8.2ft (2,500mm)
Ideal Feeder Option for ST300S Scrubber Trommel Wash Plant and ST200T Scrubber Trommel Wash Plant
