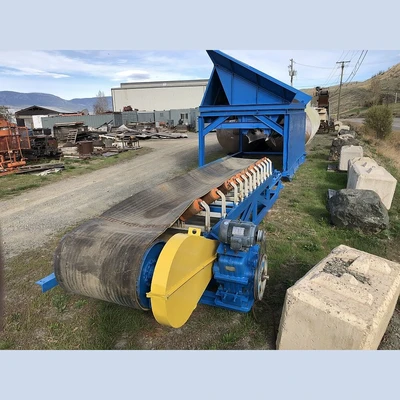

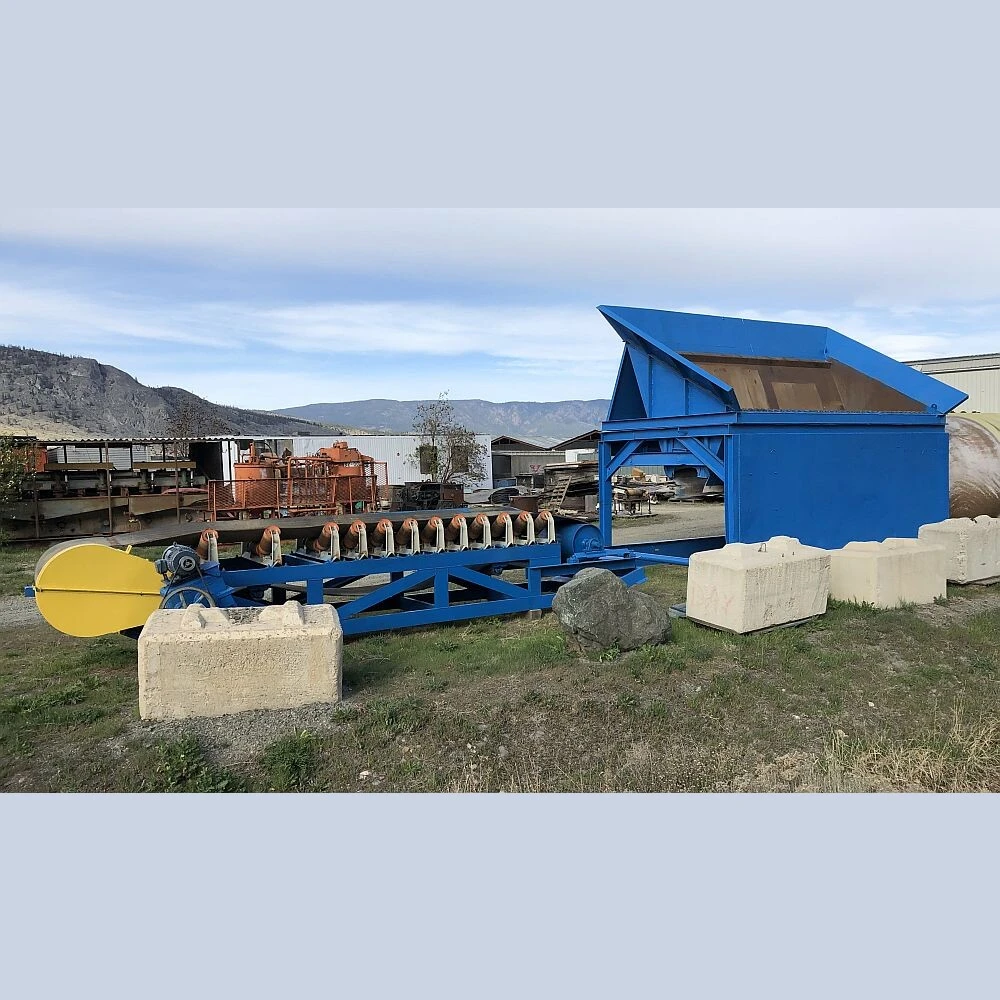

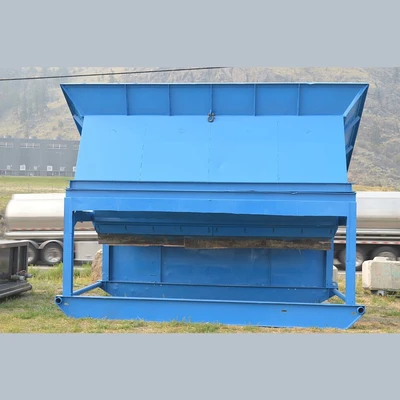

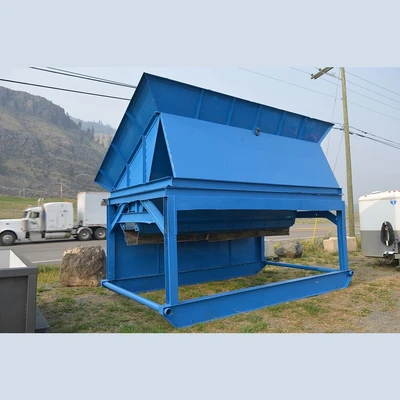

25 yard Hopper and Belt Feeder

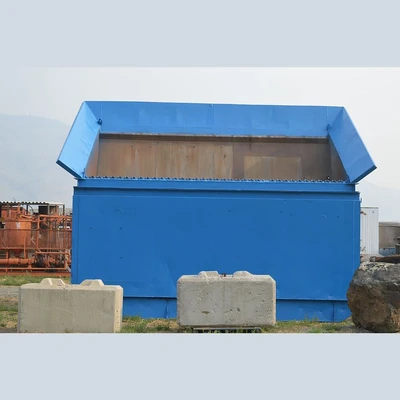

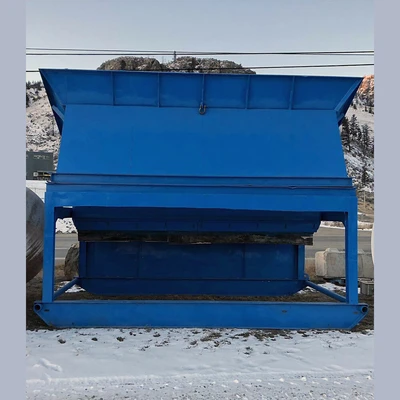

Feed Hopper
18 ft. long x 9 ft. high x 8 ft. 6 in. deep
Approx. 25 yard capacity
6" Wide flange frame
6" X 16" Steel skid base
Feed side of hopper sheeted in
18 ft. long x 9 ft. high x 8 ft. 6 in. deep
Approx. 25 yard capacity
6" Wide flange frame
6" X 16" Steel skid base
Feed side of hopper sheeted in
22 inch wide extension Wings on sides and front of Hopper
Made from 1/4 in. Steel Plate
Made from 1/4 in. Steel Plate

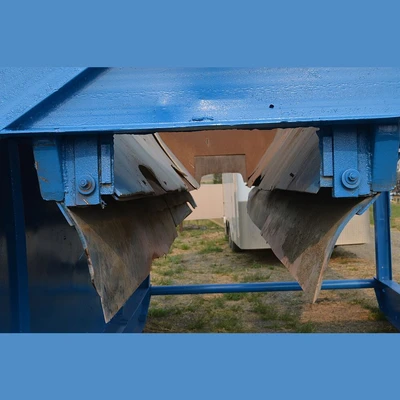

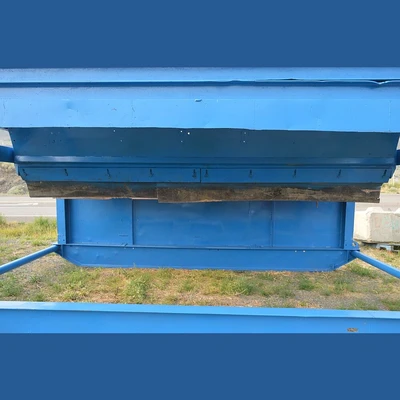

Bottom discharge:
24 in. wide x 17 ft. long
24 in. wide x 17 ft. long

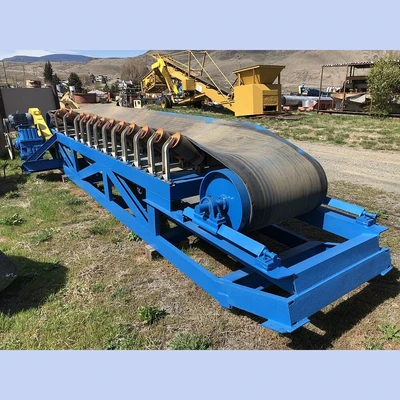

Belt Feeder
36 in. wide x 21.5 ft. long
24 in. Rubber Lagged Head Pulley
20 in. Steel Tail Pulley
12 in. Take ups.
FMC 6" Dia. 25° Idlers
3/4" Thick, 4 ply belting
36 in. wide x 21.5 ft. long
24 in. Rubber Lagged Head Pulley
20 in. Steel Tail Pulley
12 in. Take ups.
FMC 6" Dia. 25° Idlers
3/4" Thick, 4 ply belting

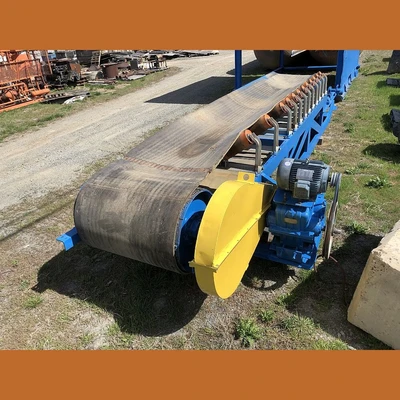

Belt driven by a Leeson 7.5 hp. Motor
208-230/460 Volt
1760 RPM
208-230/460 Volt
1760 RPM
 Through a heavy Duty parallel Shaft reducer
Chain drive to drum
Chain drive to drum
Location: British Columbia, Canada
