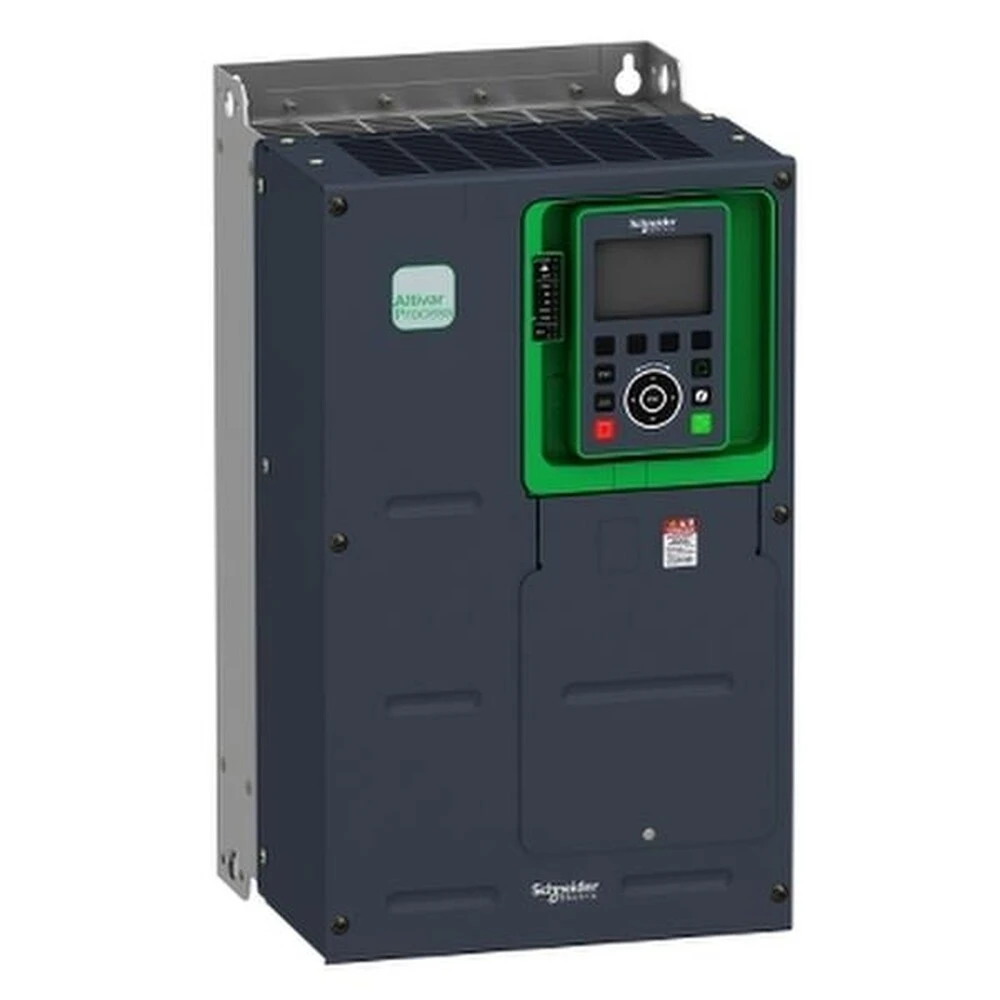

USED SCHNEIDER/TELEMANIQUE ATV-630-D30-Y6

Schneider/Telemecanique 40HP VFD
Make: Schneider/Telemanique
Model: ATV-630-D30-Y6
Condition: Unused
Rated Supply Voltage: 500-690 Volts
Type of Cooling: Forced Convection
Supply Frequency:
50-60Hz  (-5 - 5%)
500-690 Volts (-15 - 10%)
50-60Hz  (-5 - 5%)
500-690 Volts (-15 - 10%)
Maximum Horse Power Rating:
30HP - 500 Volt (Normal Duty)
25HP - 500 Volt (Heavy Duty)
40HP - 690 Volt (Normal Duty)
30HP - 690 Volt (Heavy Duty)
30HP - 500 Volt (Normal Duty)
25HP - 500 Volt (Heavy Duty)
40HP - 690 Volt (Normal Duty)
30HP - 690 Volt (Heavy Duty)
Line Current:
32.1 A - 500 Volt (Normal Duty)
32.8 A - 690 Volt (Normal Duty)
27.6 A - 500 Volt (Heavy Duty)
26 A - 690 Volt (Heavy Duty)
32.1 A - 500 Volt (Normal Duty)
32.8 A - 690 Volt (Normal Duty)
27.6 A - 500 Volt (Heavy Duty)
26 A - 690 Volt (Heavy Duty)
Prospective Line Isc: 70 kA
Apparent Power:
39.2 kVA - 690 Volt (Normal Duty)
31.1 kVA - 690 Volt (Heavy Duty)
39.2 kVA - 690 Volt (Normal Duty)
31.1 kVA - 690 Volt (Heavy Duty)
Continuous Output Current:
34 A - 4 kHz (Normal Duty)
29 A - 4 kHz (Heavy Duty)
34 A - 4 kHz (Normal Duty)
29 A - 4 kHz (Heavy Duty)
Speed Drive Output Frequency: 0.1-500Hz
Nominal Switching Frequency: 4 kHz
Output Voltage: <= Power Supply Voltage
Overall Dimensions:
Width: 9.69in
Height: 16.54in
Depth: 9.53in
Weight: 48.5 Lbs.
Width: 9.69in
Height: 16.54in
Depth: 9.53in
Weight: 48.5 Lbs.
Location: Savona, British Columbia, Canada
