USED LUWA SMS MLK4-0600/4500/90

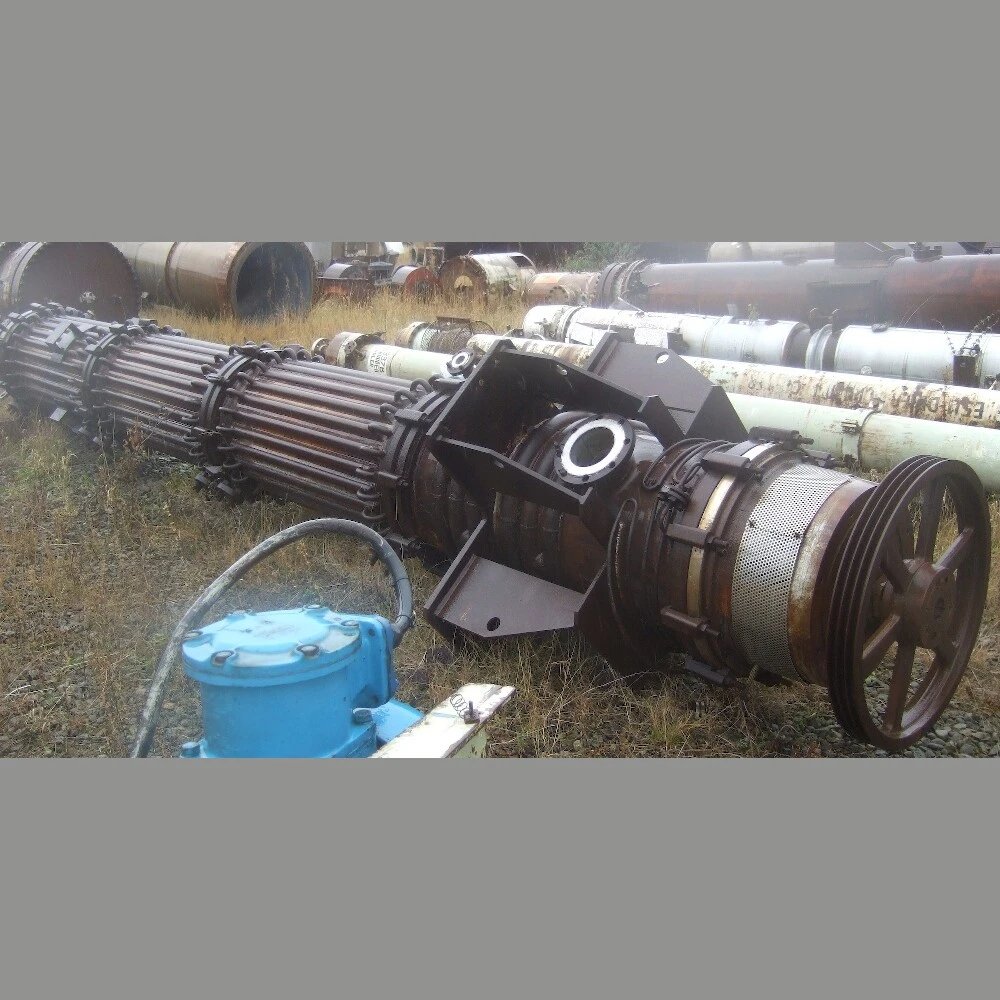

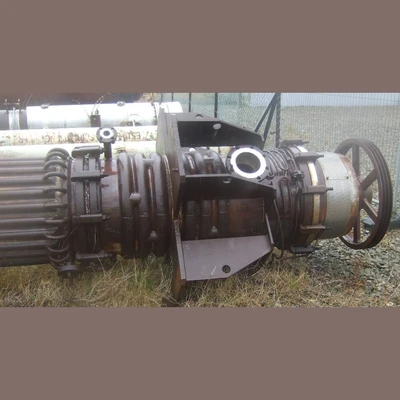

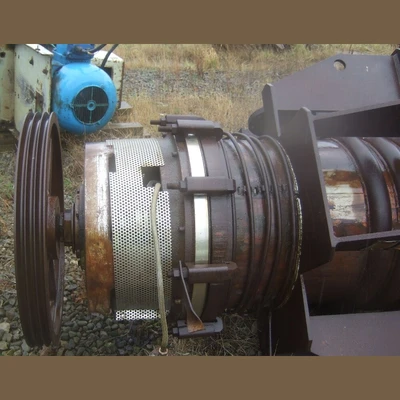

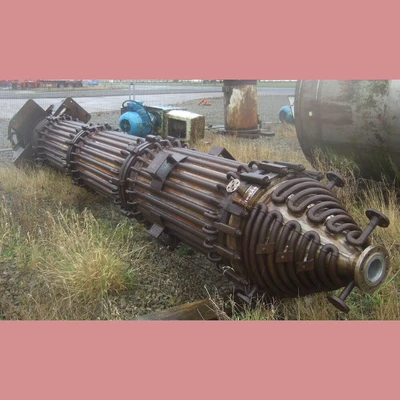

Luwa SMS MLK4 Evaporator
Make: Luwa SMS
Model: MLK4-0600/4500/90
Type: Wiped/Thin Film Evaporator
Condition: Used Condition
Construction: Hastelloy - C276
Orientation: Vertical
Evaporation Rate: 270lb/h (122.5kg/h)
Total Heat Transfer Surface Area: 53.8ft² (5m²)
Pressure: 14.5psi (1 bar)
Vacuum
Wipers Construction: Hastelloy C276
Jacket:
Type: Half Pipe/Limpet
Construction: Carbon Steel
Pressure: 40psi (2.76 bar)
Temperature: 482°F (250°C)
Type: Half Pipe/Limpet
Construction: Carbon Steel
Pressure: 40psi (2.76 bar)
Temperature: 482°F (250°C)

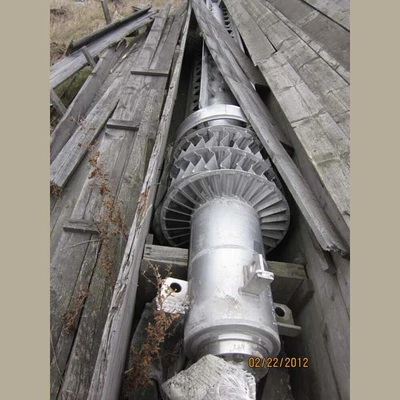

Rotor: 4-Fixed Blades

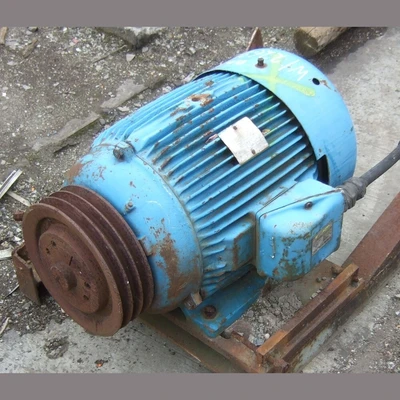

Drive: Electric Motor
Power Output: 24.8HP (18.5kW)
Rotation Speed: 975RPM
Voltage: 415 Volts
Frequency: 50Hz
Phase: 3-Phase
Power Output: 24.8HP (18.5kW)
Rotation Speed: 975RPM
Voltage: 415 Volts
Frequency: 50Hz
Phase: 3-Phase
Dimensions:
Diameter: 23.6in (600mm)
Height: 196.9in (5000mm)
Diameter: 23.6in (600mm)
Height: 196.9in (5000mm)
Location: UK
