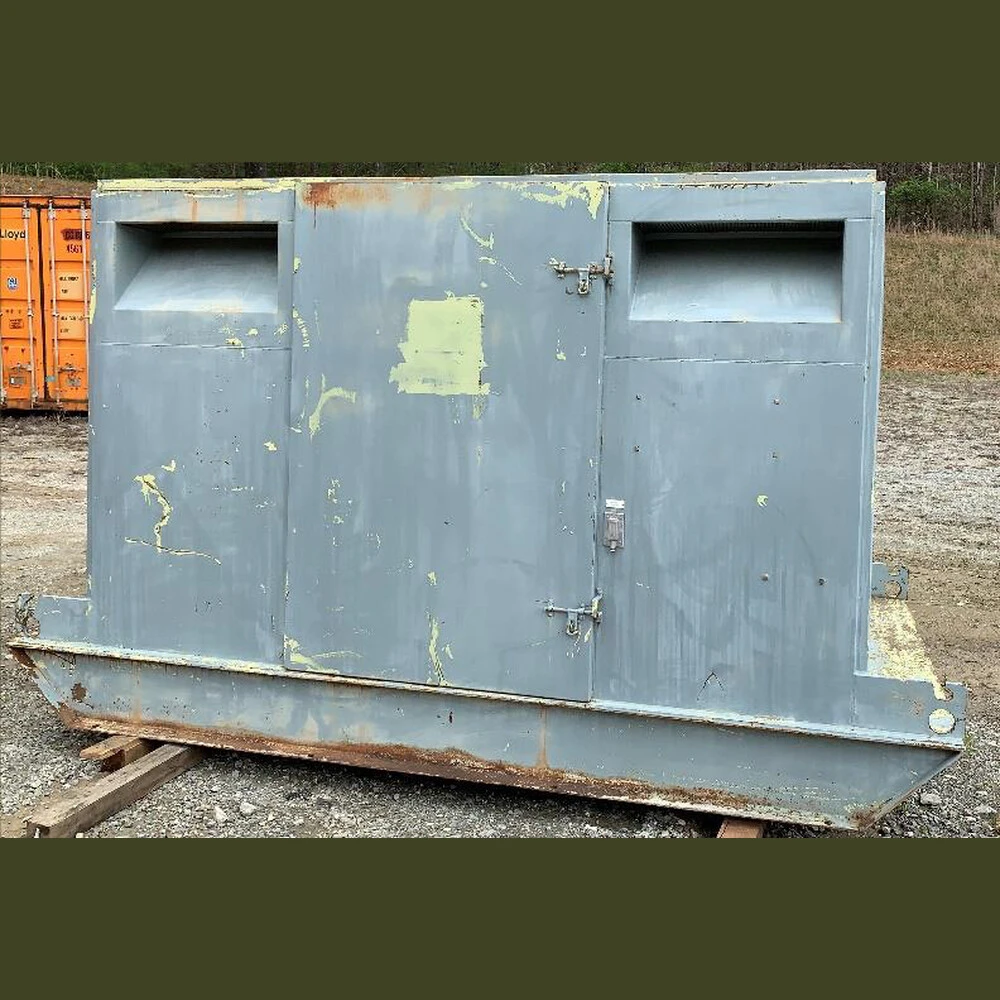

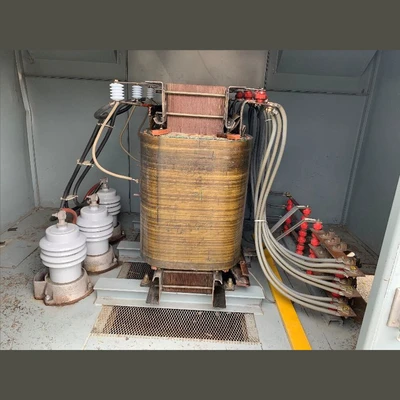

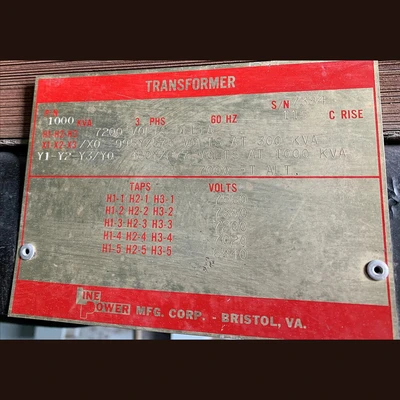

1000 kVA Outdoor Mine Transformer
7200 Volt Delta Primary
995 Y/575 Volt Secondary at 300 kVA
995 Y/575 Volt Secondary at 300 kVA
7200 Volt Delta Primary
480 Y/277 Volt at 1000 kVA @ 7000ft. Altitude
480 Y/277 Volt at 1000 kVA @ 7000ft. Altitude

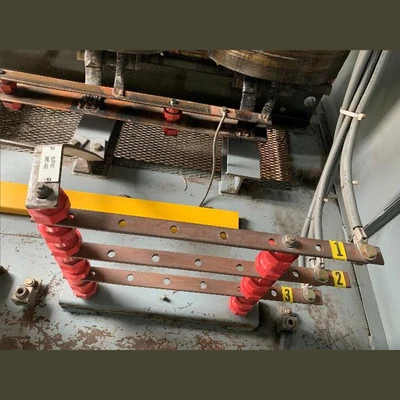

High Voltage Side 3 x 7500 V
Westinghouse CPL Type Surge Arrester
Westinghouse CPL Type Surge Arrester

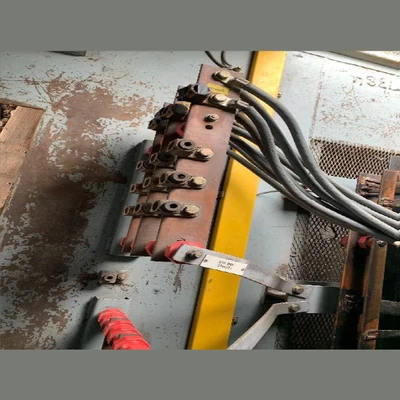

Neutral Side 100 Amps

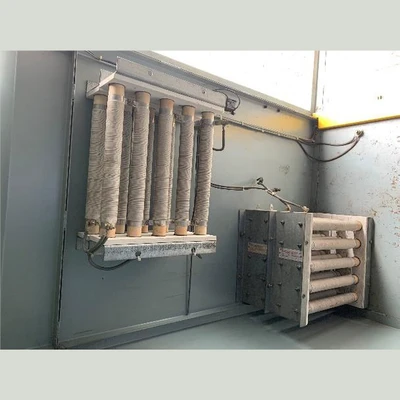

600 V Grounding Resister
600 V Grounding Resister
Overall Dimensions: 11ft. L x 7ft. W x 7ft. H
Wight: 8000 lbs.
Location: Eastern USA
