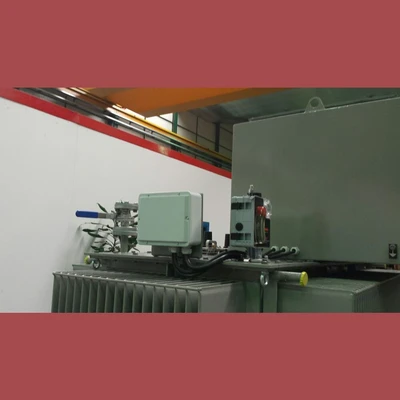

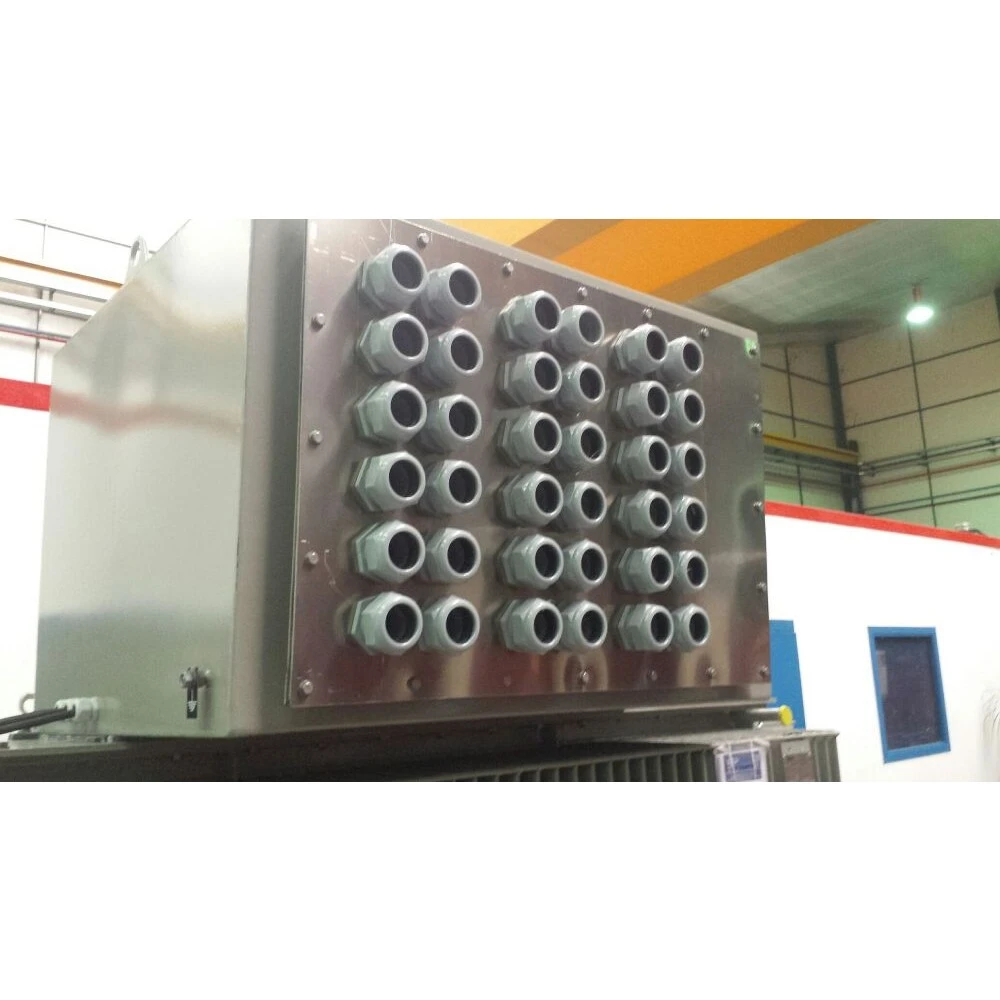

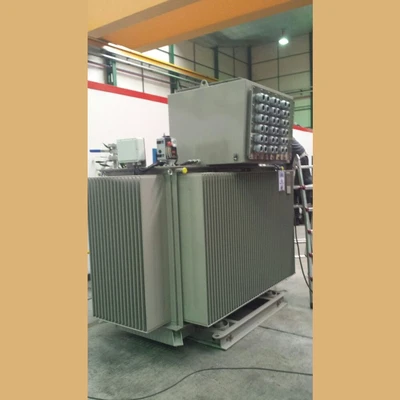

IMEFY 2200 kVA Oil Filled Transformer
Overview
Specifications
General Data:
Power Rating: 2200 KVA.
Primary Voltage: 33 kV.
Secondary Voltage: 420 V.
Tappings: ±2,5±5 %.
Vector Group: Dyn11.
Frequency: 50 Hz.
Cooling: ONAN.
Ambient Tª /Av. Winding Tª rise / Oil Tª rise 40ºC / 65 K / 60 K.
Insulation Levels HV (Vmax / LI / AC) 36 / 170 / 70 KV.
Insulation Levels LV (Vmax / LI / AC) 1,1 / 20 / 10 KV.
Material: HV/LV Aluminum / Aluminum.
Standards: IEC 60076-1.
(UE) Nº548/2014.
Power Rating: 2200 KVA.
Primary Voltage: 33 kV.
Secondary Voltage: 420 V.
Tappings: ±2,5±5 %.
Vector Group: Dyn11.
Frequency: 50 Hz.
Cooling: ONAN.
Ambient Tª /Av. Winding Tª rise / Oil Tª rise 40ºC / 65 K / 60 K.
Insulation Levels HV (Vmax / LI / AC) 36 / 170 / 70 KV.
Insulation Levels LV (Vmax / LI / AC) 1,1 / 20 / 10 KV.
Material: HV/LV Aluminum / Aluminum.
Standards: IEC 60076-1.
(UE) Nº548/2014.
Electrical Data
No-load losses: 1800 W.
Load losses to 75ºC: 21600 W.
Short-circuit voltage to 75ºC 6 %.
Sound power Lw(A): 61 dB(A).
No-load losses: 1800 W.
Load losses to 75ºC: 21600 W.
Short-circuit voltage to 75ºC 6 %.
Sound power Lw(A): 61 dB(A).
Approximate Dimensions & Weight
Length 2490 mm.
Width 1560 mm.
High 2450 mm.
Total weight 6650 Kg.
Length 2490 mm.
Width 1560 mm.
High 2450 mm.
Total weight 6650 Kg.
