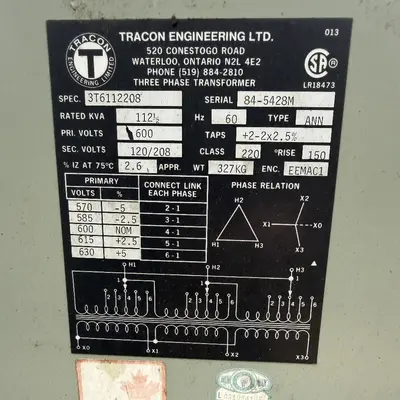

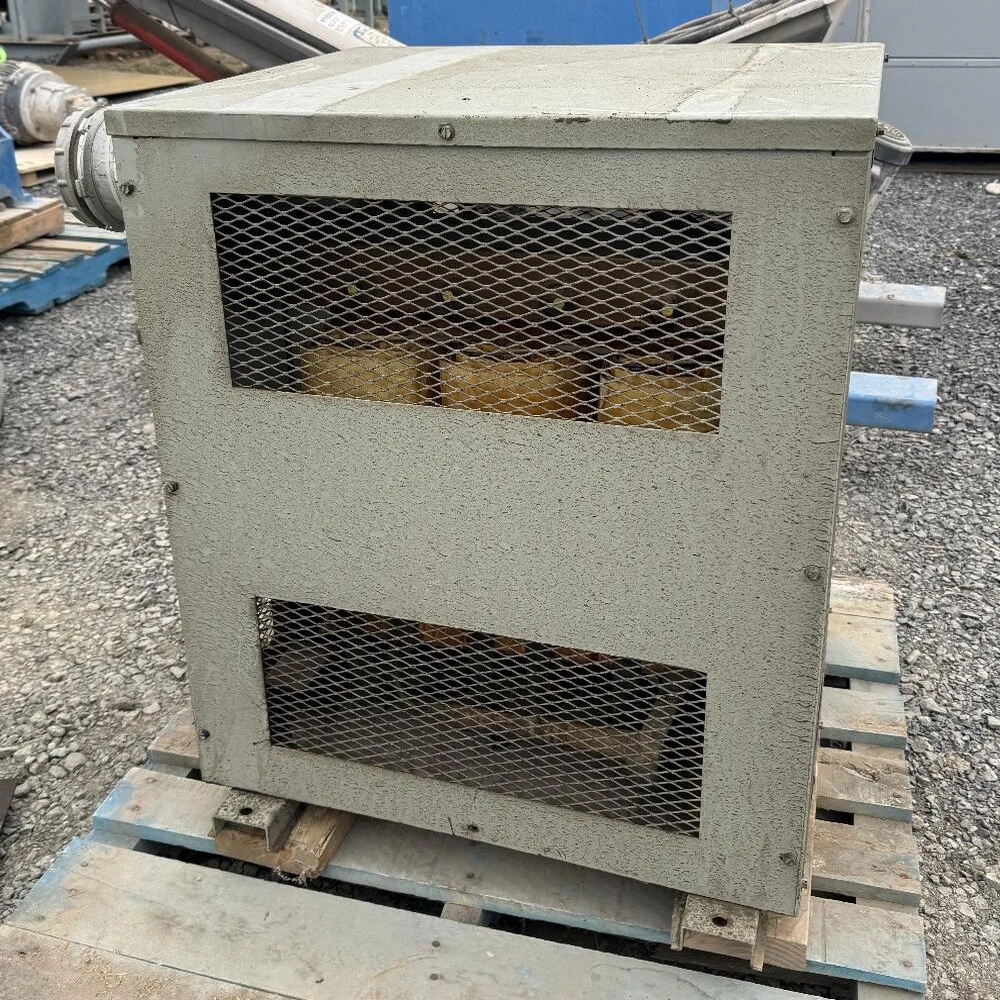

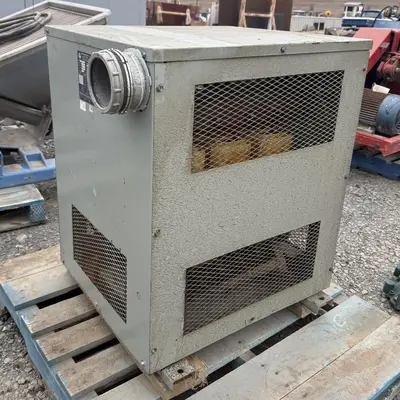

Tracon 112.5kVA Transformer
Make: Tracon Engineering Ltd.
Model/Spec: 3T6112208
Type: Transformer
Style: ANN
Serial: 84-5428M
Rated kVA: 112.5kVA
Primary Voltage: 600 Volt
Secondary Voltage: 120/208 Volt
Frequency: 60Hz
Phase: 3-Phase
Taps: +2-2x2.5%
Class: 220
Rise: 150°
% IZ at 75°C: 2.6 Approx.
Enclosure: EEMAC1
Weight: 327 kg
Overall Dimensions:
Length: 34in
Width: 30in
Height: 34in
Weight: 327 kg
Length: 34in
Width: 30in
Height: 34in
Weight: 327 kg
Location: Savona, British Columbia, Canada
