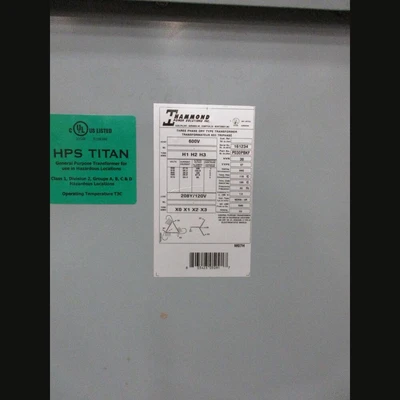

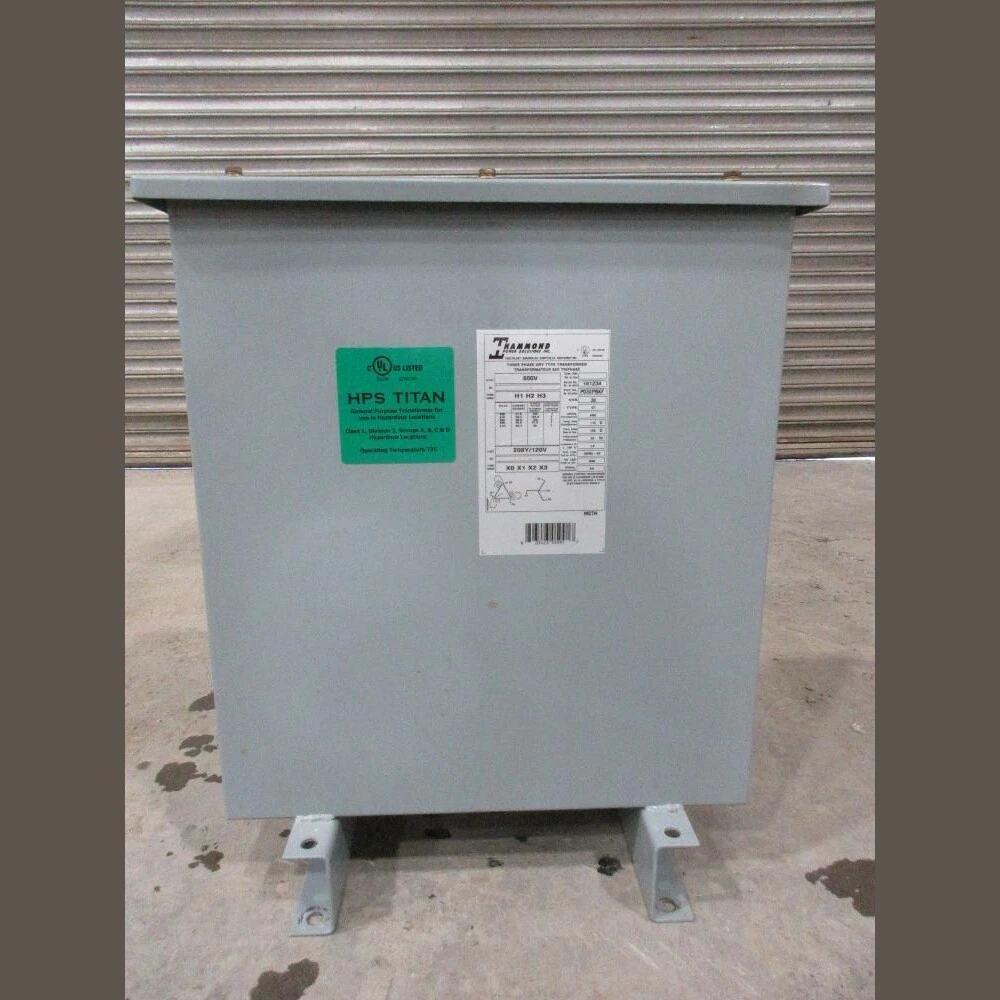

30kVA Hammond Transformer

30kVA Hammond Transformer

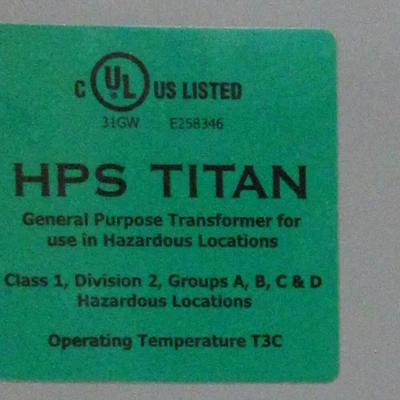

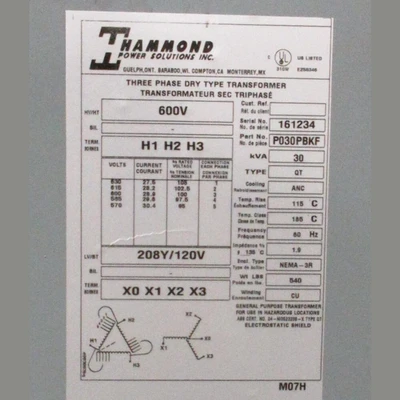

Make: Hammond HPS Titan
Model/Part #: P030PBKF
Serial #: 161234
kVA: 30kVA
Type: QT
Phase: 3-Phase
Frequency: 60Hz
Primary Voltage: 600 Volt
Secondary Voltage: 208Y/120
Enclosure: NEMA 3R
Windings: Cu
Overall Dimension:
Width: 20in
Depth: 14in
Height: 24in
Weight: 540 Lbs.
Location: Savona, British Columbia, Canada
