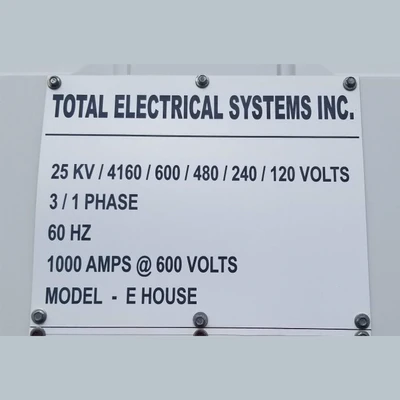

Total Electrical Systems Inc. 4160/600 Volt Substation

Model: E House
25 kV/4160/600/480/240/120 Volts
3/1 Phase
60 Hz
1000 Amps @ 600 Volts
Transformer #1
Primary: 25,000V
Secondary: 4160/2401V
1500 kVA
Primary: 25,000V
Secondary: 4160/2401V
1500 kVA
Transformer #2
Primary: 4160V
Secondary: 600/347V
1000 kVA
Primary: 4160V
Secondary: 600/347V
1000 kVA
Transformer #3
Primary: 600V
Secondary: 480/277V
300 kVA
Primary: 600V
Secondary: 480/277V
300 kVA
5KV Switch #1
Rated Voltage: 4.16KV
Rated Current: 400A
Rated Voltage: 4.16KV
Rated Current: 400A
5KV Switch #2
Rated Voltage: 4016KV
Rated Current: 400A
Rated Voltage: 4016KV
Rated Current: 400A
Hours: 2160
Year: 2013
Built in 20 ft. Sea-Can
Location: Western Canada
