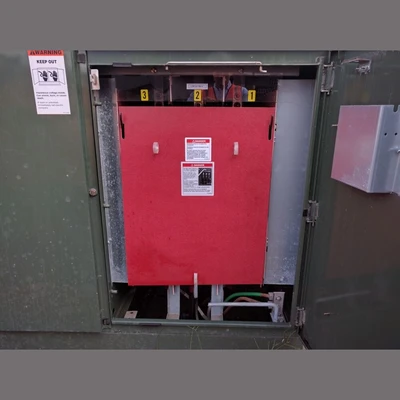

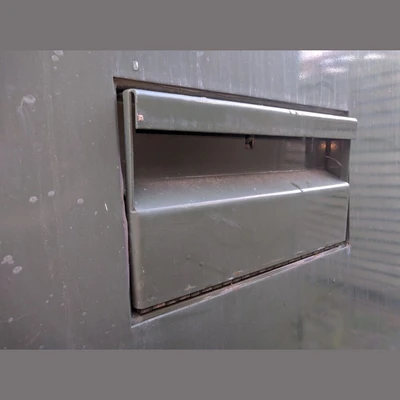

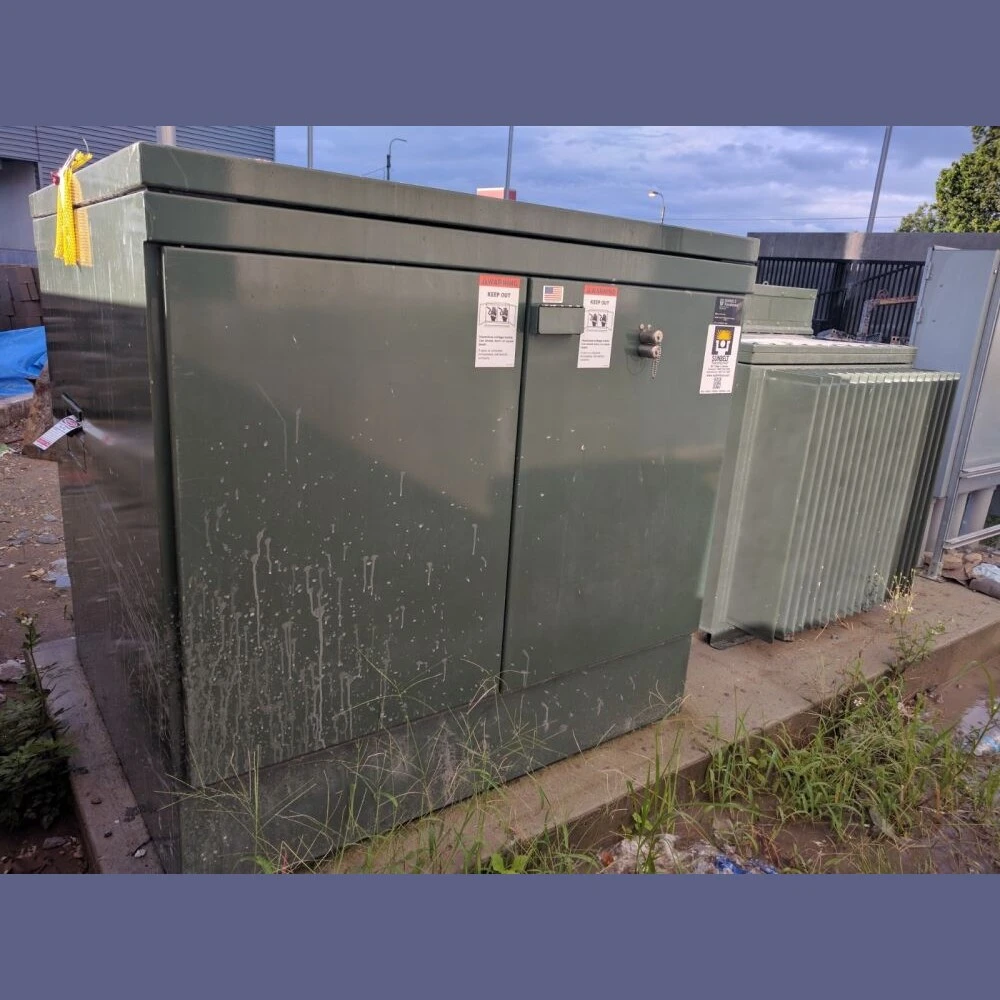

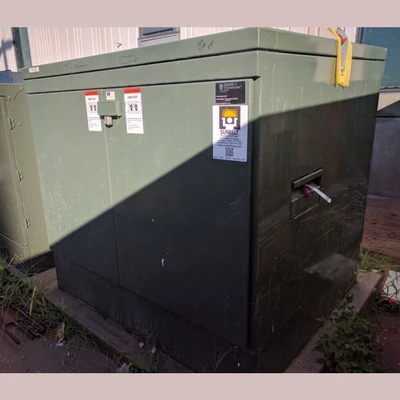

Sunbelt 15.5 kV Transformer

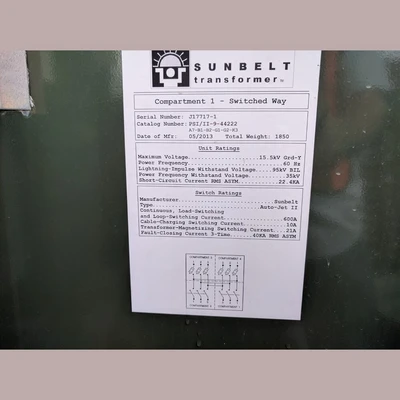

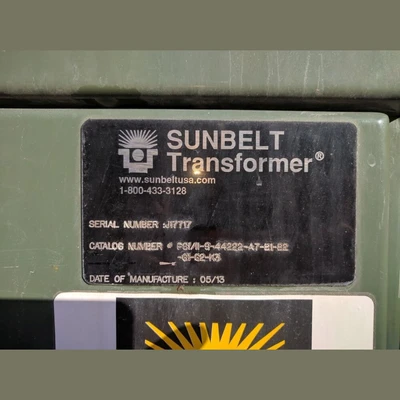

Serial Number: J17717 - 1.
Unit Ratings:
Maximum Voltage: 15.5 kV Grd-Y.
Power Frequency: 60 Hz.
Lightning Impulse Withstand Voltage: 95 kV BIL.
Power Frequency Withstand Voltage: 35 kV.
Short Circuit Current RMS ASYM: 22.4 KA.
Maximum Voltage: 15.5 kV Grd-Y.
Power Frequency: 60 Hz.
Lightning Impulse Withstand Voltage: 95 kV BIL.
Power Frequency Withstand Voltage: 35 kV.
Short Circuit Current RMS ASYM: 22.4 KA.

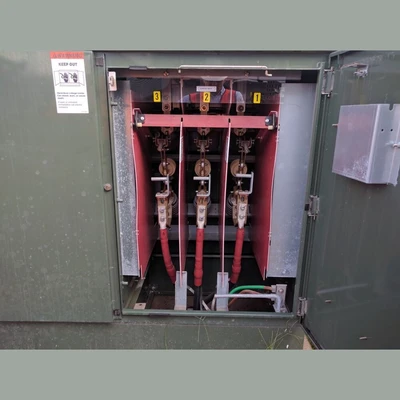

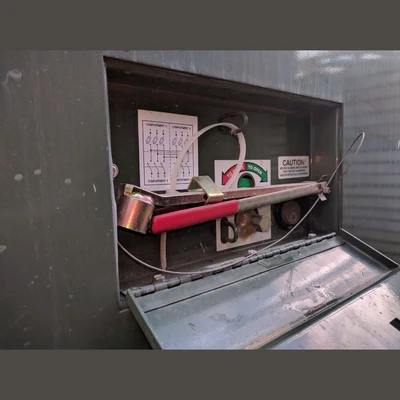

Switch Ratings:
Manufacturer: Suneblt.
Type:
Auto-Jet II
Continuous, Load-Switching.
Loop Switching Current: 600 A.
Cable Charging Switching Current: 10 A.
Transformer Magnetizing Swithcing Current: 21 A.
Fault Closing Current 3 Time: 40 KA RMS ASYM.
Manufacturer: Suneblt.
Type:
Auto-Jet II
Continuous, Load-Switching.
Loop Switching Current: 600 A.
Cable Charging Switching Current: 10 A.
Auto-Jet II
Continuous, Load-Switching.
Loop Switching Current: 600 A.
Cable Charging Switching Current: 10 A.
Transformer Magnetizing Swithcing Current: 21 A.
Fault Closing Current 3 Time: 40 KA RMS ASYM.
Total Weight: 1850.
Date of Manufacturing: May, 2013.
