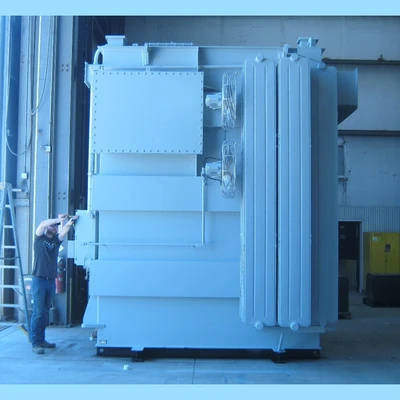

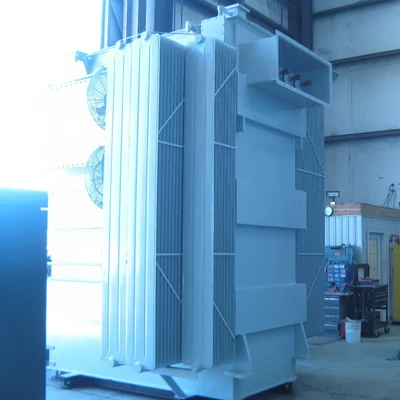

12MVA Federal Pacific Sub-Station Transformer

12MVA Federal Pacific Sub-Station Transformer
Make: Federal Pacific (Sunbelt Solomon)
Type: Substation Transformer
Year: 2018
Condition: Refurbished - 0 Hours Since Refurbishment
Capacity: 12MVA
Primary & Secondary Windings Replaced/Reassembly
High Voltage: 67000 Delta (350KV BIL)
Low Voltage: 12470Y/7200 (95KV BIL)
Tap Changer Adjustments Wiring/Diverter/Relay/Gaskets Replacement as Needed
Taps: +/-2 @ 2.5%
Coils, Insulation (Replaced) & Lamination (Inspected/Cleaned)
HV and LV Conductor: CU/CU Imps: 8.36%

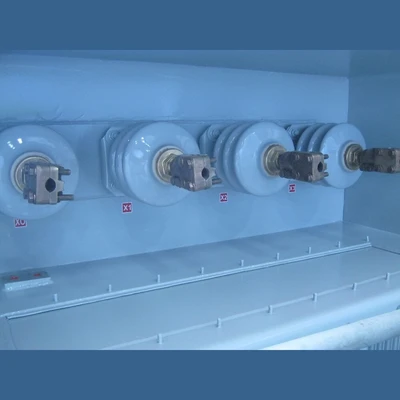

Bushings Replaced:
HV Bushings: Cover ANSI 1 LV
Bushings: Side ANSI 4 Phase 3
Frequency: 60Hz
HV Bushings: Cover ANSI 1 LV
Bushings: Side ANSI 4 Phase 3
Frequency: 60Hz
Testing/Certification 2018 – Available for New Test July 2025

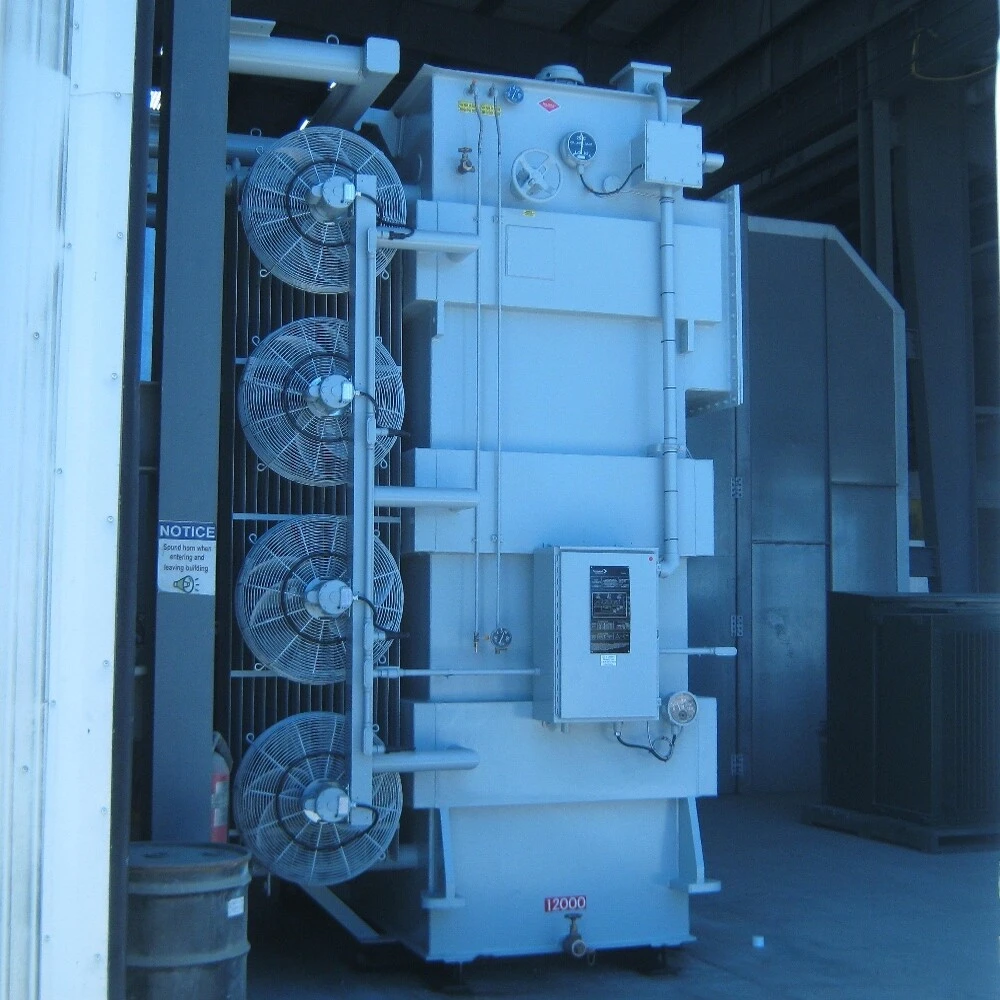

Coolant System Inspected/Refurbished as Needed
Fluid: Type II Mineral Oil
Weight: 86,986 Lbs.
Accessories:
Dial-Type Thermometer
Liquid Level Gauge
Pressure Relief Device
Pressure Vacuum Gauge
Drain and Sample Valve
Dial-Type Thermometer
Liquid Level Gauge
Pressure Relief Device
Pressure Vacuum Gauge
Drain and Sample Valve
Location: Southern USA
