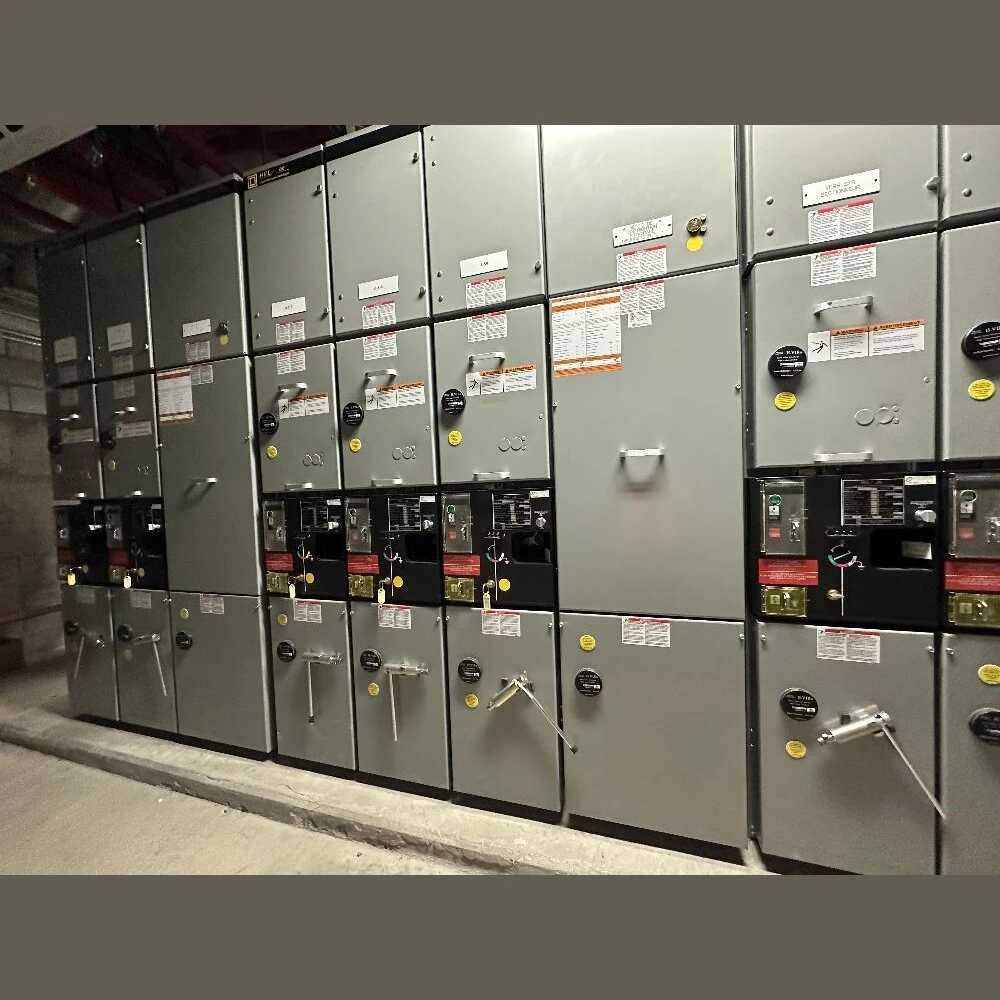

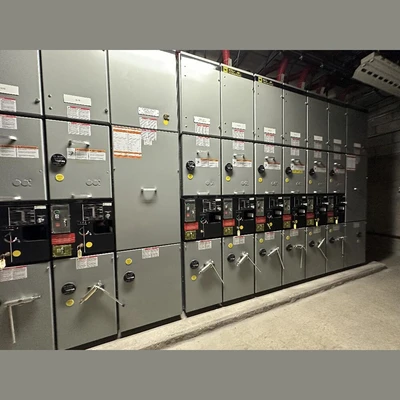

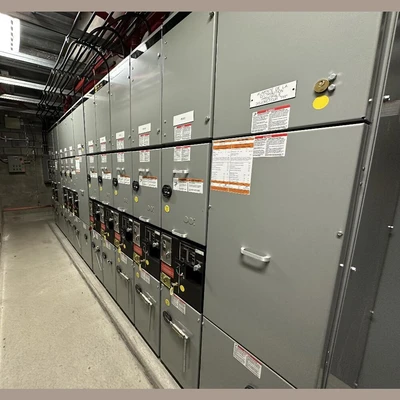

Square D 600 Amp HVL/cc Switchgear

Square D 600 Amp HVL/cc Switchgear
Quantity: (56) Units Available
Make: Square D
Type: HVL/cc Load Current Interrupter Switchgear
Year: 03/2011
Condition: Used Condition
Rated Max Voltage: 17.5kV
Impluse (BIL): 95kV
Power Frequency Withstand: 36kV
Frequency: 60Hz
SW Cont. Current: 600 Amp Sym.
Main Bus Cont. Current: 600 Amp Sym.
Momentary Current: 40kA Asym.
Short Time Current: 25kA Sym.
Time: 2 Seconds
Fault Close Current: 40kA Asym.
Motor: 125VDC
Close: 125VDC
Trip: 125VDC
Fuse Data:
CAT #: 175GXMSJD80E
Fuse Size: 80E
Max Direct Acting Trip: N/A
Integrated SW & Fuse Short Circuit Current: 65kA Sym.
CAT #: 175GXMSJD80E
Fuse Size: 80E
Max Direct Acting Trip: N/A
Integrated SW & Fuse Short Circuit Current: 65kA Sym.
Location:
