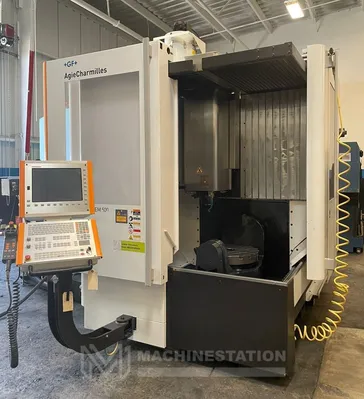

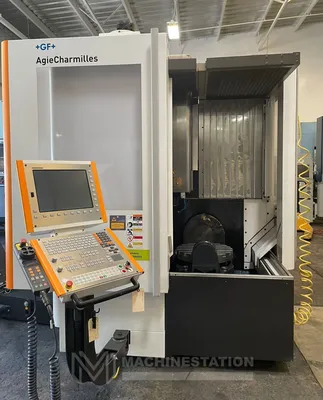

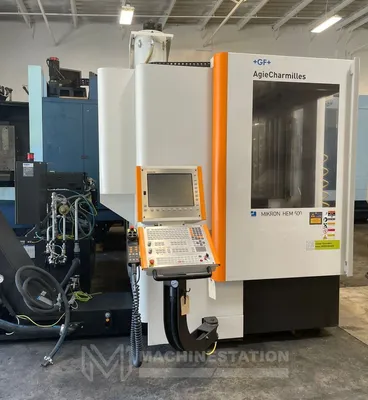

USED 2013 MIKRON HEM-500U
Specifications
| X | 19.69" | 500.13 mm |
|---|---|---|
| Y | 17.71" | 449.83 mm |
| Z | 15.75" | 400.05 mm |
| # Axis | 5 | 5 |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Control | CNC (Heidenhain iTNC 530) | CNC (Heidenhain iTNC 530) |
| Dimensions | 105″ x 128″ x 123″ High Approx. | 105″ x 128″ x 123″ High Approx. |
| Weight | 14,330 lbs | 14,330 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
SKU: 112762
Make: Mikron
Model: Hem 500U
Year: 2013 (Sold & Installed in 2016)
Features:

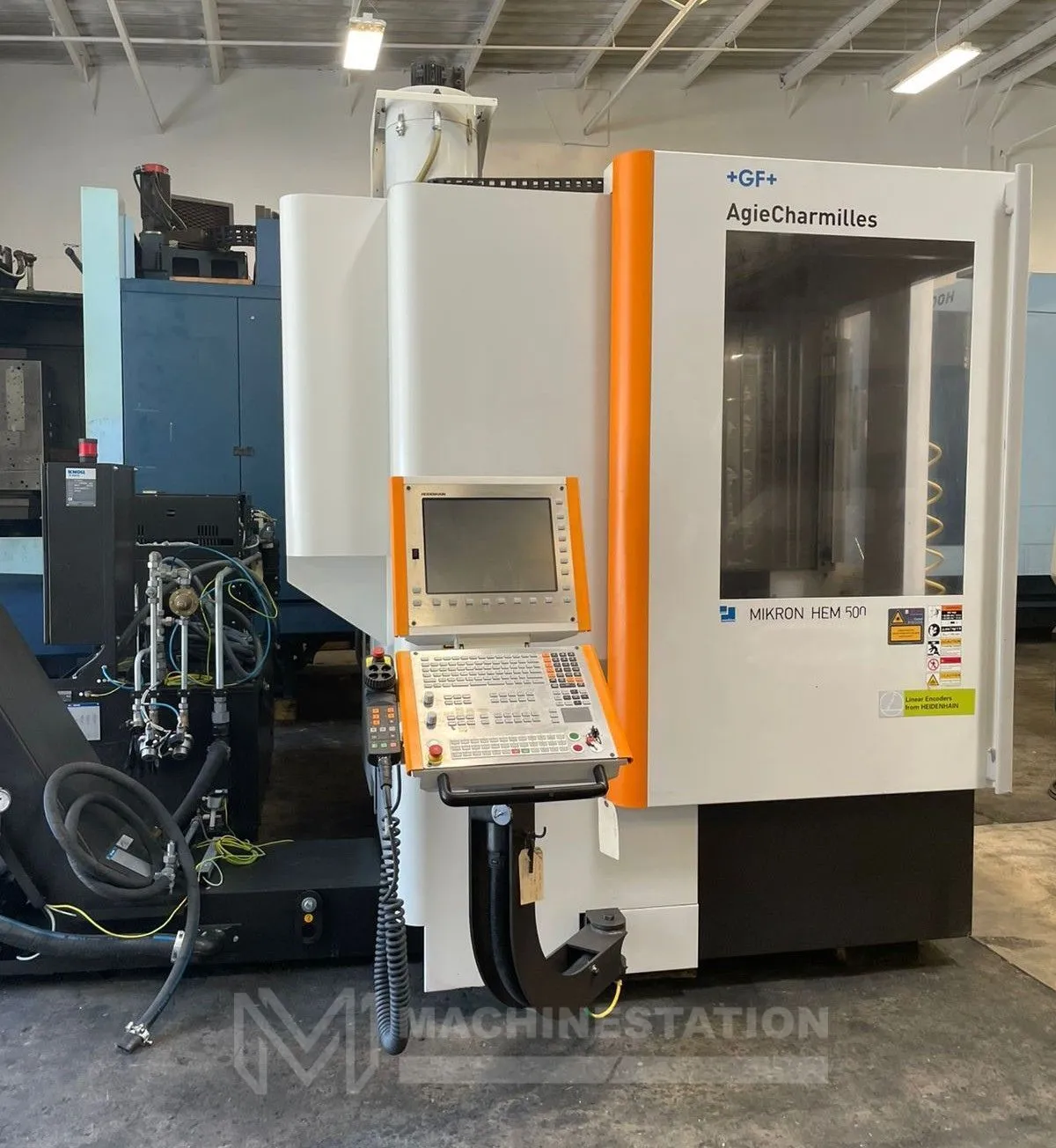

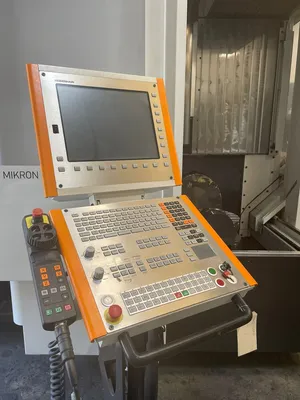

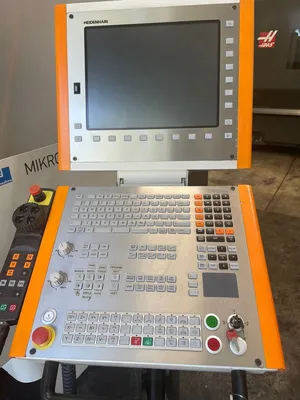

Heidenhain iTNC 530 CNC Control
5 Axis Machining (3+2)
Hem Rotary Tilting Table
12,000 RPM High Speed Spindle
30 Station Automation Tool Changer
Automatic Lubrication System

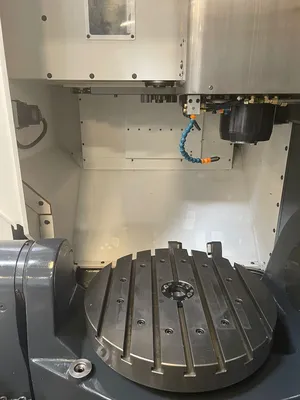

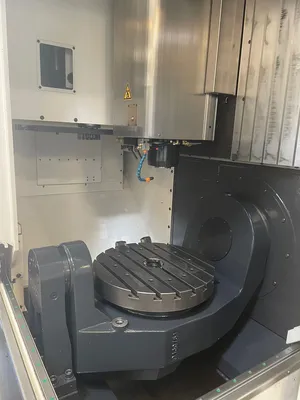

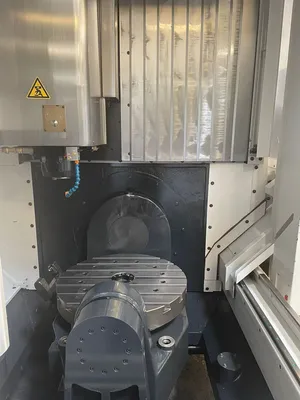

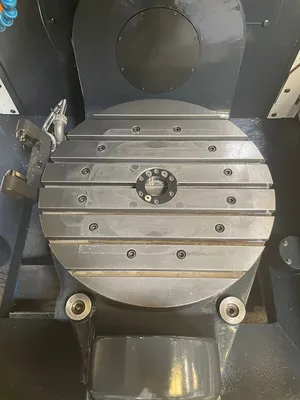

Rotary Swivel Table:
T-groove Table: 19.69″
Max Weight on Table: 661 lbs
Travel:
X Axis: 19.69″
Y Axis: 17.71″
Z Axis: 15.75″
A Axis: –65° / +110° ( Table Tilt )
C Axis: 360° ( Table Rotate )
Spindle:
Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 25 HP
Feed rates:
Rapid X Y & Z: 1181 Inch Per Minute
Rapid A & C : 17 & 28 Round Per Minute
Tool changer:
Capacity: 30 Tools
Taper: 40
Max Tool Diameter: 2.55″
Max Tool Length: 8.62″
Max Tool Weight: 5.51 lbs.
Tool Change Time: 9 Seconds
General:
Air Required: 100 psi, 4 scfm
Power: 400v / 50/60 Hz / 3-Phase / 40 kw
Machine Dimensions: 105″ x 128″ x 123″ High High Approx.
Weight: 14,330 lbs
Equipped With
Through Spindle Coolant – 300 psi
Oil Mist Spray Unit
Mist Extraction Unit

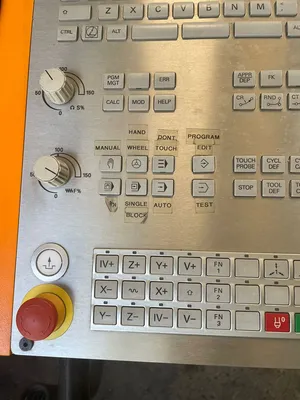

MPG Handwheel Control
Renishaw Probing System (Probe Needed)
BLUM Laser Tool Setter

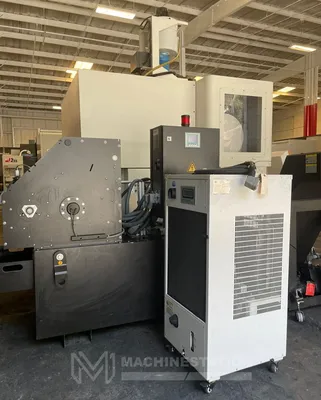

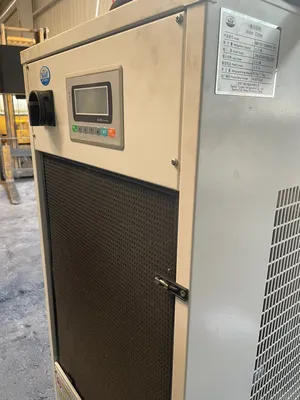

Spindle Chiller Unit

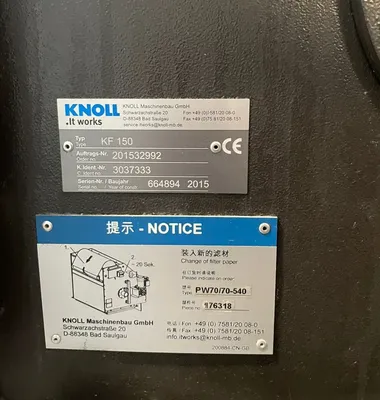

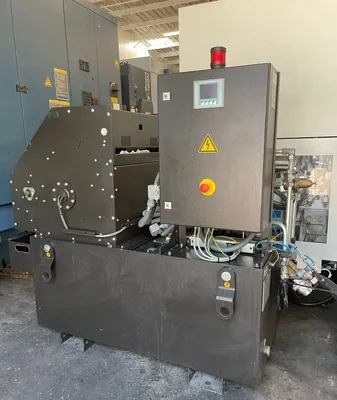

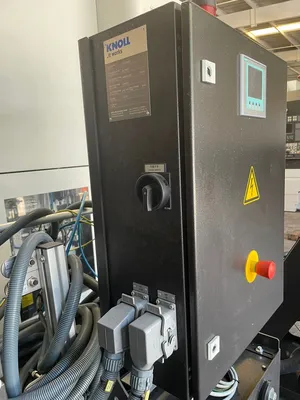

Coolant Filtration System – Paper Type
Coolant Tank
Chip Conveyor
